GT 2542 (14A-2D2G010) - Cub Cadet 42" Garden Tractor (2009 & After) Hydro Transmission Parts Diagram

42" Garden Tractor

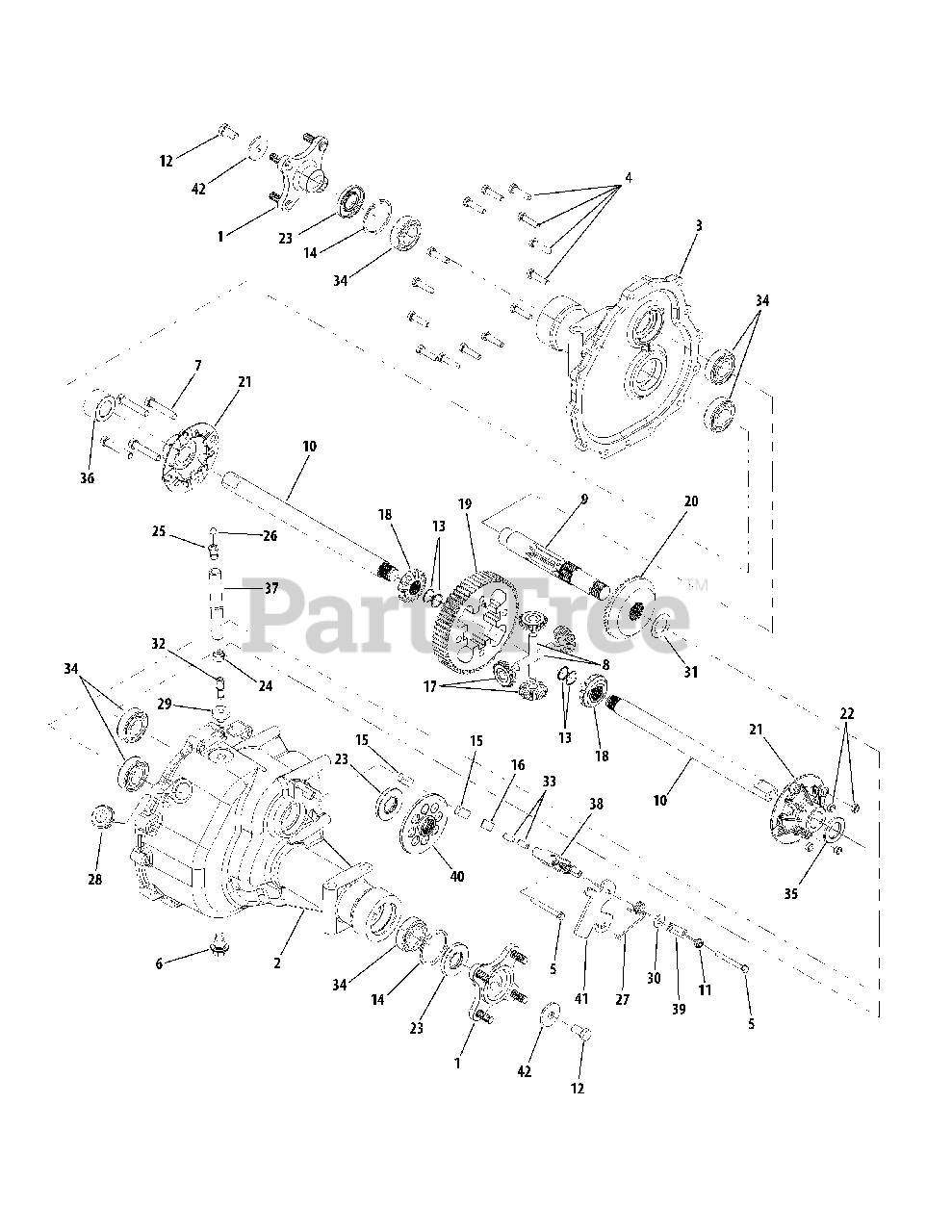

Hydro Transmission Parts Diagram

  • Title

1

Cub Cadet 918-04317

Hub Ass’y, Wheel

$116.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 919-3071A

Housing, RH Transmission

$843.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 619-3072

Housing, LH Transmission

$477.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0573

Screw, Hex Cap Lock, 5/16-18 x 1.25 GR5

$6.49

$

In Stock, Qty 12

0

5

Cub Cadet 710-1206

Screw, Hex Wash Hd. Tapp, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

6

Cub Cadet 710-1633

Screw, Plug, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-3144

Screw, Hex Cap Lock, 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 7

0

8

Cub Cadet 711-1052A

Shaft, Cross, .50 x 3.005

$33.99

$

In Stock, only 1 left!

0

9

Cub Cadet 711-1385A

Shaft, Output, 9T

$180.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 911-04233

Shaft, Axle

$99.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 912-0273

Nut, Hex Nylon Lock, 5/16-24

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3119

Screw, Hex Cap Lock, 3/8-16 x .75 GR5

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet 716-04032

Ring, Retaining

$8.49

$

In Stock, only 3 left!

0

14

Cub Cadet 716-0204

Ring, Retaining

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 917-0678

Pad, Brake

$7.49

$

In Stock, Qty 5

0

16

Cub Cadet 917-0682

Plate, Puck

$9.99

$

In Stock, Qty 9

0

17

Cub Cadet 917-1446B

Gear, Miter, 10T

$16.99

$

In Stock, only 4 left!

0

18

Cub Cadet 917-04102

Gear, Miter, 14T

$23.99

$

In Stock, only 2 left!

0

19

Cub Cadet 917-1568A

Gear, Differential Spur, 60T
(Superseded to 917-1568)

$153.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 717-3449

Gear, Bevel, 54T

$427.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 919-0375A

Housing, Differential w/Thru Holes

$50.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 912-3020

Nut, Hex Insert Jam GR5, 3/8-16

$6.49

$

In Stock, Qty 10

0

23

Cub Cadet 721-0523

Seal, Oil, 1.0 x 2.047 x .2755

$15.99

$

In Stock, only 1 left!

0

24

Cub Cadet 926-0324

Clamp, Hose

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-1480

Vent, Plastic

$15.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-1481

Cap, Plastic Vent

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-0925

Spring, Torsion

$9.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 735-0277A

Grommet, Rubber, .75 x 1.063

$10.99

$

In Stock, only 2 left!

0

29

Cub Cadet 735-0279

Grommet, Rubber, .362 x .56

$7.49

$

In Stock, only 2 left!

0

30

Cub Cadet 736-0371

Washer, Flat, .343 x .88 x .062

$4.49

$

In Stock, only 3 left!

0

31

Cub Cadet 736-0615

Washer, Thrust, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

32

Cub Cadet 737-3092

Fitting, Tube

$14.99

$

In Stock, only 1 left!

0

33

Cub Cadet 941-0343

Pin, Brake Actuating
(Superseded to 741-0343)

$

$

Not available

34

Cub Cadet 741-3114

Bearing, Ball (6205-1)

$26.99

$

In Stock, only 3 left!

0

35

Cub Cadet 750-3346

Spacer, Axle, 1.007 x 1.665 x .141

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 750-3358

Spacer, Axle, 1.007 x 1.665 x .989

$21.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 751-0588-8

Tube, Transmission Breather

$12.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 761-0207A

Yoke, Brake

$40.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 761-0208

Bracket, Brake Anti Rotation

$7.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 761-0215

Disc, Brake

$20.99

$

In Stock, only 1 left!

0

41

Cub Cadet 761-3074

Arm, Brake Actuater

$24.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 936-0227

Washer, Flat, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

Cub Cadet 918-04176

Transmission Assembly, Hydro
(Superseded to 759-04322)

Note: Does not include Ref Nos. 1,12 & 42

$1913.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3958

Sealant, Loctite Black, 5.3 oz. Tube

Note: Not shown

$

$

Not available

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

Note: Not shown

$21.99

$

In Stock, Qty 10

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

Note: Not shown

$77.99

$

In Stock, only 3 left!

0
