GT 2542 (14A-2D2G010) - Cub Cadet 42" Garden Tractor (2009 & After) Engine Fuel System Parts Diagram

42" Garden Tractor

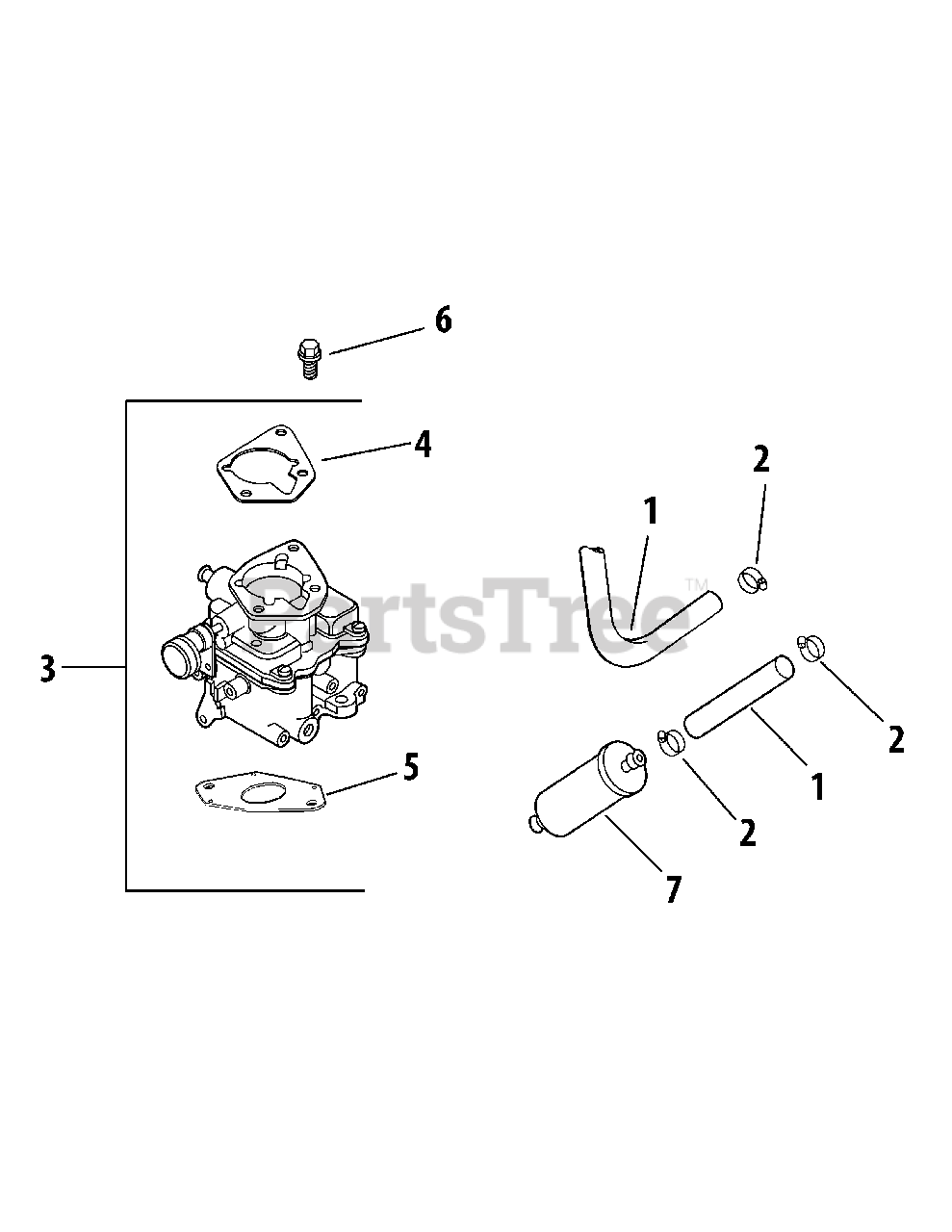

Engine Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-34-S

Line, Fuel
(Superseded to KH-25-111-81-S)

Note: (24" - Cut to Length)

$17.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-32

Kit, Carburetor w/Gasket (Includes 4,5)
(Superseded to KH-24-853-309-S)

$339.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 19

0

5

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 5

0

6

Cub Cadet KH-25-086-124-S

Screw, Hex Flange, M6 x 1.0 x 25

$2.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-050-13-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: Not Shown

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, Float Repair

Note: Not Shown

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, Carburetor Repair

Note: Not Shown

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, High Altitude

Note: Not Shown

$55.99

$

Usually ships in 2-5 days

0
