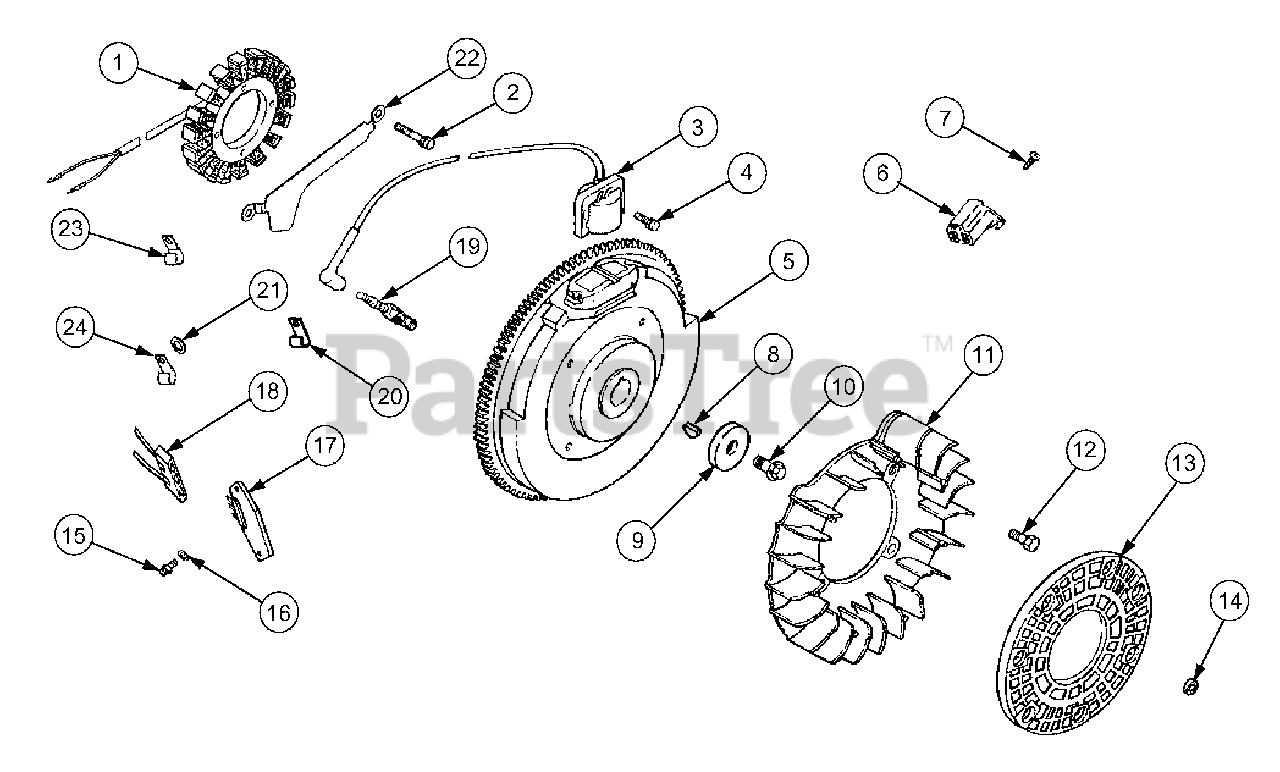

GT 2523-54 (13A-2A8K710) - Cub Cadet 54" Garden Tractor Ignition, Electrical And Flywheel Parts Diagram

54" Garden Tractor

Ignition, Electrical And Flywheel Parts Diagram

  • Title
1

Cub Cadet KH-54-755-09

Stator Kit, 15 Amp
(Superseded to KH-237878)

Note: (Incl. Ref #22)

$

$

Not available

2

Cub Cadet KH-M-0548025

Screw, Stator Mtg. M5 x .8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-584-01-S

Module, Ignition
(Superseded to KH-24-584-45-S)

$110.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-545020-S

Screw, Module M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-025-01

Flywheel Assembly
(Superseded to KH-24-025-55-S)

$

$

Not available

$

$

Not available

$3.49

$

Usually ships in 2-5 days

0

$

$

Not available

9

Cub Cadet KH-12-468-03

Washer, Flywheel Mtg. Screw

$

$

Not available

10

Cub Cadet KH-12-086-14

Screw, Flywheel Mtg, M10x1.5 x 46
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

11

Cub Cadet KH-24-157-01

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-086-47

Bolt, Shoulder

$

$

Not available

13

Cub Cadet KH-24-162-02

Screen, Grass
(Superseded to KH-24-162-36-S)

$25.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-018-03

Retainer
(Superseded to KH-24-018-03-S)

$2.49

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-086-18

Screw Phillips Hd., #11-16 x .875

$

$

Not available

16

Cub Cadet KH-X-25-92

Washer, Plain

$

$

Not available

17

Cub Cadet KH-41-403-09

Regulator - Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

18

Cub Cadet KH-236602

Connector, Regulator-Rectifier
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

19

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

21

Cub Cadet KH-X-25-63

Washer, Plain 1/4"

$

$

Not available

22

Cub Cadet KH-24-126-71

Bracket, Stator Wire
(Superseded to KH-24-126-139-S)

$15.99

$

Usually ships in 2-5 days

0

23

$

$

Not available

24

$5.49

$

In Stock, only 4 left!

0

Cub Cadet KH-24-176-08

Harness, Wire
(Superseded to KH-24-176-171-S)

$117.99

$

In Stock, only 1 left!

0

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0
