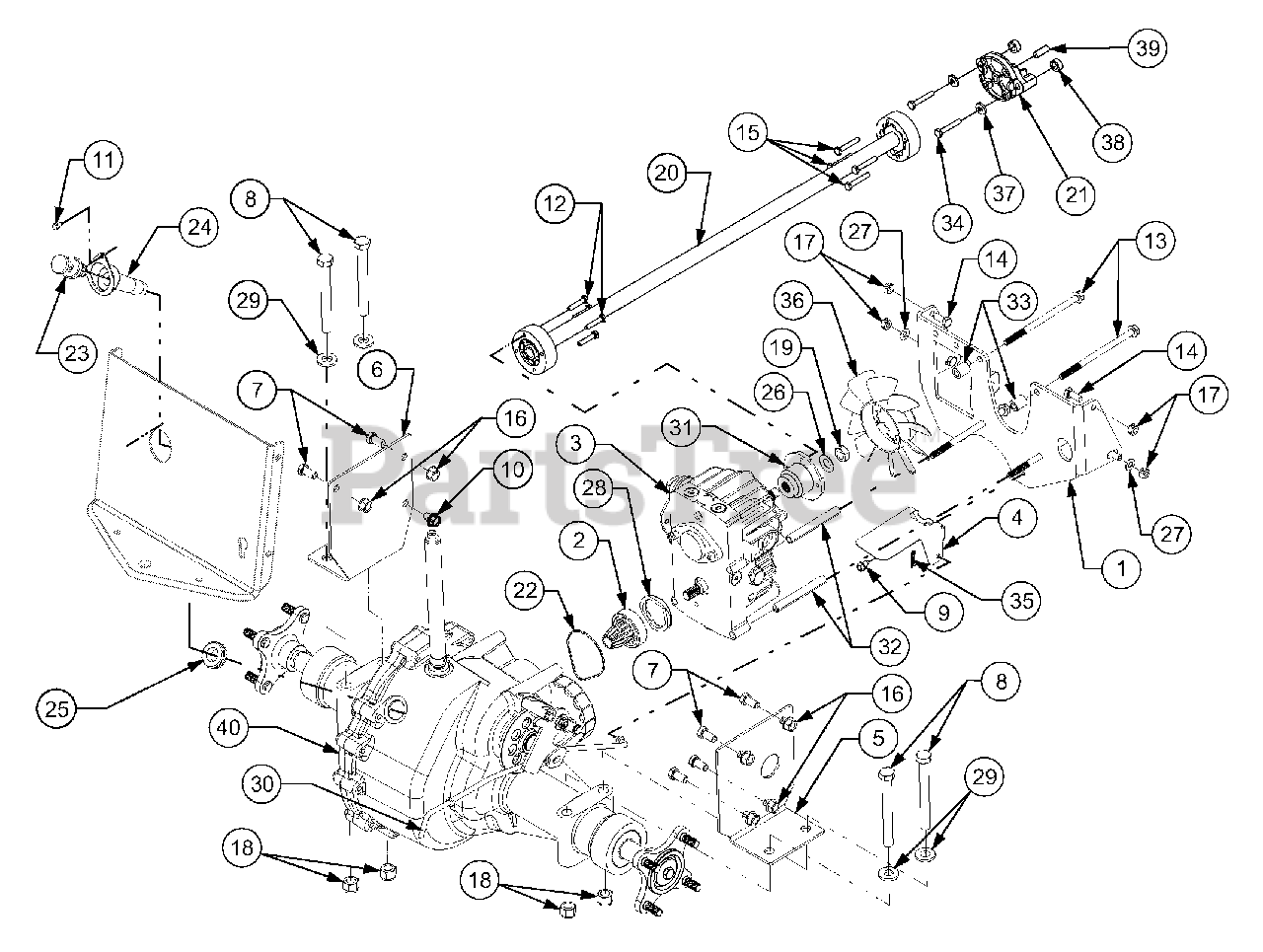

GT 2523-54 (13A-2A8K710) - Cub Cadet 54" Garden Tractor Drive Line Parts Diagram

54" Garden Tractor

Drive Line Parts Diagram

  • Title

1

Cub Cadet 603-0707

Bracket, Torque

$

$

Not available

2

Cub Cadet 617-3002

Gear Assembly, Pinion

$

$

Not available

3

Cub Cadet 618-3243

Transmission, Hydrostatic
(Superseded to 918-3243)

$1508.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-4093

Spring Plate, Hydro Dump

Variations

Cub Cadet 703-4093-0637

Dump Valve Plate, Iron - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-4096

Plate, RH Transmission Flange
(Superseded to 703-4096-0716)

Variations

Cub Cadet 703-4096-0716

PLATE-TRANS MTG RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 703-4097

Plate, LH Transmission Flange
(Superseded to 703-4097-0716)

Variations

Cub Cadet 703-4097-0716

PLATE-TRANS MTG LH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 16

0

8

Cub Cadet 710-0465

Screw, Hex Cap, 1/2-20 x 4.5 GR5

$11.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-0599

Scrw, Hx Wsh Hd Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0773

Scrw, Hx Wsh Hd Tapp, 3/8-16 x .5

$7.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0919

Scrw, Hx Wsh Hd Tapp, 10-16 x .44

$4.99

$

In Stock, Qty 7

0

12

Cub Cadet 710-1062

Screw, Hex Patch, 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1888

Scrw, Hx Hd Tapp, 5/16-18 x 5.25

$9.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3288

Screw, Hex Patch, 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

16

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3009

Nut, Hex Cntr Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3058

Nut, Hex Nylon Lock, 1/2-20 GR2
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 17

0

19

Cub Cadet 712-3059

Nut, Hex Top Lock Jam, 1/2-20

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 717-04125

Shaft, Drive, 31.75 Lg

$

$

Not available

20

Cub Cadet 759-3764

Drive Barrel Kit

Note: Not shown (2 used per tractor)

$27.99

$

In Stock, Qty 20+

0

21

Cub Cadet 719-3096

Adapter, Engine
(Superseded to KH-24-029-12-S)

$32.99

$

In Stock, only 1 left!

0

22

Cub Cadet 721-0519

Seal, Gland

$35.99

$

In Stock, only 1 left!

0

23

Cub Cadet 727-3195

Dipstick, Transmission

$33.99

$

In Stock, only 1 left!

0

24

Cub Cadet 731-3294

Holder, Dipstick

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 735-0277A

Grommet, Rubber, .75 x 1.063

$10.99

$

In Stock, only 2 left!

0

26

Cub Cadet 736-0253

Washer, Belleville

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0619

Washer, Spring

$18.99

$

In Stock, only 1 left!

0

29

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

30

Cub Cadet 747-3417

Rod, Hydro Dump Valve
(Superseded to 747-3417B)

$30.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 748-3093

Adapter, Hydro Pump

$140.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-3349

Spacer, Hydro, .323 x .443 3.51

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet 750-3350

Spacer, Hydro, .323 x .600 x .74

$7.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 15

0

35

Cub Cadet 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 731-3297

Fan, Pump

$37.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 750-0507

Spacer, .38 x .625 x .275
(Superseded to 750-04776)

$5.49

$

In Stock, only 2 left!

0

39

Cub Cadet 711-3330

Pin, Locating, .352 Dia x 1.156

$

$

Not available

40

Transmission Assembly, Hydro - See "Hydro Transmission" for Parts Info.

$

$

Not available
