GT 2523-54 (13A-2A8K710) - Cub Cadet 54" Garden Tractor Deck Assembly 54" Parts Diagram

54" Garden Tractor

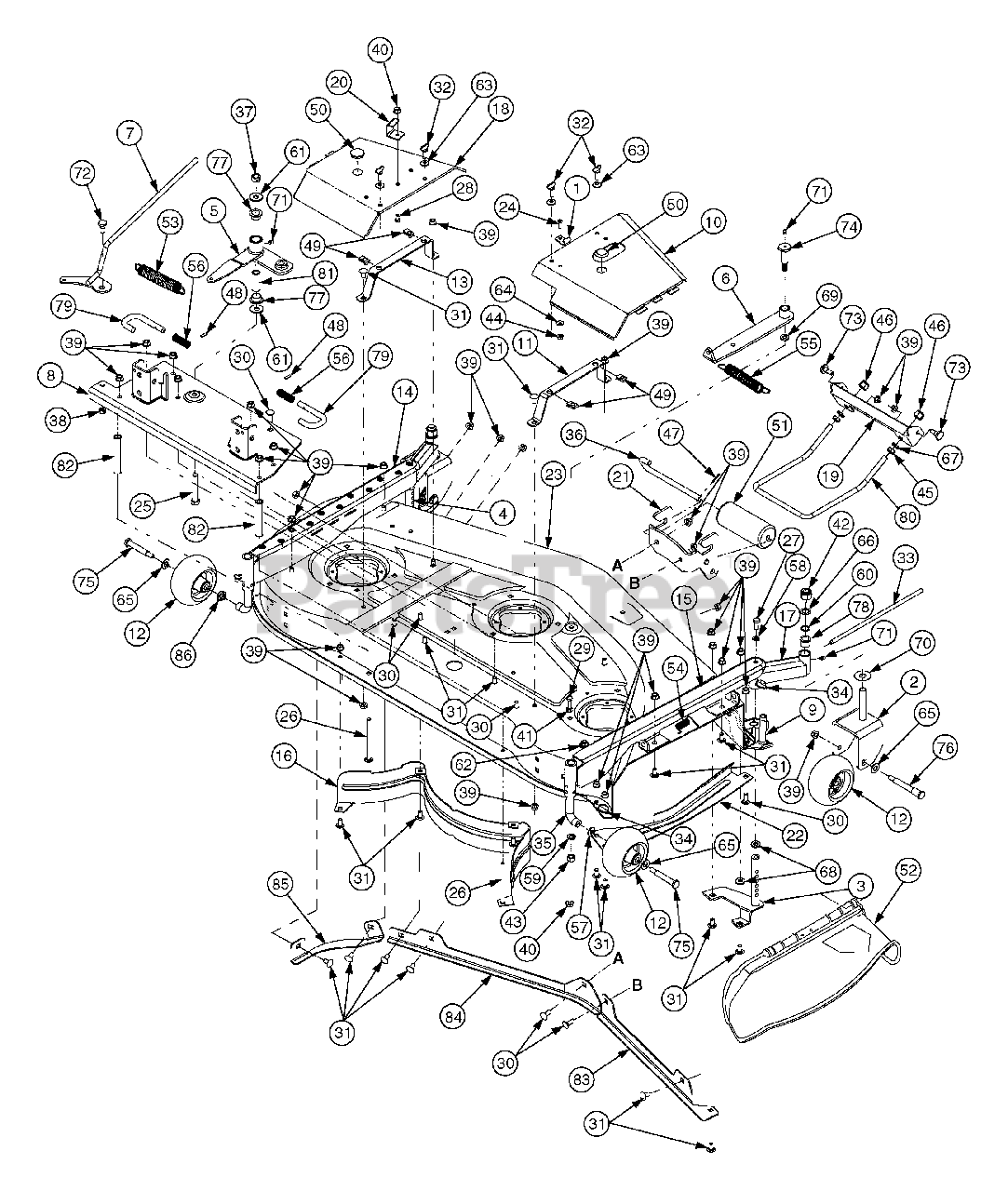

Deck Assembly 54" Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Hook Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 603-0031A

Bracket, Wheel

Variations

Cub Cadet 603-0031A-0498

Caster Wheel Bracket - OLD CUB YELLOW (0498)

$78.99

$

In Stock, Qty 20+

0

Cub Cadet 603-0031A-0716

Caster Wheel Bracket - CUB YELLOW-99 (0716)

$78.99

$

In Stock, Qty 20+

0

Cub Cadet 603-0031A-4021

Caster Wheel Bracket - CUB YELLOW 2 (4021)

$78.99

$

In Stock, Qty 20+

0

$73.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0110

Spindle, Adjustment RH
(Superseded to 903-0110)

$

$

Not available

4

Cub Cadet 603-0111

Spindle, Adjustment LH
(Superseded to 903-0111)

$

$

Not available

5

Cub Cadet 603-04094

Bracket, Idler
(Superseded to 903-04094)

$162.99

$

In Stock, only 1 left!

0

6

Cub Cadet 603-04107

Bracket, Idler

Variations

Cub Cadet 603-04107-4021

Idler Arm Assembly - CUB YELLOW 2 (4021)

$113.99

$

In Stock, only 1 left!

0

Cub Cadet 603-04107-0637

ARM ASM-IDLER - POWDER BLACK (0637)

$113.99

$

In Stock, only 1 left!

0

Cub Cadet 603-04107-0716

ARM ASSY-IDLER - CUB YELLOW-99 (0716)

$113.99

$

In Stock, only 1 left!

0

$92.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 603-04113

Handle

Variations

Cub Cadet 603-04113-0637

HANDLE ASSY - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04113-0716

USE 603-04113-0637 HANDLE ASS - CUB YELLOW-99 (0716)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04113-4021

USE 603-04113-0637 HANDLE ASS - CUB YELLOW 2 (4021)

$70.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 603-04135

Bracket, Rear Hanger

Variations

Cub Cadet 603-04135-0716

Mounting Plate Assembly, Cub Yellow - CUB YELLOW-99 (0716)

$179.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04135-4021

PLATE ASM-MOUNTING - CUB YELLOW 2 (4021)

$

$

Not available

$156.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 683-0617

Bracket, Chute Stop
(Superseded to 683-0617A-0637)

Variations

Cub Cadet 683-0617-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

Cub Cadet 683-0617-0638

Chute Deflector Stop, Black - MTD/TROY-BILT RED (0638)

$64.99

$

In Stock, only 3 left!

0

Cub Cadet 683-0617-0650

Chute Deflector Stop, Black - RED METALLIC (0650)

$64.99

$

In Stock, only 3 left!

0

Cub Cadet 683-0617-0665

Chute Deflector Stop, Black - YARDMAN GREEN (0665)

$64.99

$

In Stock, only 3 left!

0

Cub Cadet 683-0617-0716

Chute Deflector Stop, Black - CUB YELLOW-99 (0716)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

10

Cub Cadet 703-05269

Cover, Belt RH

Variations

Cub Cadet 703-05269-4021

GUARD-RH BELT - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 703-05269-0716

GUARD-RH BELT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 703-05270

Strap, Mounting

Variations

Cub Cadet 703-05270-4021

STRAP-MOUNTING - CUB YELLOW 2 (4021)

$21.99

$

In Stock, only 1 left!

0

Cub Cadet 703-05270-0637

STRAP-MOUNTING - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-05270-0716

STRAP-MOUNTING - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

Cub Cadet 703-1890

Wheel, Ball w/Fitting, 5 in
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

13

Cub Cadet 703-2072

Strap, Mounting

Variations

Cub Cadet 703-2072-0498

STRAP-MOUNTING - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2072-4021

STRAP-MOUNTING - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2072-0637

STRAP-MOUNTING - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2072-0716

STRAP-MOUNTING - CUB YELLOW-99 (0716)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-2081A

Channel, Castor LH

Variations

Cub Cadet 703-2081A-0498

USE 703-2081A-0716 CHANNEL-LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2081A-0716

CHANNEL-LH CASTOR - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2081A-4021

CASTOR CHANNEL (LH) (CUB YELLOW 2) - CUB YELLOW 2 (4021)

$

$

Not available

$

$

15

Cub Cadet 703-2083

Channel, Castor RH

Variations

Cub Cadet 703-2083-0498

CASTOR CHANNEL (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2083-0716

CASTOR CHANNEL (RH)(CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2083-4021

CASTOR CHANNEL (RH) (CUB YELLOW 2) - CUB YELLOW 2 (4021)

$

$

Not available

$

$

16

Cub Cadet 703-2093

Baffle, Rear Inner
(Superseded to 703-2093C)

Variations

Cub Cadet 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2093-0716

Inner Rear Baffle, Black - CUB YELLOW-99 (0716)

$96.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-2094

Castor, Front

Variations

Cub Cadet 703-2094-0498

Castor Assembly, Front - OLD CUB YELLOW (0498)

$88.99

$

In Stock, Qty 5

0

Cub Cadet 703-2094-0716

Castor Assembly, Front - CUB YELLOW-99 (0716)

$88.99

$

In Stock, Qty 5

0

Cub Cadet 703-2094-4021

Castor Assembly, Front - CUB YELLOW 2 (4021)

$88.99

$

In Stock, Qty 5

0

$79.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-2096C

Cover, Belt LH

Variations

Cub Cadet 703-2096C-0716

Belt Guard, LH - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2096C-0637

GUARD-LH BELT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2096C-4021

GUARD-LH BELT - CUB YELLOW 2 (4021)

$

$

Not available

$71.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-2248

Bracket, Front Lift

Variations

Cub Cadet 703-2248-0637

Front Lift Bracket - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2248-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$47.99

$

In Stock, only 2 left!

0

$38.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 703-2559

Bracket, Stop

Variations

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 703-3043A

Bracket, Roller Front

Variations

Cub Cadet 703-3043A-0498

Front Roller Bracket - OLD CUB YELLOW (0498)

$69.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3043A-0637

Front Roller Bracket - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3043A-0716

Front Roller Bracket - CUB YELLOW-99 (0716)

$69.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3043A-4021

Front Roller Bracket - CUB YELLOW 2 (4021)

$69.99

$

In Stock, only 1 left!

0

$64.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 703-3511

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 703-3511-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

23

Cub Cadet 703-4133A

Deck
(Superseded to 903-06576A-4021)

Variations

Cub Cadet 703-4133A-0716

USE 903-06576A-0716 SHELL-54" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777D05395

Label, 54"

$

$

Not available

Cub Cadet 777S30503

Label, Danger

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 777S30015

Label, Danger L.H. Side

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30014

Graphic, Caution Spring Tension

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0 GR8

$

$

Not available

26

Cub Cadet 710-1644

Carriage, Bolt 3/8-16 x 5.0 GR5

$9.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 9

0

28

Cub Cadet 710-3039

Screw, Hex Cap, 5/16-18 x .5 GR5

$

$

Not available

29

Cub Cadet 710-3073

Screw, Hex Cap, 5/16-18 x 2.25 GR5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

30

Cub Cadet 710-3168

Carriage, Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3178

Carriage, Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3232

Screw, Thumb Adjust 5/16-18 x 1

$9.99

$

In Stock, only 2 left!

0

33

Cub Cadet 711-1762

Pin, Hinged .375 x 14.06

$18.99

$

In Stock, Qty 6

0

34

Cub Cadet 711-3266

Pin, Clevis w/Ball Detent

$15.99

$

In Stock, Qty 7

0

35

Cub Cadet 711-3312

Axle, Castor

$69.99

$

In Stock, Qty 10

0

36

Cub Cadet 711-3314

Pin, Roller 1/2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

37

Cub Cadet 712-0239

Nut, Hex Lock, 1/2-20 GRA

$5.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16 GRA

$4.49

$

In Stock, Qty 6

0

39

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-3010

Nut, Hex , 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 712-3016

Nut, Hex Lock 5/8-11

$6.99

$

In Stock, Qty 13

0

43

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR2

$6.99

$

In Stock, only 1 left!

0

44

Cub Cadet 712-3027

Nut, Hex Flange Lock 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13 GR8

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 714-3004

Pin, Cotter 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

48

Cub Cadet 715-3003

Pin, Spirol

$6.99

$

In Stock, Qty 7

0

49

Cub Cadet 726-0211

Nut, "U" 5/16-18

$4.49

$

In Stock, only 1 left!

0

50

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 6

0

51

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

52

Cub Cadet 731-3131A

Deflector, Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, only 4 left!

0

Cub Cadet 777S30145

Label, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

53

Cub Cadet 732-0861

Spring, Extension

$30.99

$

In Stock, only 1 left!

0

54

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$11.99

$

In Stock, only 4 left!

0

55

Cub Cadet 732-3120A

Spring, Extension

$31.99

$

In Stock, only 1 left!

0

56

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 736-0105

Washer, Bell, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0169

Washer, Lock 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0171

Washer, Lock 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

60

Cub Cadet 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, Qty 11

0

61

Cub Cadet 736-0179

Washer, Flat, .5 x 1.25 x .10

$4.99

$

In Stock, only 2 left!

0

62

Cub Cadet 736-0192

Washer, Flat, .535 x .93 x .09

$4.49

$

In Stock, Qty 18

0

63

Cub Cadet 736-0242

Washer, Bell .34" I.D.

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0270

Washer, Bell .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

66

Cub Cadet 736-0290

Washer, Flat, .625 x 1.0 x .067

$6.99

$

In Stock, Qty 20+

0

67

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

68

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

69

Cub Cadet 736-3015

Washer, Flat, .469 x .875 x .105
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-3088

Washer, Flat, 1.595 x .635 x .062 HT

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

72

Cub Cadet 738-0143

Screw, Shoulder, .498 x .34: 3/8-16

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 738-0507B

Screw, Shoulder, .5 x .434: 3/8-16

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 738-3005A

Screw, Shoulder, .68 x 1.59
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

75

Cub Cadet 738-3056

Screw, Shoulder, .5 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

76

Cub Cadet 738-3093

Screw, Step Shoulder, 5/8-1/2 x 3.41

$19.99

$

In Stock, Qty 17

0

77

Cub Cadet 741-0338

Bearing, Flange, 3/4 x .52

$9.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 741-0353

Bearing, Flange, .63 ID

$11.99

$

In Stock, Qty 20+

0

79

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

80

Cub Cadet 747-04142

Rod, Deck Hanger
(Superseded to 747-3172C)

$71.99

$

In Stock, only 3 left!

0

81

Cub Cadet 750-3136

Spacer, .5 x .75 x 2.07" Lg.
(Superseded to 950-3136)

$13.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 750-3213

Spacer, .405" x .75 x 3.875" Lg.

$15.99

$

In Stock, only 2 left!

0

83

Cub Cadet 783-1482

Skirt, RH Deck
(Superseded to 783-1482-0637)

Variations

Cub Cadet 783-1482-0637

SKIRT-54" DECK RH - POWDER BLACK (0637)

$

$

Not available

$

$

84

Cub Cadet 783-1483

Skirt, LH Deck
(Superseded to 783-1483-0637)

Variations

Cub Cadet 783-1483-0637

SKIRT-54" DECK LH - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 783-1484

Skirt, LH Extension
(Superseded to 783-1484-0637)

Variations

Cub Cadet 783-1484-0637

SKIRT-LH EXTENSION - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 738-0372B

Spacer, Shoulder

$9.49

$

In Stock, Qty 20+

0
