GT 2523-54 (13A-2A8K710) - Cub Cadet 54" Garden Tractor Cylinder Head, Valves And Breather Parts Diagram

54" Garden Tractor

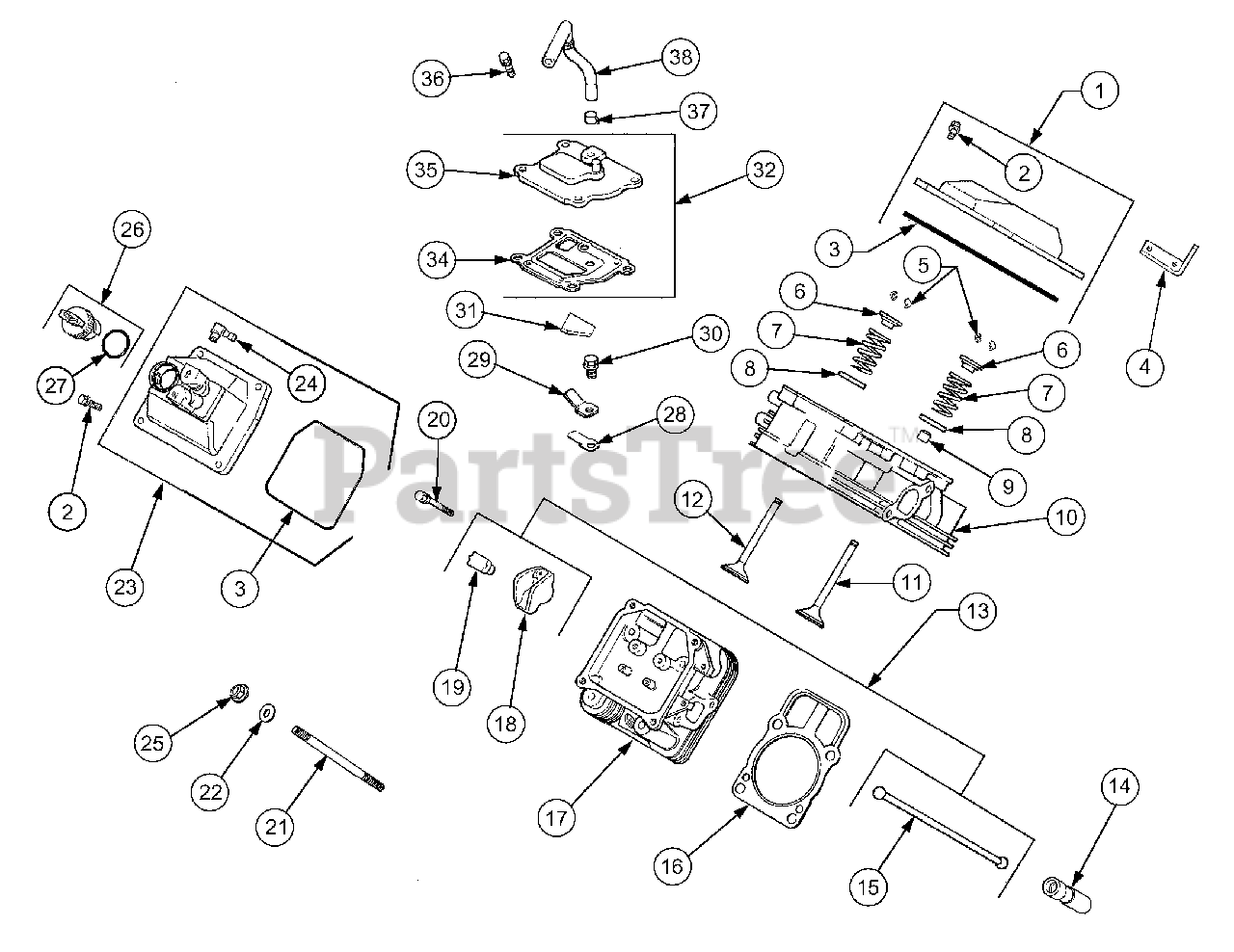

Cylinder Head, Valves And Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-74

Kit, Valve Cover
(Superseded to KH-24-755-141-S)

Note: (Includes 2-3)

$35.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-086-32

Screw, Shoulder

$

$

Not available

3

Cub Cadet KH-24-153-23-S

O-Ring, Valve Cover

$18.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-445-01

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

8

Cub Cadet KH-235011

Retainer, Spring
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05

Seal, Valve Stem

$

$

Currently unavailable

10

Cub Cadet KH-24-318-68

Kit, Cylinder Head #1

Note: (Incl. #21)

$

$

Currently unavailable

11

Cub Cadet KH-24-017-01

Valve, Intake Std

$

$

Not available

Cub Cadet KH-24-017-02

Valve, Intake, .25mm

$

$

Not available

12

Cub Cadet KH-24-016-01

Valve, Exhaust Std
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-016-02

Valve, Exhaust, .25mm

$

$

Not available

13

Cub Cadet KH-24-755-66

Kit, Valve Train

Note: (Incl. 15,18,19)

$

$

Not available

14

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

16

Cub Cadet KH-24-841-02-S

Kit, Cylinder Head Gasket

Note: (Includes 21, 22, 25)

$45.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-318-71

Kit, Cylinder Head #2

Note: (Incl. #21)

$

$

Currently unavailable

18

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

19

Cub Cadet KH-24-599-01

Pivot, Rocker Arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-66-086-07-S

Screw, Hex Flng, M6 x 1.0 x 34
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 18

0

21

Cub Cadet KH-24-072-09-S

Stud, Cylinder Head

$6.49

$

In Stock, only 4 left!

0

22

Cub Cadet KH-24-486-16-S

Washer, Flat

$

$

Currently unavailable

23

Cub Cadet KH-24-559-05-S

Cover Kit, Fuel Pump Valve
(Superseded to KH-24-559-10-S)

Note: (Includes 3, 24)

$168.99

$

In Stock, Qty 13

0

24

Cub Cadet KH-25-294-11-S

Connector, 90°

$11.99

$

In Stock, only 2 left!

0

25

Cub Cadet KH-24-100-10-S

Nut, Hex Flange, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-24-227-02

Cap Assembly, Oil Fill
(Superseded to KH-24-227-02-S)

Note: (Incl. 27)

$7.99

$

In Stock, Qty 6

0

27

Cub Cadet KH-24-153-09

O-Ring
(Superseded to KH-24-153-32-S)

$2.49

$

In Stock, only 4 left!

0

28

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

29

Cub Cadet KH-66-018-04-S

Retainer, Breather Reed

$4.99

$

In Stock, Qty 6

0

30

Cub Cadet KH-M-0545010

Screw, Hex Flng, M5 x 0.8 x 10

$

$

Not available

31

Cub Cadet KH-24-050-01

Filter, Breather
(Superseded to KH-24-050-11-S)

$2.49

$

Usually ships in 2-5 days

0

32

Cub Cadet KH-24-033-01

Kit, Breather

Note: (Includes 33-35)

$

$

Not available

34

Cub Cadet KH-24-041-50

Gasket, Breather

$

$

Currently unavailable

35

Cub Cadet KH-24-096-86-S

Cover, Breather
(Superseded to KH-24-033-01)

$

$

Not available

36

Cub Cadet KH-M-0645020

Screw, Hex Flng M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

37

Cub Cadet KH-25-237-14-S

Clamp, Breather
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

38

Cub Cadet KH-24-326-26

Hose, Breather
(Superseded to KH-24-326-89-S)

$9.99

$

In Stock, Qty 6

0

Cub Cadet KH-25-141-06-S

Ring, Snap (Fuel pump fittings)

Note: Not Shown

$2.49

$

Usually ships in 2-5 days

0
