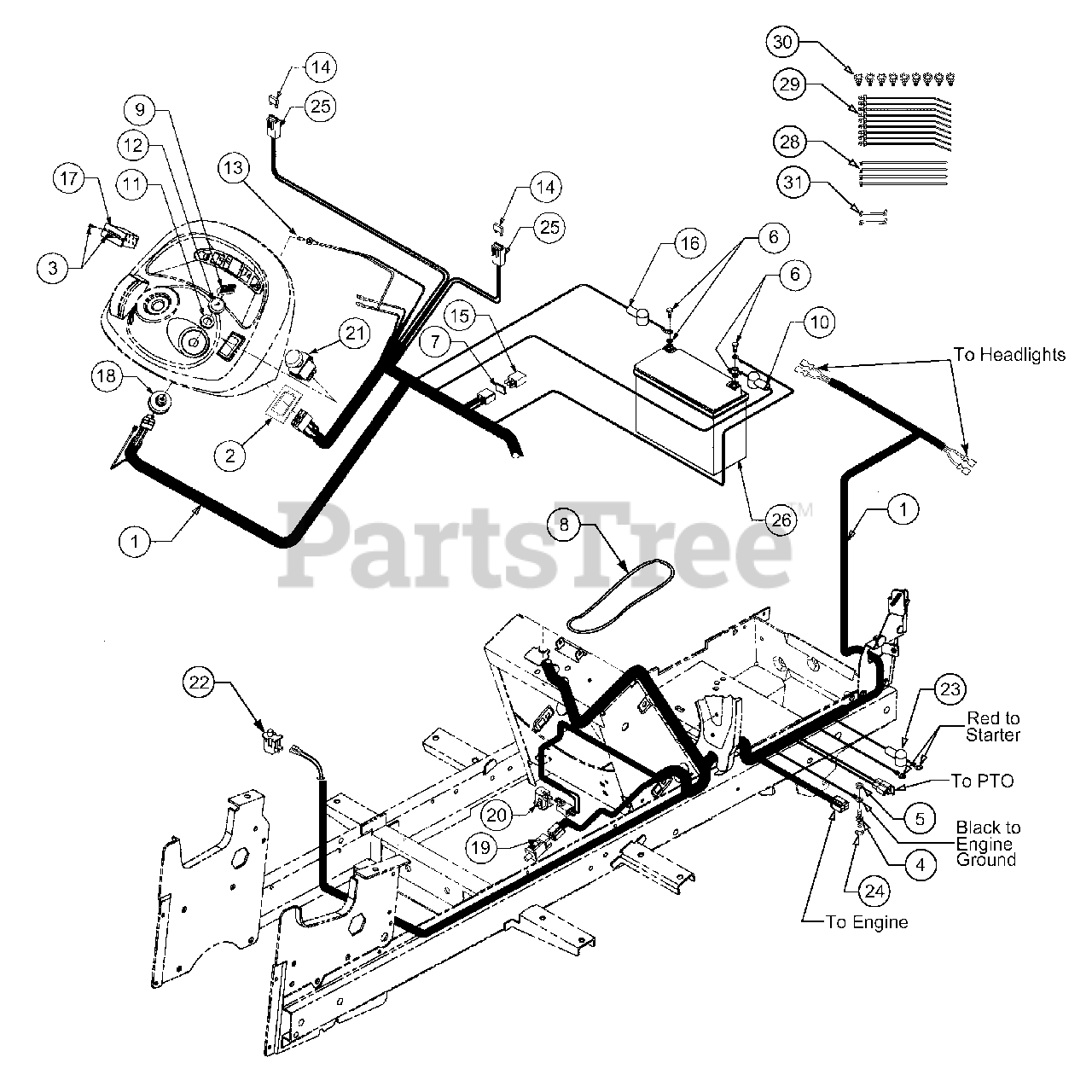

GT 2523-54 (13A-2A8K710) - Cub Cadet 54" Garden Tractor Battery, Electrical Components And Switches Parts Diagram

54" Garden Tractor

Battery, Electrical Components And Switches Parts Diagram

  • Title
1

Cub Cadet 629-3068A

Wire Harness, Main
(Superseded to 929-3068A)

$291.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

3

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 x .62

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 711-1094

Stud, Ground

$

$

Not available

5

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

6

Battery Cable Hardware

$

$

Not available

$3.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 10

0

7

Cub Cadet 721-0342

Gasket, Silicone
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

8

Cub Cadet 723-04016

Strap, Battery Retainer

$16.99

$

In Stock, only 1 left!

0

9

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

10

Cub Cadet 725-0340

Cover, Terminal Black

$

$

Not available

11

Cub Cadet 725-1346

Nut, Ignition Switch
(Superseded to 925-1346)

$

$

Not available

12

Cub Cadet 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 3 left!

0

14

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

16

Cub Cadet 725-3007A

Cover, Terminal Red

$

$

Not available

17

Cub Cadet 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

18

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, only 3 left!

0

19

Cub Cadet 725-3164A

Switch, Interlock (Brake)
(Superseded to 925-3164A)

$40.99

$

In Stock, only 2 left!

0

20

Cub Cadet 725-3166

Switch, Snap Mount - Normally Closed
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

21

Cub Cadet 725-3233

Switch, PTO
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 12

0

22

Cub Cadet 725-3166

Switch, Snap Mount Seat
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

23

Cub Cadet 725-3237

Cover, Terminal Red

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 729-0357

Holder, Fuse w/Mounting Clip

$

$

Not available

26

Cub Cadet 725-1707C

Battery
(Superseded to 925-1707D)

$

$

Not available

28

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, only 2 left!

0

29

Cub Cadet 726-0154

Tie, Pushmount
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 726-3055

Clip, Cable

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 726-0161

Clip, Wire

$

$

Not available
