GT 2521-48 (13A-278M710) - Cub Cadet 48" Garden Tractor Spindle Assembly 48" Parts Diagram

48" Garden Tractor

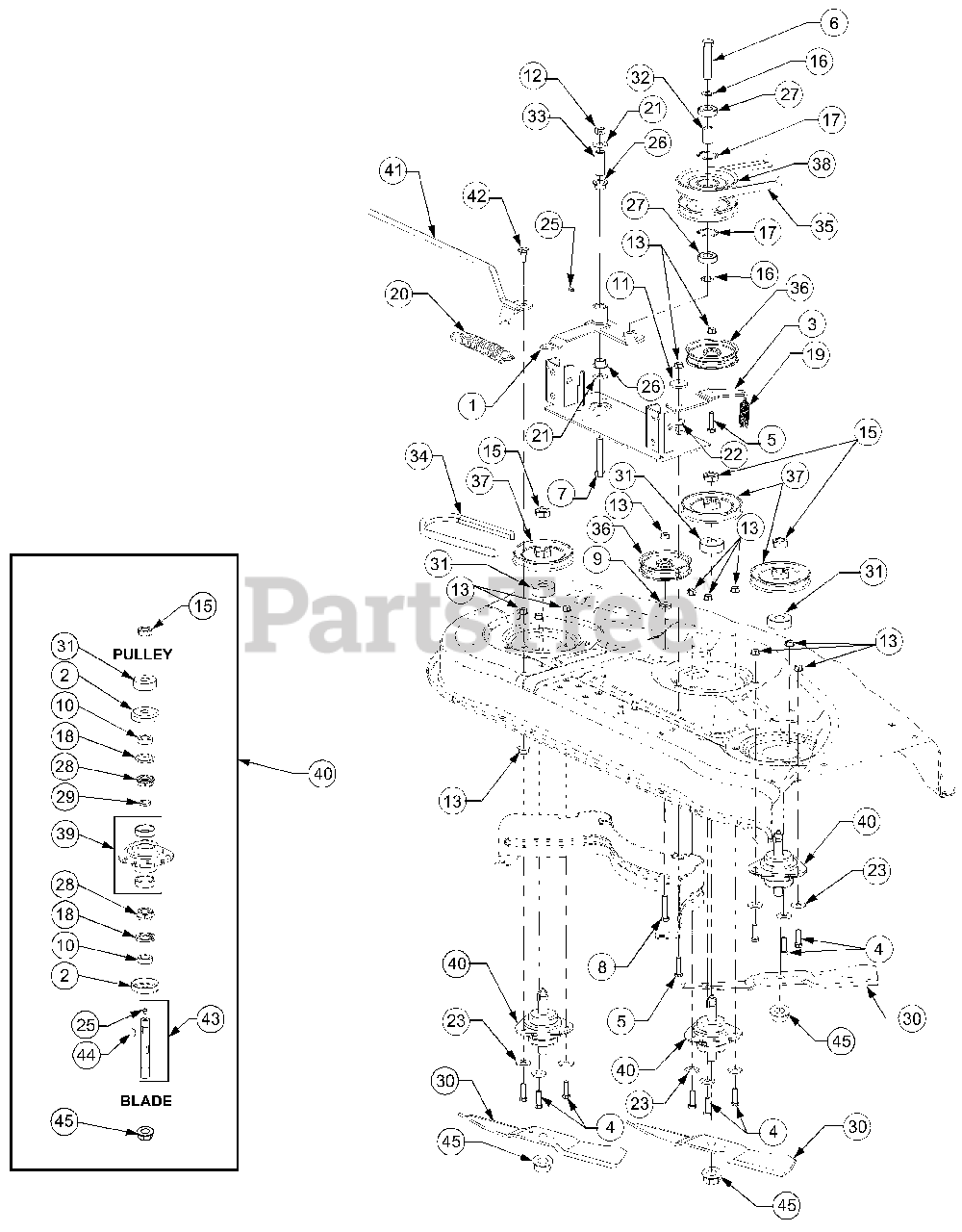

Spindle Assembly 48" Parts Diagram

  • Title

1

Cub Cadet 603-0857

Pivot Arm, Double Pulley
(Superseded to 903-0857)

$131.99

$

In Stock, only 1 left!

0

2

Cub Cadet 703-1387

Cup, Spindle
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

3

Cub Cadet 703-2579

Arm, Idler

Variations

Cub Cadet 703-2579-0498

Idler Arm - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2579-0716

Idler Arm - CUB YELLOW-99 (0716)

$

$

Not available

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3005

Screw, Hex Cap 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

6

Cub Cadet 710-0923

Screw, Hex Cap, 5/8-18 x 3 GR5

$9.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3 GR8

$

$

Not available

8

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-0242

Spacer, .380 ID x 1 OD x .32

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 711-3171A

Spacer, .755 ID x 1.25 OD x .44

$

$

Currently unavailable

11

Cub Cadet 711-3272A

Spacer, Shoulder
(Superseded to 911-3272A)

$14.99

$

In Stock, only 4 left!

0

12

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 7

0

16

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 721-3018A

Seal, Oil, 1.25 x 1.874 x .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

19

Cub Cadet 732-0478

Spring, Extension, .75 OD x 6.12
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 10

0

20

Cub Cadet 732-0861

Spring, Extension, 1.25 OD x 8.15

$30.99

$

In Stock, only 1 left!

0

21

Cub Cadet 736-0179

Washer, Flat, .531 x 1.25 x .1 Thk

$4.99

$

In Stock, only 2 left!

0

22

Cub Cadet 736-0258

Washer, Flat, .385 x 1 x .127 Thk

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 736-3052

Washer, Flat, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 741-0338

Bearing, Flange, 3/4 ID x .53

$9.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 741-1122

Bearing, Ball, .62 x 1.57 x .470

$34.99

$

In Stock, Qty 20+

0

28

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

29

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$12.99

$

In Stock, only 3 left!

0

30

Cub Cadet 742-3019

Blade, Low Lift, 16.5"
(Superseded to 759-3825)

$35.99

$

In Stock, only 3 left!

0

Cub Cadet 742-3025

Blade, High Lift, 16.5"
(Superseded to 759-3826)

$46.99

$

In Stock, Qty 9

0

Cub Cadet 759-3677

Blade, Hard Coated, 16.5"
(Superseded to 759-3842)

$59.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 748-3020

Spacer
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

32

Cub Cadet 750-3132

Spacer, Pulley, .635 ID x .88 OD x
(Superseded to 950-3132)

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet 750-3136

Spacer, Idlr Brkt, .51 ID x .75 OD x
(Superseded to 950-3136)

$13.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 754-3041

Belt, Spindle, A-Section x 105"
(Superseded to 954-3041)

$58.99

$

In Stock, only 1 left!

0

35

Cub Cadet 754-04041

Belt, PTO, B-Section x 111.2"
(Superseded to 954-04041)

$62.99

$

In Stock, only 2 left!

0

36

Cub Cadet 756-3005

Pulley, Flat Idler, 4.06 OD

$45.99

$

In Stock, Qty 20+

0

37

Cub Cadet 756-3046

V-Pulley, 4.70 OD

$56.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 756-3116

Pulley, Double

$131.99

$

In Stock, only 1 left!

0

Cub Cadet 737-3000

Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 759-3226

Housing w/Cups, Spindle
(Superseded to 959-3226)

$

$

Not available

40

Cub Cadet 759-3665

Spindle Ass'y, Blade
(Superseded to 959-3665)

$

$

Not available

41

Cub Cadet 603-0203

Handle, Tension
(Superseded to 603-04113-0637)

Variations

Cub Cadet 603-0203-0716

USE 603-04113-0637 HANDLE ASS - CUB YELLOW-99 (0716)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia. x .340

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 759-3369

Kit, Shaft w/Seal
(Superseded to 959-3369)

$78.99

$

In Stock, only 3 left!

0

44

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 x 3/4

$4.99

$

In Stock, only 2 left!

0

45

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

Note: (Optional)

$9.99

$

In Stock, Qty 20+

0
