GT 2521-48 (13A-278M710) - Cub Cadet 48" Garden Tractor Engine Mounting And Muffler Parts Diagram

48" Garden Tractor

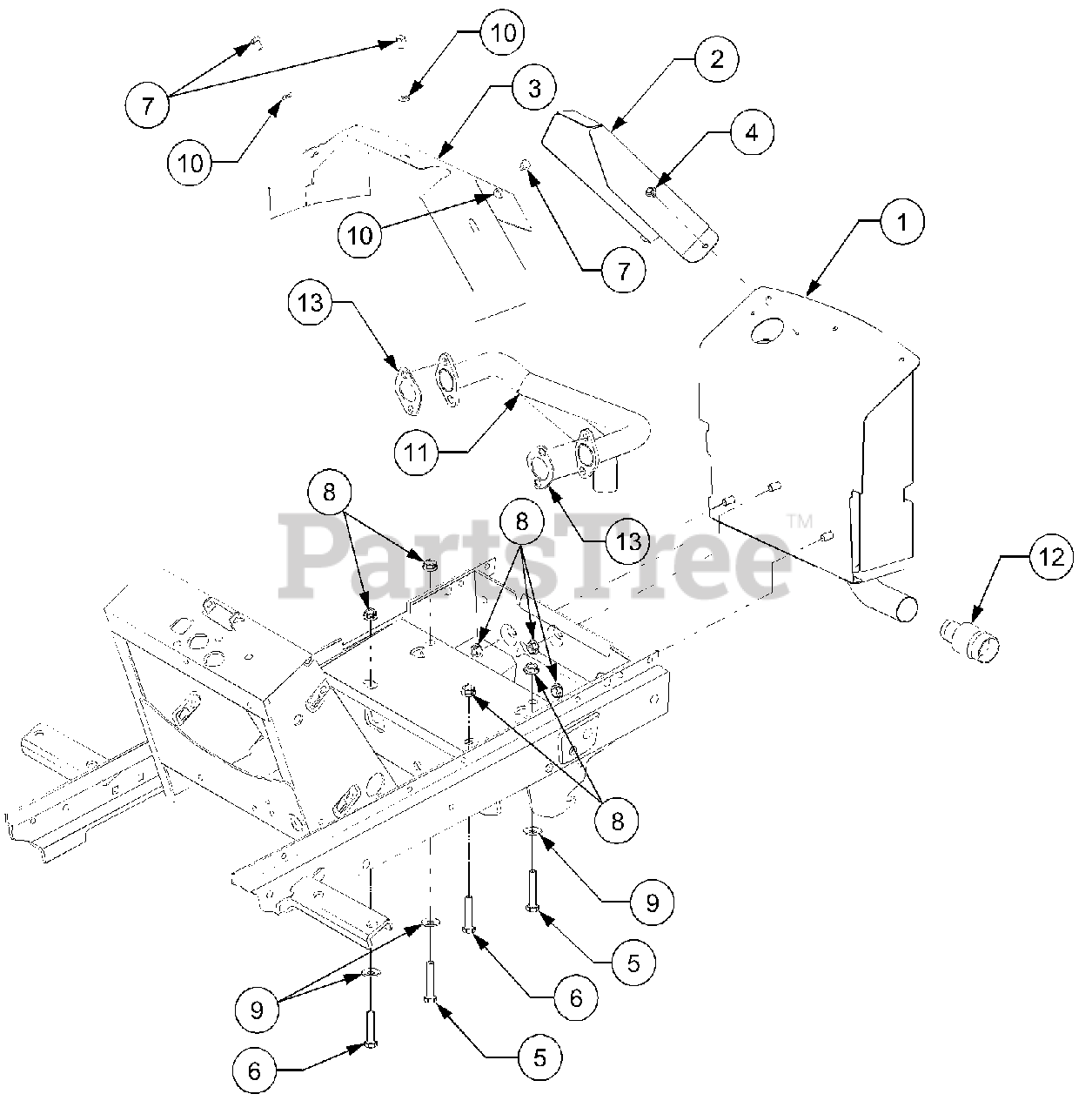

Engine Mounting And Muffler Parts Diagram

  • Title

1

Cub Cadet 651-3001

Muffler Assembly
(Superseded to 951-3001P)

$437.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3099

Sheild, Muffler Tube
(Superseded to 703-3099A)

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05475

Sheild, Engine Heat

$

$

Not available

4

Cub Cadet 710-1268

Screw, Hex Wsh Hd Tap, #10-16 x .38

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3180

Bolt, Eng Mount, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0805

Screw, Hex Cap, 5/16-18 x 1.5 GR5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3209

Screw, Hex Cap, M6-1.0 x 10 GR8.8

$8.49

$

In Stock, Qty 13

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .060

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0142

Washer, Flat, .281 x .5 x .063

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 751-10058

Tube, Exhaust

$

$

Not available

12

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

13

Cub Cadet BS-691613

Gasket, Exhaust

$5.49

$

Usually ships in 2-12 days

0
