GT 2521-48 (13A-278M710) - Cub Cadet 48" Garden Tractor Engine Electrical Parts Diagram

48" Garden Tractor

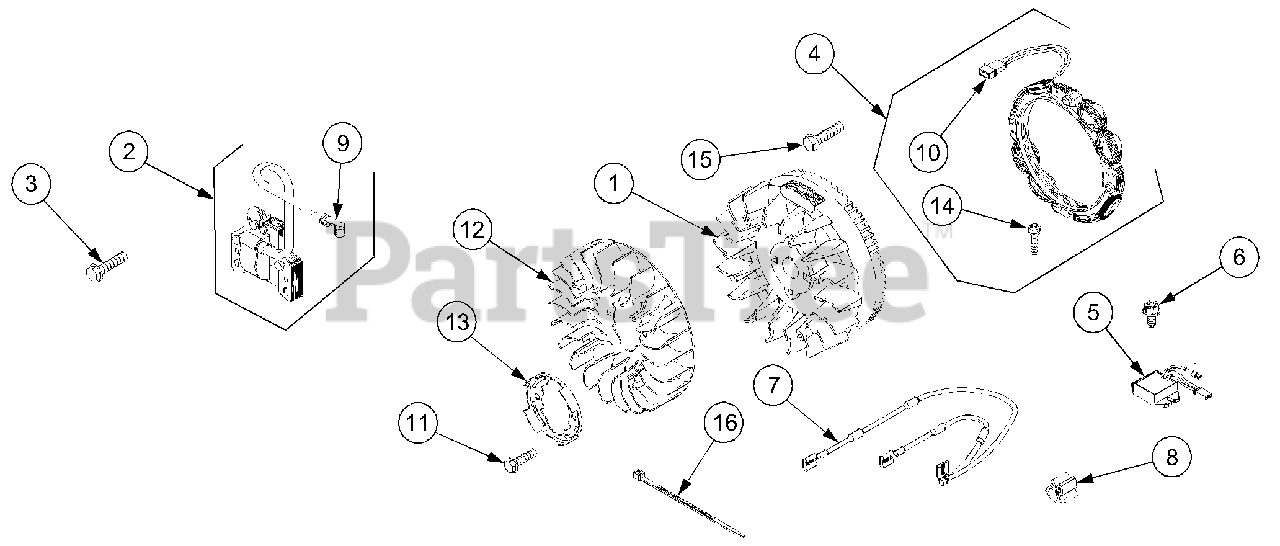

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet BS-808768

Flywheel & Ring Gear

$

$

Not available

Cub Cadet BS-690887

Nut, Flywheel

$5.49

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-492341

Armature, Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

3

Cub Cadet BS-692066

Screw, Magneto Armature

$3.49

$

In Stock, Qty 7

0

4

Cub Cadet BS-696458

Alternator
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-691185

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 20+

0

6

Cub Cadet BS-692067

Screw, Regulator

$3.99

$

In Stock, Qty 9

0

7

Cub Cadet BS-692319

Wire Assembly
(Superseded to BS-844547)

$17.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-690586

Clip,Wire

$3.99

$

In Stock, only 3 left!

0

9

Cub Cadet BS-493880

Termainl, Spark Plug
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-399916

Wire/Connector, Alternator

$12.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-691058

Screw, Fan Retainer

$5.99

$

In Stock, Qty 11

0

12

Cub Cadet BS-690911

Fan, Flywheel

$

$

Not available

13

Cub Cadet BS-690452

Retainer, Fan

$10.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-698516

Kit, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-691552

Screw, Alternator

$3.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-280275

Tie, Cable

$4.49

$

Usually ships in 2-12 days

0
