GT-251 - Echo String Trimmer (SN: S65011001001 - S65011999999) Fuel System Parts Diagram

String Trimmer

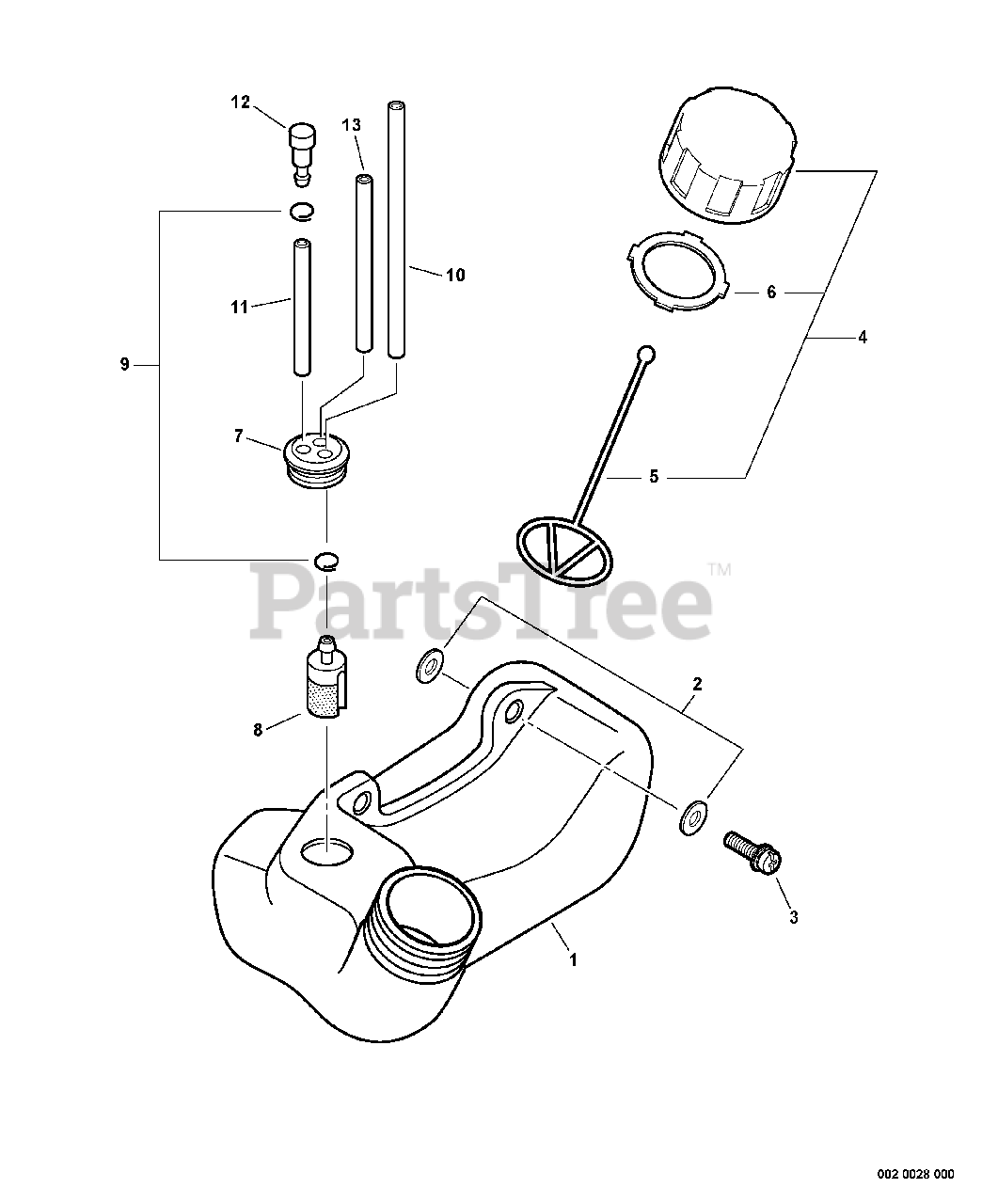

Fuel System Parts Diagram

  • Title

1

Echo A350000700

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

2

Echo V325000010

WASHER - 8

Note: INCLUDES ITEMS 5-6

$0.99

$

Usually ships in 2-4 days

0

3

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo P021012210

CAP ASSY
(Superseded to P021012211)

Note: Includes ITEMS 5-6

$5.99

$

In Stock, only 1 left!

0

5

Echo A365000020

CONNECTOR, FUEL CAP
(Superseded to A365000060)

$1.49

$

In Stock, Qty 10

0

6

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

7

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo V470000580

PIPE - 3X5X195 -- BLACK
(Superseded to V470000581)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

11

Echo 13201021160

PIPE - 3X6X35 -- BLACK
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 16

0

12

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

13

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 18

0
