GT-251 - Echo String Trimmer (SN: 09001001 - 09999999) Engine, Short Block -- SB1081 Parts Diagram

String Trimmer

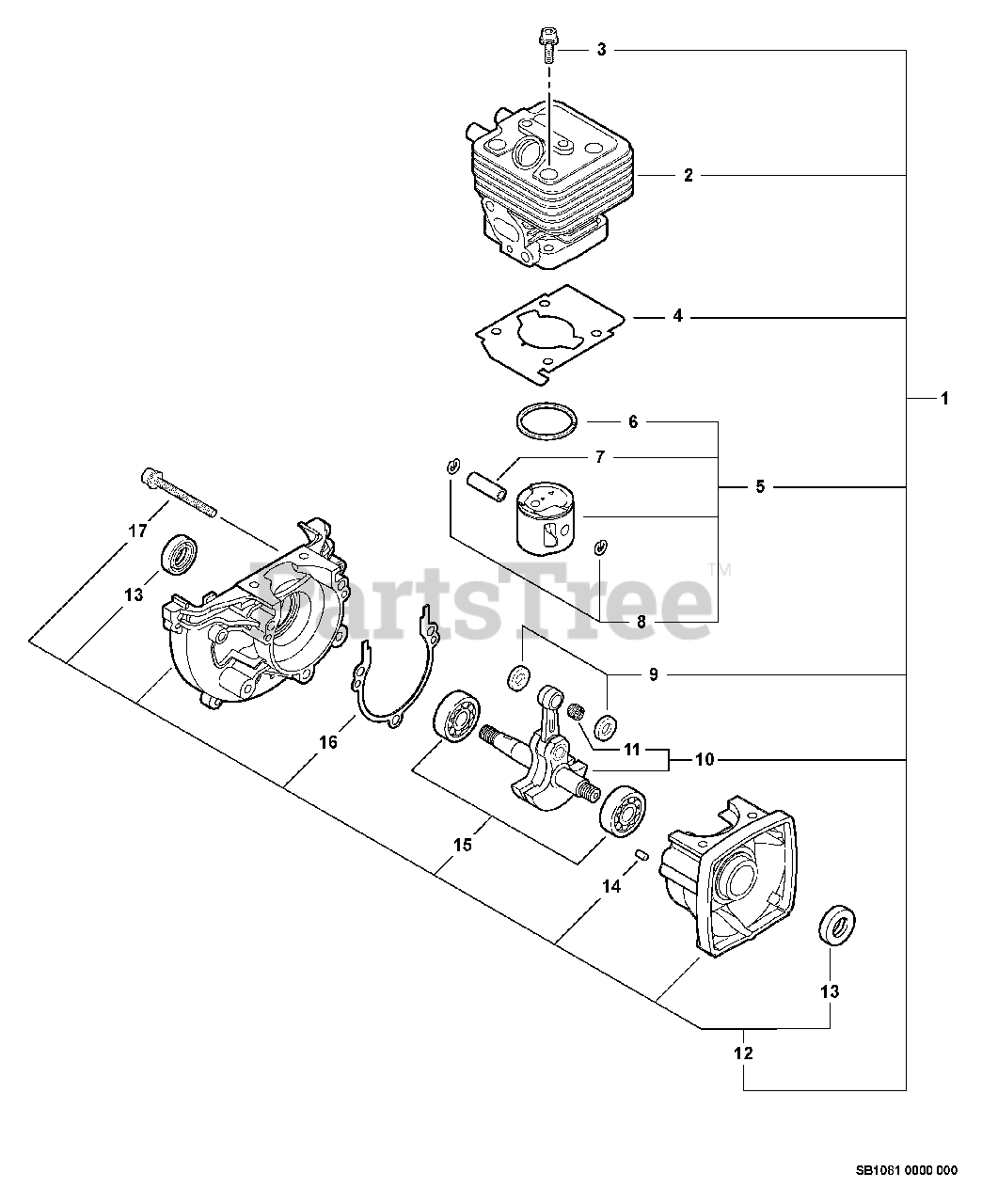

Engine, Short Block -- SB1081 Parts Diagram

  • Title

1

Echo SB1081

SHORT BLOCK -- SB1081

Note: Includes ITEMS 2-17

$179.99

$

Usually ships in 2-4 days

0

2

Echo A130000672

CYLINDER

$147.99

$

Usually ships in 2-4 days

0

3

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000181

GASKET, CYLINDER

$7.49

$

Usually ships in 2-4 days

0

5

Echo P021008221

PISTON KIT

Note: Includes ITEMS 6-9

$67.99

$

Usually ships in 2-4 days

0

6

Echo A101000100

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

7

Echo V606000000

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo A011000371

CRANKSHAFT ASSY

Note: Includes ITEM 11

$110.99

$

Usually ships in 2-4 days

0

11

Echo V553000010

BEARING, NEEDLE - 8

$9.99

$

In Stock, only 2 left!

0

12

Echo P021008231

CRANKCASE KIT

Note: Includes ITEMS 13-17

$114.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 13

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0
