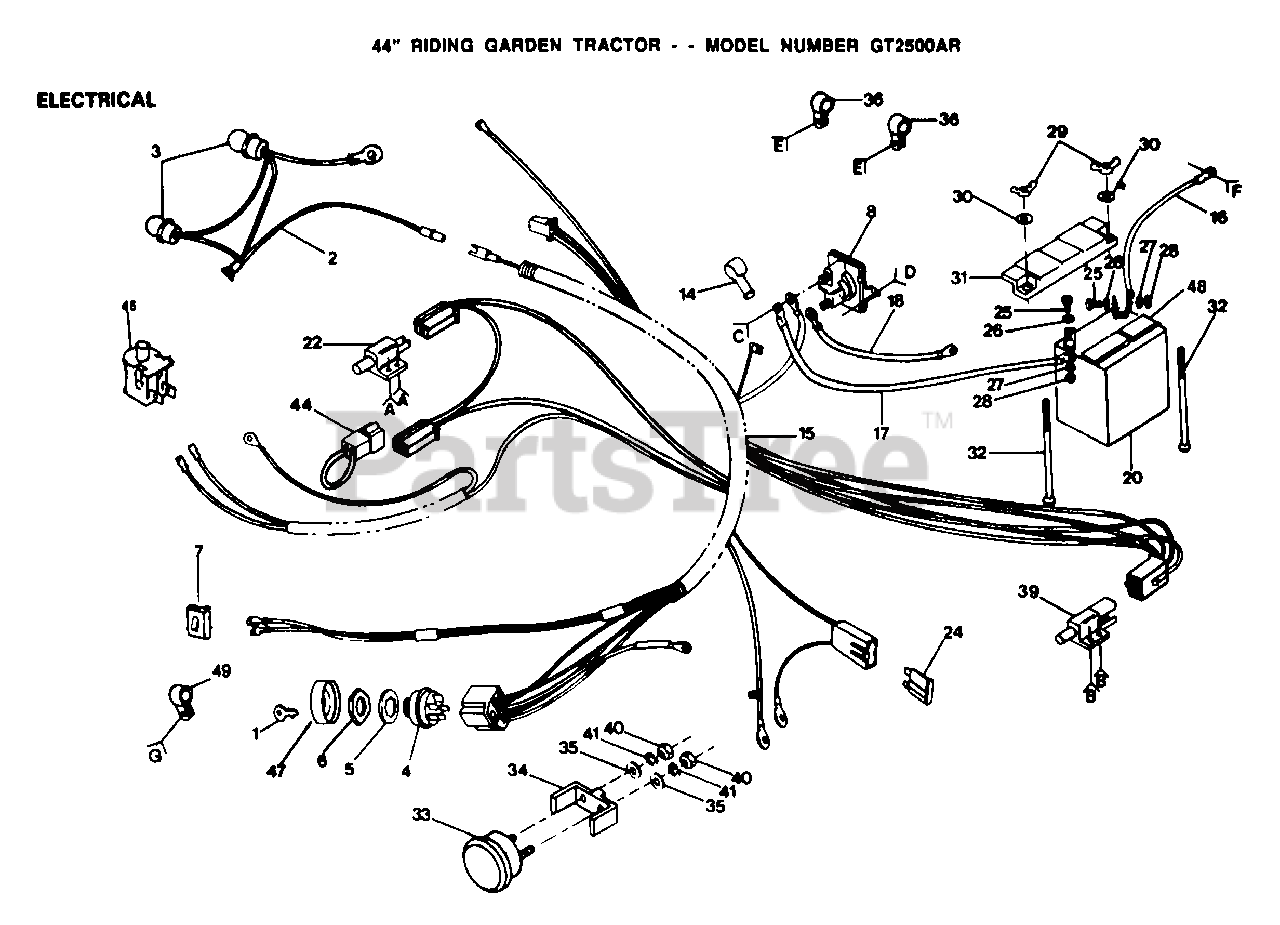

GT 2500 AR - Electrolux/AYP Garden Tractor ELECTRICAL, BATTERY Parts Diagram

Garden Tractor

ELECTRICAL, BATTERY Parts Diagram

  • Title
1

Electrolux/AYP 7552H

SUB= STD365410

$

$

Not available

2

Electrolux/AYP 7661J

HARNESS T
(Superseded to 583776001)

$

$

Not available

3

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

5

Electrolux/AYP 19221616

WASHER T
(Superseded to 583610001)

$

$

Not available

6

Electrolux/AYP 109788X

SUB= 124211X

$

$

Not available

7

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 2 left!

0

8

$

$

Not available

14

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

15

$

$

Not available

16

Electrolux/AYP 4799J

"CABLE T, BATTERY"
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 109670X

CABLE LT
(Superseded to 583658101)

$

$

Not available

18

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 121537X

SUB= 123899X

$

$

Not available

22

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

29

$

$

Not available

30

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

32

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 9433R

AMMETER T
(Superseded to 532124900)

$45.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 6009J

SUB= 532131708
(Superseded to 532124901)

$

$

Not available

35

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 235R

CLIPT
(Superseded to 583730001)

$2.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

$

$

Not available

41

Electrolux/AYP 10101000

SUB= 10071000

$

$

Not available

44

Electrolux/AYP 102501X

SUB= 141940
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

47

$

$

Not available

48

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

49

Electrolux/AYP 235R

CLIPT
(Superseded to 583730001)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available

Electrolux/AYP 101572X

SHEET-INSTRUCTION (FRENCH)
(Superseded to 532101572)

$

$

Not available

$

$

Not available

Electrolux/AYP 121241X

OWNER'S MANUAL

$

$

Not available
