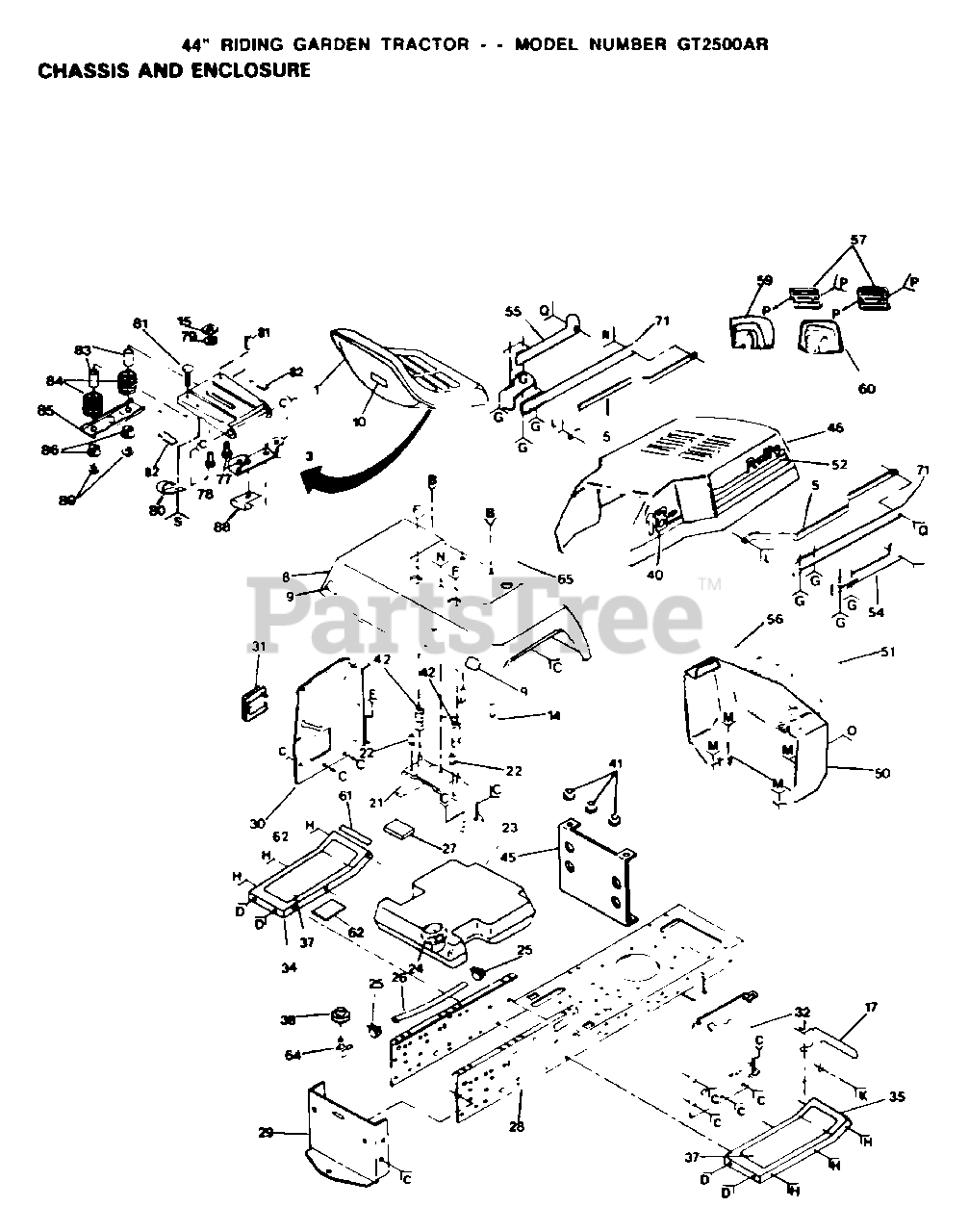

GT 2500 AR - Electrolux/AYP Garden Tractor CHASSIS, ENCLOSURES, SEAT Parts Diagram

Garden Tractor

CHASSIS, ENCLOSURES, SEAT Parts Diagram

  • Title

1

Electrolux/AYP 110932X

SUB= 140121

$

$

Not available

2

Electrolux/AYP 121247X

SUB= 155925

$

$

Not available

3

Electrolux/AYP 105513X

SUB= 140551

$

$

Not available

5

Electrolux/AYP 109587X

NLA

$

$

Not available

8

Electrolux/AYP 121642X366

SUB= 121642X419

$

$

Not available

9

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

10

Electrolux/AYP 109323X

NLA

$

$

Not available

14

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

15

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 108885X

GUARD MUFFLER HYT

$

$

Not available

21

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

22

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

24

Electrolux/AYP 121221X

SUB= 158990

$

$

Not available

25

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

26

Electrolux/AYP 5277J

SUB= 8543R

$

$

Not available

27

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

28

Electrolux/AYP 121277X

CHASSIS ASSY

$

$

Not available

29

Electrolux/AYP 121306X

SUB= 127866
(Superseded to 127866)

$

$

Not available

30

Electrolux/AYP 109665X

SUB= 532132072

$

$

Not available

31

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

32

Electrolux/AYP 106976X

PANEL DASH RH YT

$

$

Not available

34

Electrolux/AYP 105465X366

FOOTREST - L.H.

$

$

Not available

35

Electrolux/AYP 105464X366

FOOTREST - R.H.

$

$

Not available

37

Electrolux/AYP 108256X

PAD FOOTREST T
(Superseded to 532108256)

$

$

Not available

38

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 121649X

NLA

$

$

Not available

41

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

42

Electrolux/AYP 121067X

SPRING T

$

$

Not available

45

Electrolux/AYP 104920X

NLA

$

$

Not available

46

Electrolux/AYP 3607J366

SUB= 3607J419

$

$

Not available

50

Electrolux/AYP 5351J366

SUB= 5351J419

$

$

Not available

51

Electrolux/AYP 109673X

NLA

$

$

Not available

52

Electrolux/AYP 109754X

NLA

$

$

Not available

53

Electrolux/AYP 109753X

NLA

$

$

Not available

54

Electrolux/AYP 677A876

STRAP ASSY T

$

$

Not available

55

Electrolux/AYP 677A875

STRAP ASSY T

$

$

Not available

56

Electrolux/AYP 101235L

SCREEN GRILL GTV

$

$

Not available

57

Electrolux/AYP 109671X

LENS T

$

$

Not available

59

Electrolux/AYP 7606J366

SUB= 7606J361

$

$

Not available

60

Electrolux/AYP 7607J366

SUB= 7607J361

$

$

Not available

61

Electrolux/AYP 1133J

SUB= 101892X

$

$

Not available

62

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

65

Electrolux/AYP 109823X

SUB= 120822X

$

$

Not available

71

Electrolux/AYP 677A432

STRAP ASSY-REAR T
(Superseded to 583773401)

$3.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 19151616

SUB= 19171616

$

$

Not available

77

Electrolux/AYP 121144X

SUB= 127018X

$

$

Not available

78

Electrolux/AYP 74780816

BOLT
(Superseded to 582741301)

$2.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

81

Electrolux/AYP 72170410

BOLT
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

83

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

84

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

88

Electrolux/AYP 4171R

CLIP T

$

$

Not available

89

Electrolux/AYP 73900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0
