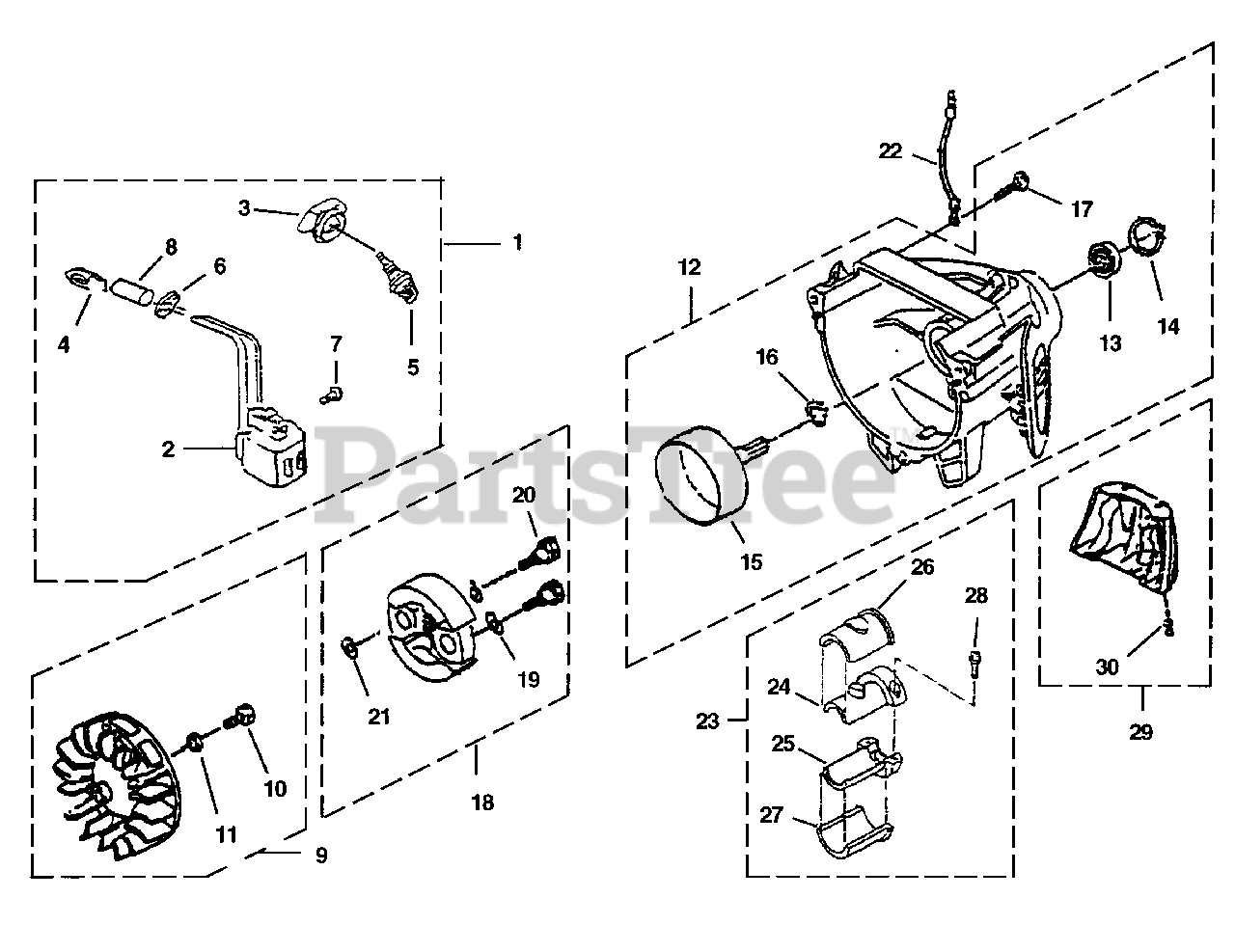

GT 25 (UT-26053) - Green Machine String Trimmer Ignition - Rotor - Clutch - Isolator Parts Diagram

String Trimmer

Ignition - Rotor - Clutch - Isolator Parts Diagram

  • Title

1

Homelite UP05177

IGNITION KIT

$

$

Currently unavailable

2

Homelite PS00593

MODULE-Ignition

$

$

Not available

3

Homelite PS00856

CAP-Plug

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite PS02691

SPARK PLUG

Note: Torque Specs: 105-155 In/Lbs, 11.9-17.5 Nm

$

$

Currently unavailable

6

Homelite PS00595

GROMMET

$

$

Not available

7

Homelite PS00857

SCREW ASSEMBLY

Note: Torque Specs: 38-42 In/Lbs, 4.3-4.7 Nm

$2.49

$

Usually ships in 3-7 days

0

8

Homelite PS00597

SLEEVE

$

$

Not available

9

Homelite UP00476

ROTOR ASSEMBLY

$

$

Not available

10

Homelite PS00817

BOLT ASSEMBLY

Note: Torque Specs: 96-112 In/Lbs, 10.8-12.7 Nm

$

$

Not available

11

Homelite PS00816

WASHER

$

$

Not available

12

Homelite UP00477

CLUTCH HOUSING

$

$

Not available

13

Homelite PS00505

BEARING-Ball

$

$

Not available

14

Homelite PS00506

SNAP RING-Inner

$

$

Not available

15

Homelite PS01100

CLUTCH DRUM

$

$

Not available

16

Homelite PS00508

SNAP RING-Outer

$

$

Not available

17

Homelite PS00592

SCREW-Socket Hd (M5 x 20)

Note: Torque Specs: 38-42 In/Lbs, 4.3-4.7 Nm

$

$

Not available

18

Homelite UP00475

CLUTCH ASSEMBLY

$

$

Not available

19

Homelite PS00586

WASHER

$

$

Not available

20

Homelite PS00826

BOLT-Clutch

Note: Torque Specs: 65-87 In/Lbs, 7.3-9.8 Nm

$

$

Not available

21

Homelite PS00588

WASHER

$

$

Not available

22

Homelite PS00608

WIRE

$

$

Currently unavailable

23

Homelite UP00479

DRIVESHAFT ISOLATOR ASSEMBLY

$

$

Not available

24

Homelite PS00598

BRACKET

$

$

Currently unavailable

25

Homelite PS00599

BRACKET

$

$

Currently unavailable

26

Homelite PS00600

ISOLATOR

$

$

Not available

27

Homelite PS00601

ISOLATOR

$

$

Not available

28

Homelite PS00518

SCREW-Socket Hd (M5 x 18 SW)

$

$

Not available

29

Homelite UP00483

ENGINE STAND

$

$

Not available

30

Homelite PS00802

SCREW ASSEMBLY (M5 x 14)

$

$

Not available
