GT 25 (UT-26040) - Green Machine String Trimmer Ignition, Rotor, Clutch & Isolator Parts Diagram

String Trimmer

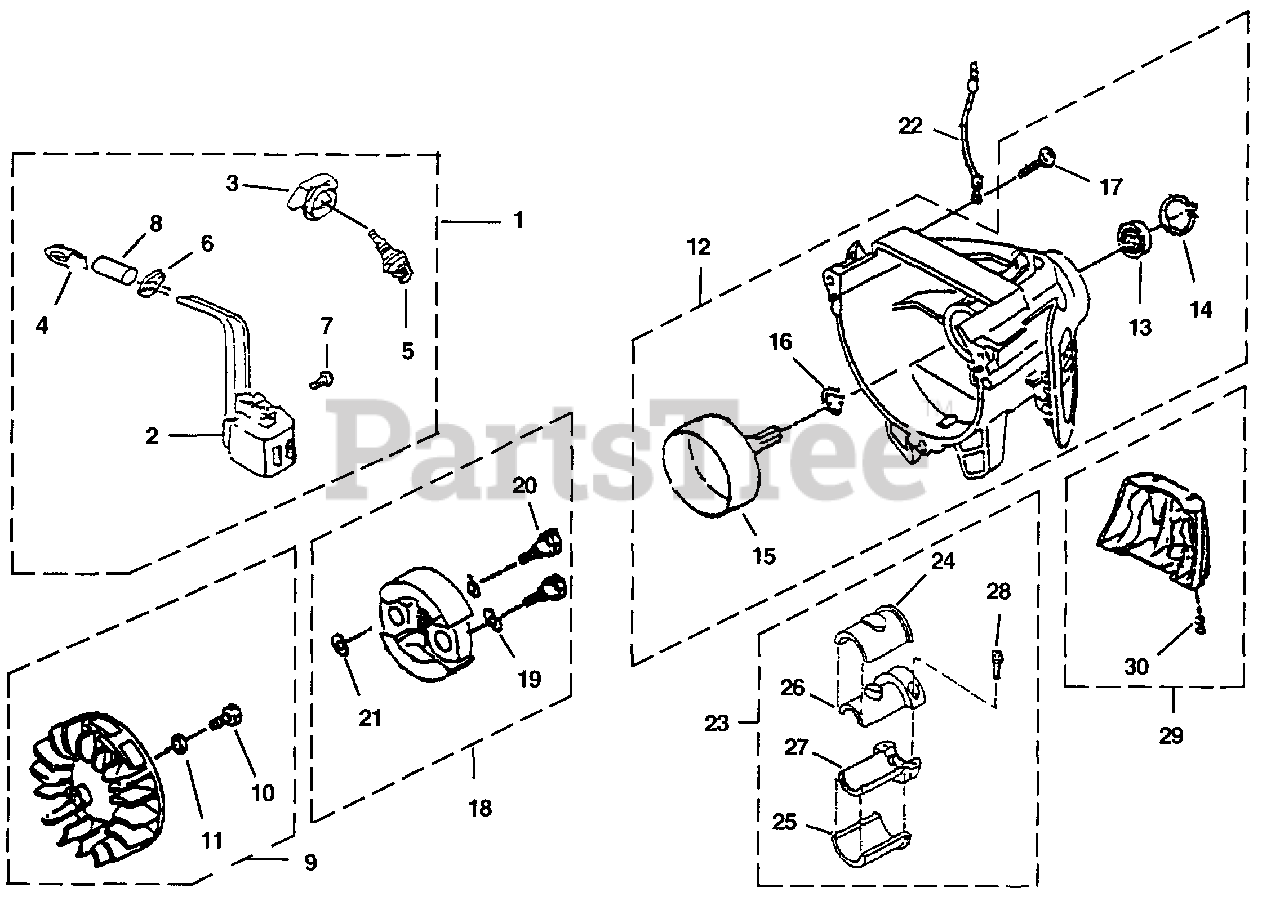

Ignition, Rotor, Clutch & Isolator Parts Diagram

  • Title

1

Homelite UP00478

IGNITION KIT

$

$

Not available

2

Homelite PS00593

MODULE - Ignition

$

$

Not available

3

Homelite PS00856

CAP - Plug

$

$

Not available

4

Homelite PS00499

SPRING - Plug Cap

$

$

Not available

5

Homelite UP02950

SPARK PLUG

Note: (Torque Specs: 105-155 In/Lbs, 11.9-17.5 Nm)

$

$

Not available

6

Homelite PS00595

GROMMET

$

$

Not available

7

Homelite PS00857

SCREW ASSEMBLY (M4 x 20)

Note: (Torque Specs: 18-26 In/Lbs, 2.0-2.9 Nm)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite PS00597

SLEEVE

$

$

Not available

9

Homelite UP00476

ROTOR ASSEMBLY

$

$

Not available

10

Homelite PS00817

BOLT ASSEMBLY (M6 x 16)

Note: (Torque Specs: 79-95 In/Lbs, 8.9-10.7 Nm)

$

$

Not available

11

Homelite PS00816

WASHER

$

$

Not available

12

Homelite UP00477

CLUTCH HOUSING

$

$

Not available

13

Homelite PS00505

BEARING - Ball

$

$

Not available

14

Homelite PS00506

SNAP RING - Inner

$

$

Not available

15

Homelite PS01100

CLUTCH DRUM

$

$

Not available

16

Homelite PS00508

SNAP RING - Outer

$

$

Not available

17

Homelite PS00592

SCREW - Socket Hd (M5 x 20)

Note: (Torque Specs: 38-42 In/Lbs, 4.3-4.7 Nm)

$

$

Not available

18

Homelite UP00475

CLUTCH ASSEMBLY

$

$

Not available

19

Homelite PS00586

WASHER

$

$

Not available

20

Homelite PS00826

BOLT - Clutch (M6 x 25)

Note: (Torque Specs: 65-87 In/Lbs, 7.3-9.8 Nm)

$

$

Not available

21

Homelite PS00588

WASHER

$

$

Not available

22

Homelite PS00608

WIRE

$

$

Currently unavailable

23

Homelite UP00479

DRIVESHAFT ISOLATOR ASSEMBLY

$

$

Not available

24

Homelite PS00598

BRACKET

$

$

Currently unavailable

25

Homelite PS00599

BRACKET

$

$

Currently unavailable

26

Homelite PS00600

ISOLATOR

$

$

Not available

27

Homelite PS00601

ISOLATOR

$

$

Not available

28

Homelite PS00518

SCREW - Socket Hd (M5 x 18 SW)

Note: (Torque Specs: 36-44 In/Lbs, 4.1-5.0 Nm)

$

$

Not available

29

Homelite UP00483

ENGINE STAND

$

$

Not available

30

Homelite PS00802

SCREW ASSEMBLY (M5 x 14)

Note: (Torque Specs: 36-44 In/Lbs, 4.1-5.0 Nm)

$

$

Not available
