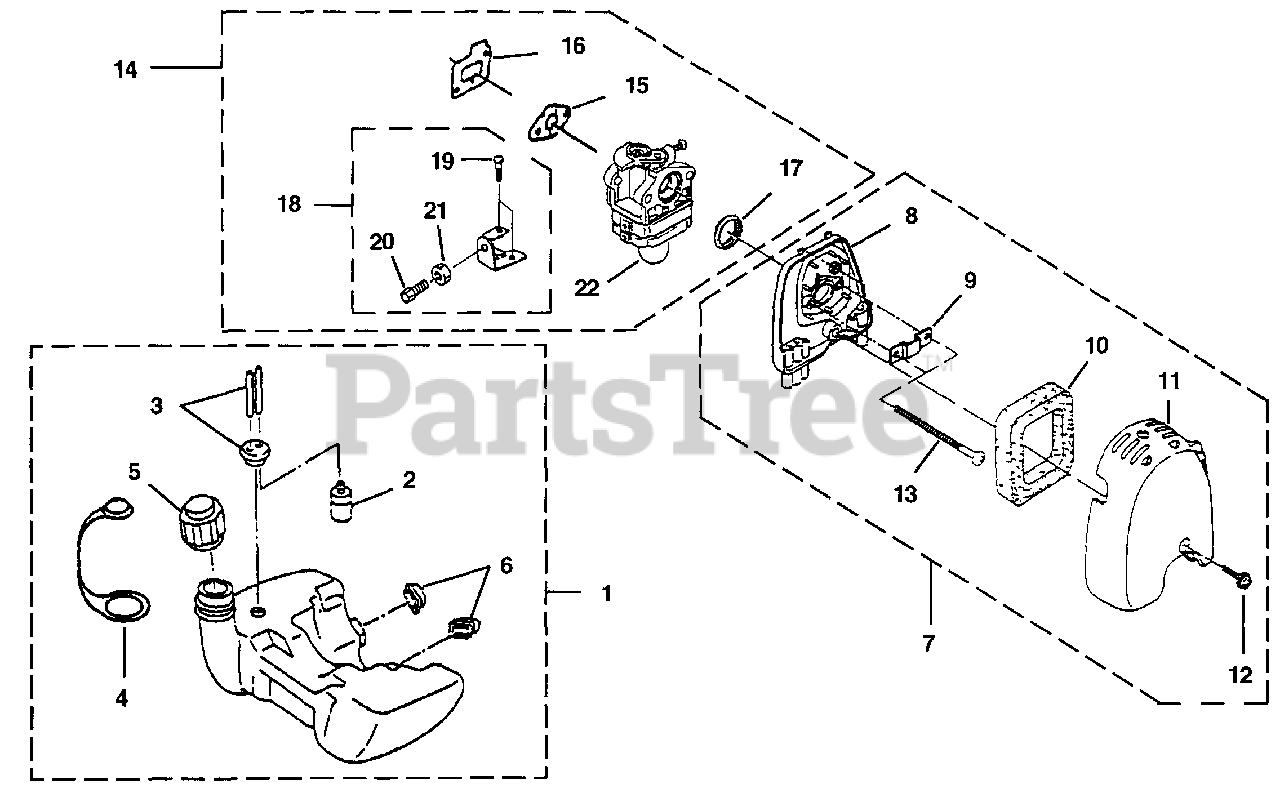

GT 25 (UT-26040) - Green Machine String Trimmer Air Filter, Carburetor & Fuel Tank Parts Diagram

String Trimmer

Air Filter, Carburetor & Fuel Tank Parts Diagram

  • Title

1

Homelite UP00480

FUEL TANK ASSEMBLY

$

$

Not available

2

Homelite PS00520

FILTER - Fuel

$

$

Currently unavailable

3

Homelite PS00521

TUBE

$

$

Not available

4

Homelite PS00522

CAP - Retainer
(Superseded to UP02946)

$

$

Not available

5

Homelite UP02946

CAP - Fuel

$

$

Not available

6

Homelite UP00481

RUBBER BUMPER KIT

$

$

Not available

7

Homelite UP00486

AIR FILTER ASSEMBLY

$

$

Not available

8

Homelite PS00612

BODY - Air Filter

$

$

Not available

9

Homelite PS00546

PLATE - Air Filter

$

$

Not available

10

Homelite UP02947

FILTER - Air

$

$

Not available

11

Homelite PS00548

COVER - Air Filter

$

$

Not available

12

Homelite PS00802

SCREW ASSEMBLY (M5 x 14)

Note: (Torque Specs: 11-15 In/Lbs, 1.2-1.7 Nm)

$

$

Not available

13

Homelite PS00614

SCREW (M5 x 50)

Note: (Torque Specs: 19-25 In/Lbs, 2.1-2.8 Nm)

$

$

Not available

14

Homelite UP00783

CARBURETOR ASSEMBLY

$

$

Not available

15

Homelite PS00582

GASKET - Carburetor

$

$

Not available

16

Homelite PS00581

GASKET - Heat Dam

$

$

Not available

17

Homelite PS00541

RING - Packing

$

$

Not available

18

Homelite UP00485

CABLE BRACKET ASSEMBLY

$

$

Not available

19

Homelite PS00542

SCREW - Throttle Collar (M5 x 18)

Note: (Torque Specs: 48-56 In/Lbs, 5.4-6.3 Nm)

$

$

Not available

20

Homelite PS00611

SCREW - Cable Adjust

$

$

Not available

21

Homelite PS00544

NUT - Cable Adjust

$

$

Not available

22

Homelite PS01441

PRIMER BULB
(Superseded to UP04802)

$8.49

$

In Stock, only 4 left!
