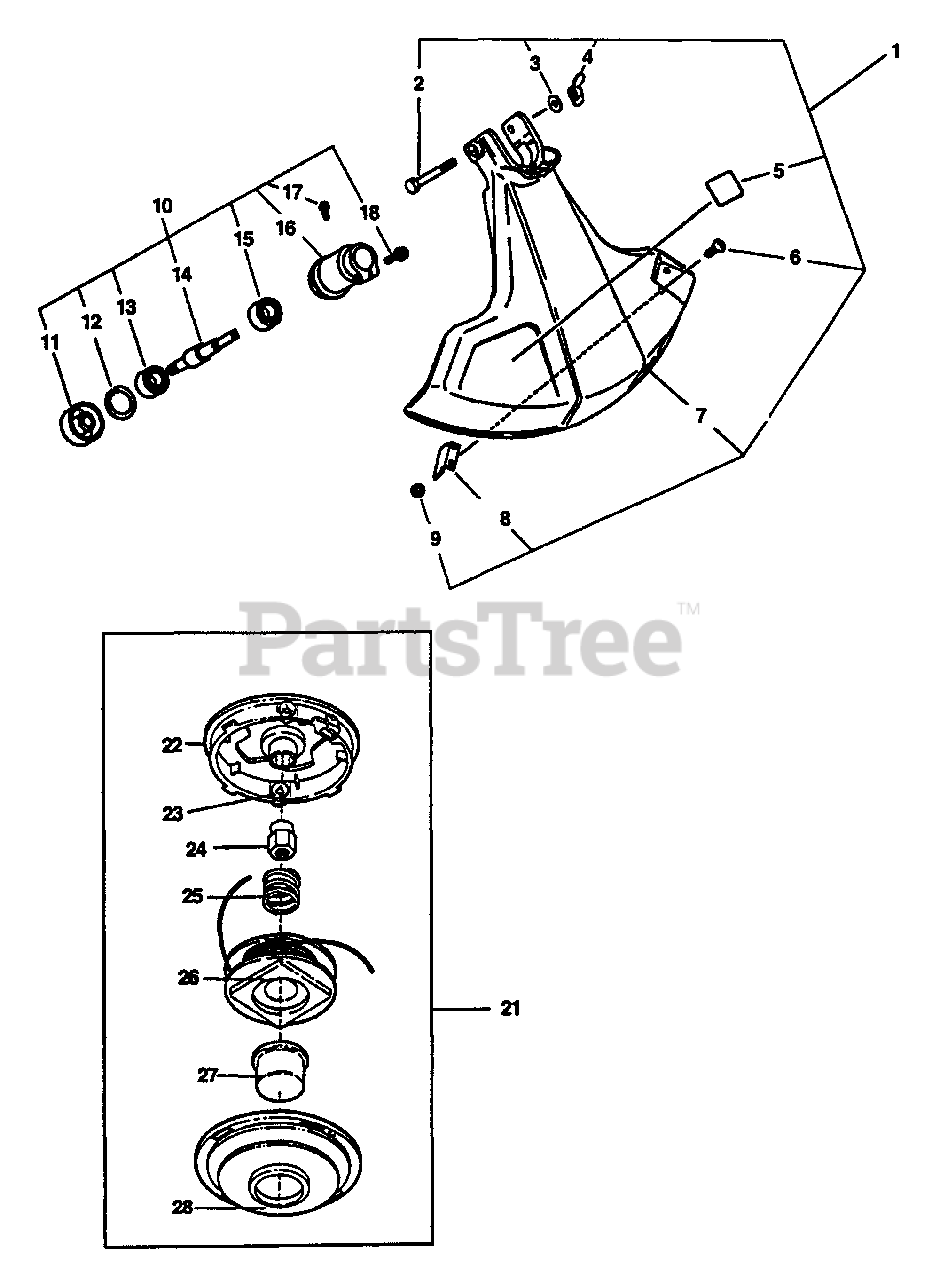

GT-2400 - Echo String Trimmer (Type 1E) Shield, Gear Case, Line Head Parts Diagram

String Trimmer (Type 1E)

Shield, Gear Case, Line Head Parts Diagram

  • Title

1

Echo 69900440630

DEBRIS SHIELD KIT
(Superseded to 69900452730)

Note: INCLUDES ITEMS 2 - 9

$19.99

$

In Stock, only 1 left!

0

2

Echo 90001708064

BOLT - 1/4-20 X 2"

$0.99

$

In Stock, Qty 18

0

3

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 9

0

4

Echo 90003000008

NUT - 1/4-20
(Superseded to 740000670)

$0.99

$

In Stock, Qty 8

0

5

Echo 89016844330

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

6

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

7

Echo 69901044330

SHIELD, DEBRIS - PLASTIC
(Superseded to 69901044331)

$10.99

$

Usually ships in 2-4 days

0

8

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 61040452430

GEAR CASE ASSY
(Superseded to C056000010)

Note: Includes ITEMS 11-18

$58.99

$

Usually ships in 2-4 days

0

11

Echo 61030552430

ADAPTOR, BLADE - UPPER
(Superseded to C535000240)

$22.99

$

In Stock, only 3 left!

0

12

Echo 90070200030

RING, RETAINING - 30

$2.49

$

In Stock, only 2 left!

0

13

Echo 90081106200

BEARING, BALL - 6200

$5.99

$

Usually ships in 2-4 days

0

14

Echo 61031052430

GEAR - SHAFT
(Superseded to C534000341)

$23.99

$

In Stock, only 1 left!

0

15

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

16

Echo 61041052430

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

17

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

18

Echo 90015205025

BOLT - 5X25

$1.49

$

In Stock, Qty 9

0

21

Echo 99944200240

KNIFE, TRIMMER LINE

Note: ACCESSORIES. INCLUDES ITEMS 21 - 27

$33.99

$

In Stock, only 4 left!

0

22

Echo 69621052730

HOUSING

Note: ACCESSORIES

$15.99

$

Usually ships in 2-4 days

0

23

Echo 69621252730

EYELET
(Superseded to 215703)

Note: ACCESSORIES

$1.99

$

In Stock, Qty 10

0

24

Echo 69621152730

BOLT

Note: ACCESSORIES

$9.49

$

In Stock, only 3 left!

0

25

Echo 69621652730

SPRING
(Superseded to 215405)

Note: ACCESSORIES

$1.99

$

In Stock, Qty 5

0

26

Echo 69621452730

SPOOL ASSY

Note: ACCESSORIES

$8.49

$

In Stock, Qty 13

0

27

Echo 69621952730

BUTTON
(Superseded to 215407)

Note: ACCESSORIES

$5.49

$

In Stock, only 1 left!

0

28

Echo 69621752730

COVER

Note: ACCESSORIES

$12.99

$

In Stock, Qty 8

0

Echo 215111

MAXI-CUT

Note: ACCESSORIES. ITEM NOT SHOWN

$

$

Currently unavailable
