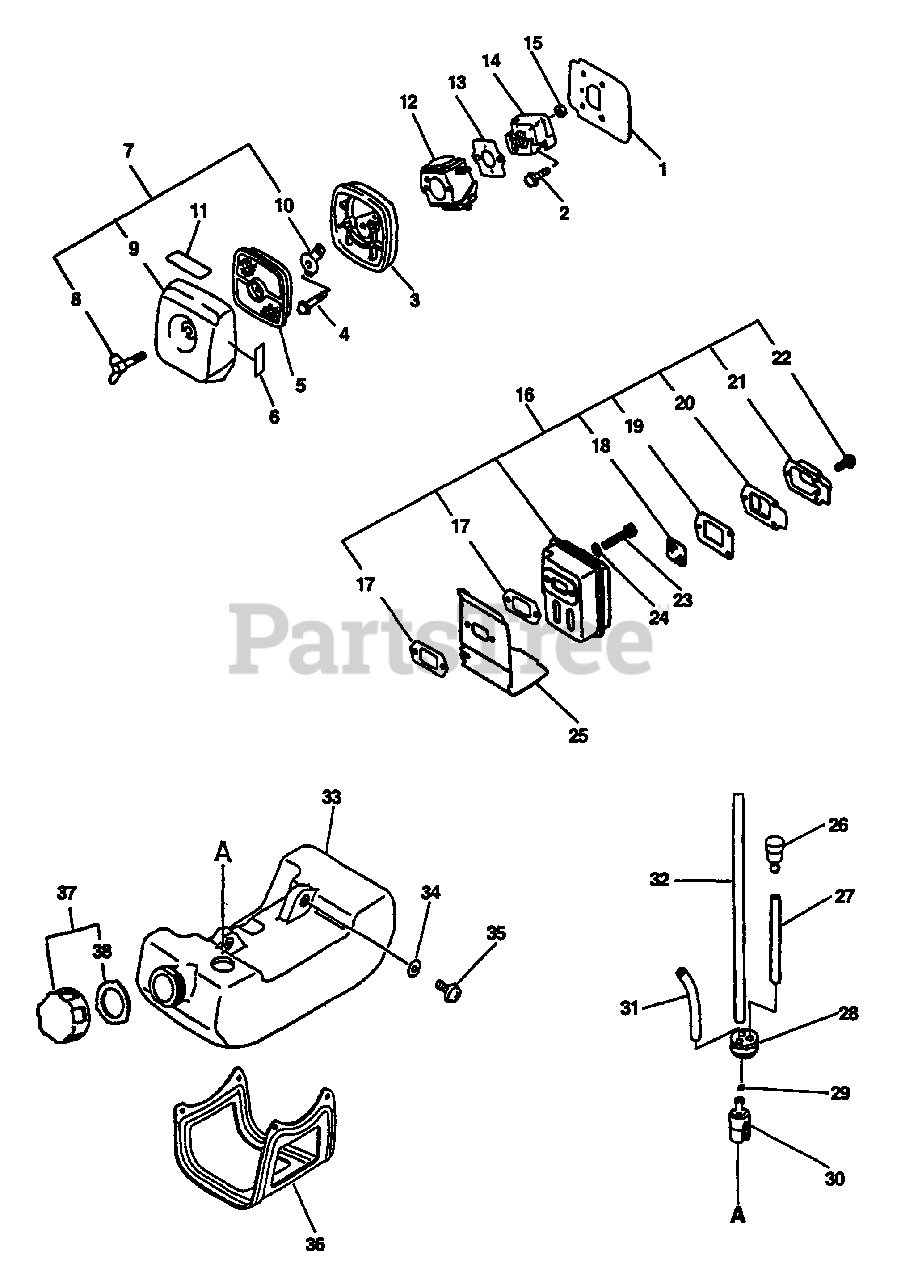

GT-2400 - Echo String Trimmer (Type 1E) Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

String Trimmer (Type 1E)

Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN KIT P/N 88900005960

$2.49

$

In Stock, only 2 left!

0

2

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

3

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$12.99

$

In Stock, Qty 7

0

4

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: INCLUDED IN KIT P/N 90008

$7.49

$

In Stock, Qty 20+

0

6

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

7

Echo 13030206561

COVER, AIR FILTER - GRAY

Note: INCLUDES ITEMS 8 - 10

$7.99

$

In Stock, Qty 10

0

8

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

9

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

10

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

11

Echo 89033552730

LABEL - CHOKE

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12300052131

CARBURETOR WT-424A
(Superseded to 12300052132)

$94.99

$

Usually ships in 2-4 days

0

13

Echo 13001005960

GASKET, INTAKE

Note: INCLUDED IN KIT P/N 88900005960

$1.99

$

In Stock, only 2 left!

0

14

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

15

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: Includes ITEMS 17 - 22

$

$

Not available

17

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900005960

$0.99

$

In Stock, Qty 16

0

18

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

19

Echo 14586642031

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900005960

$2.49

$

In Stock, Qty 5

0

20

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

21

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.49

$

Usually ships in 2-4 days

0

22

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

23

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 12

0

24

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

26

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

Note: INCLUDED IN KIT P/N 90010

$7.49

$

In Stock, Qty 9

0

27

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

28

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

29

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

30

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: INCLUDED IN KIT P/N 90008

$5.49

$

In Stock, Qty 20+

0

31

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

32

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

33

Echo 13100544331

TANK, FUEL
(Superseded to 13100544332)

$20.99

$

In Stock, only 1 left!

0

34

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

36

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

37

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: INCLUDES ITEM 38. (INCLUDED IN KIT P/N 90010)

$4.49

$

In Stock, only 1 left!

0

38

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
