GT-2400 - Echo String Trimmer (Type 1E) Engine, Fan Housing Cover Parts Diagram

String Trimmer (Type 1E)

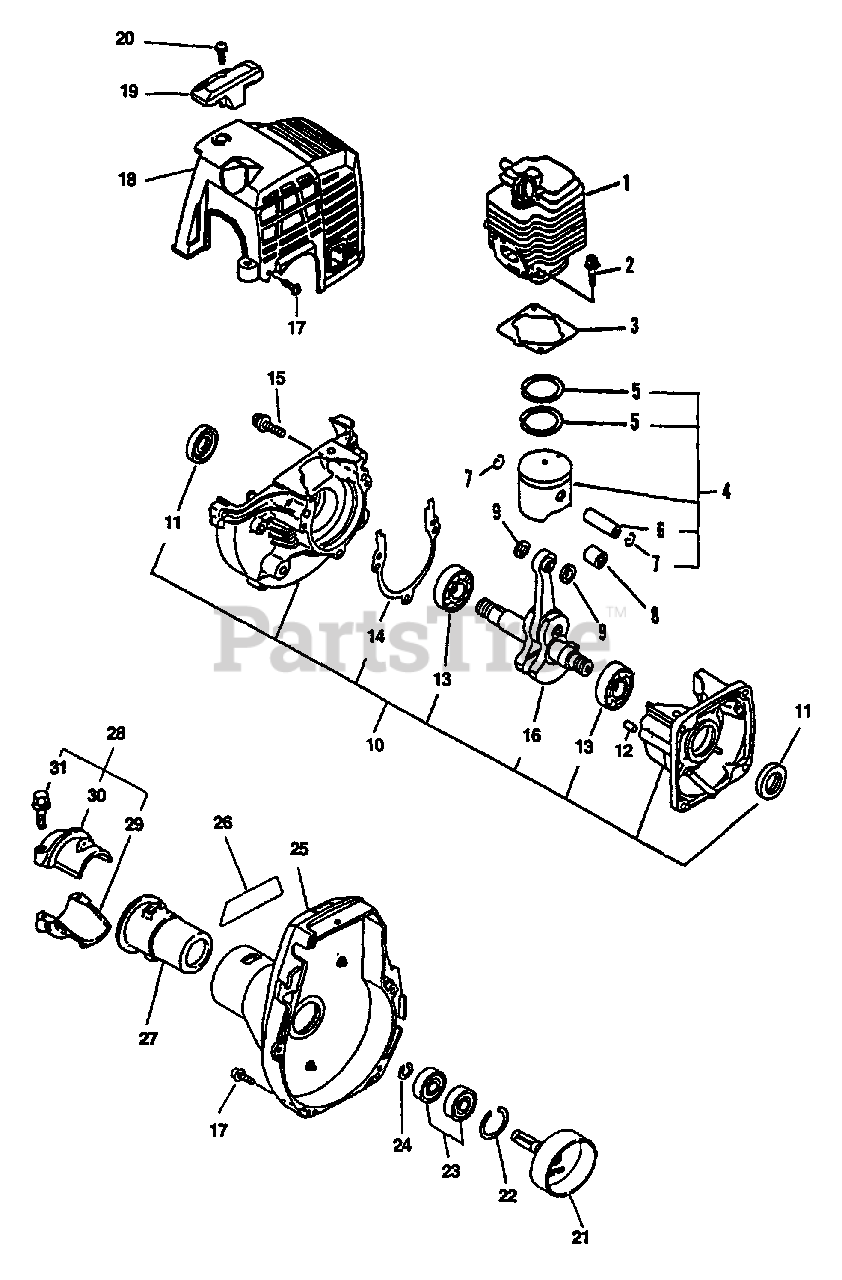

Engine, Fan Housing Cover Parts Diagram

  • Title

1

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE GASKET KIT P/N 88900005960

$3.99

$

In Stock, only 4 left!

0

4

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: INCLUDES ITEMS 5 - 7 & 9

$70.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

------------------

CRANKCASE KIT

Note: (USE P/N SB1027). INCLUDES ITEMS 11 - 15

$

$

Not available

11

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

14

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900005960

$

$

Not available

15

Echo 90016205028

SCREW - 5X28

Note: Includes ITEM 8

$1.99

$

In Stock, Qty 19

0

16

------------------

CRANKSHAFT ASSY

Note: (USE P/N SB1027)

$

$

Not available

17

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

18

Echo 10151448930

COVER, ENGINE

$11.99

$

In Stock, Qty 10

0

19

Echo 15991254130

GUARD - TOP

$7.99

$

In Stock, Qty 7

0

20

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

21

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$13.99

$

In Stock, Qty 6

0

22

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 19

0

23

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 6

0

24

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

25

Echo 10150352131

CASE, FAN

$65.99

$

In Stock, only 1 left!

0

26

Echo 89011252730

LABEL - MODEL GT-2400

$1.49

$

Usually ships in 2-4 days

0

27

Echo 61091052730

CUSHION
(Superseded to Discontinued)

$

$

Not available

28

Echo 61090352130

HOLDER KIT

Note: INCLUDES ITEMS 29 - 31

$13.99

$

Usually ships in 2-4 days

0

29

Echo 61092352130

CLAMP, MAIN PIPE - LOWER

$8.49

$

Usually ships in 2-4 days

0

30

Echo 61092251030

CLAMP, MAIN PIPE - UPPER

$5.49

$

Usually ships in 2-4 days

0

31

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

$

$

Not available

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 14

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 1 left!

0

Echo 90000

MAINTENANCE KIT
(Superseded to 90050)

Note: REPOWER KIT

$20.99

$

In Stock, Qty 7

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

Note: REPOWER KIT

$20.99

$

In Stock, Qty 7

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

Note: REPOWER KIT

$

$

Not available
