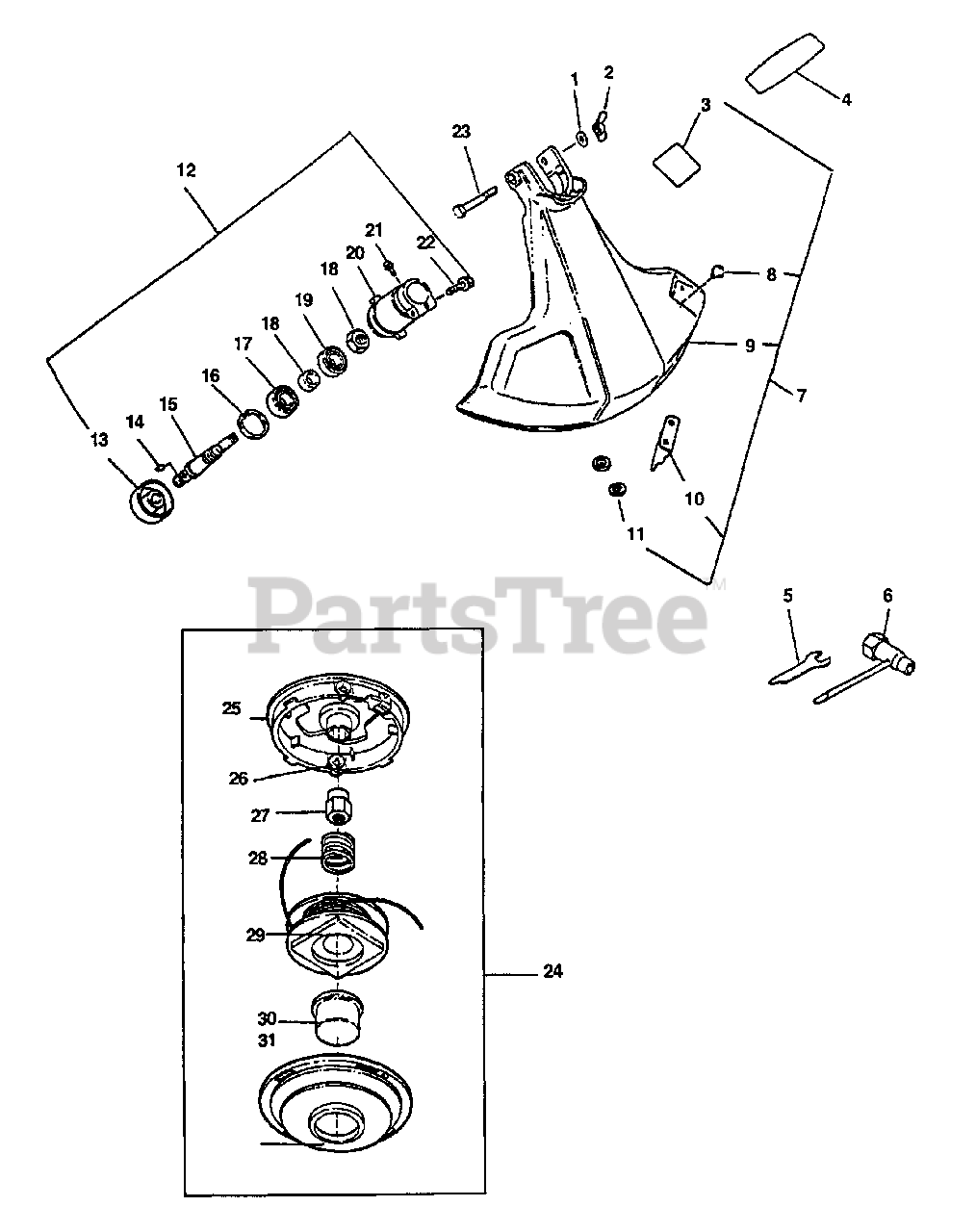

GT-2400 - Echo String Trimmer (Original Version) Shield, Gear Case, Tools, Line Head Parts Diagram

String Trimmer

Shield, Gear Case, Tools, Line Head Parts Diagram

  • Title

1

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

2

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

3

Echo 89016844330

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

4

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

Note: S/N 001001 - 093826

$0.99

$

In Stock, Qty 10

0

5

Echo 89541009460

T-WRENCH - 8X19mm
(Superseded to Discontinued)

$

$

Not available

6

Echo 89501526630

SPANNER - 10mm

$4.99

$

In Stock, only 1 left!

0

7

Echo 69900440630

DEBRIS SHIELD KIT
(Superseded to 69900452730)

Note: INCLUDES ITEMS 1 - 3, 8 - 11 & 23

$19.99

$

In Stock, only 1 left!

0

8

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

9

Echo 69901040631

SHIELD, DEBRIS - PLASTIC
(Superseded to 69901044330)

$10.99

$

Usually ships in 2-4 days

0

10

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 61040009630

GEAR CASE ASSY
(Superseded to 61040452430)

Note: (S/N 001001 - 096000). INCLUDES ITEMS 13-22

$58.99

$

In Stock, only 1 left!

0

12

Echo 61040452430

GEAR CASE ASSY
(Superseded to C056000010)

Note: (S/N 096001 & UP). INCLUDES ITEMS 13-22

$58.99

$

In Stock, only 1 left!

0

13

Echo 61031309630

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

14

Echo 90030530006

PIN - 3X6

$1.49

$

Usually ships in 2-4 days

0

15

Echo 61031009630

GEAR - SHAFT

$45.99

$

Usually ships in 2-4 days

0

16

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 16

0

17

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 4 left!

0

18

Echo 61031506530

SPACER

$1.49

$

Usually ships in 2-4 days

0

19

Echo 90051300012

NUT - 12 -- LEFT HAND

$2.49

$

Usually ships in 2-4 days

0

20

Echo 61041009630

CASE, GEAR
(Superseded to 61040452430)

$58.99

$

In Stock, only 1 left!

0

21

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 17

0

22

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

23

Echo 90010006050

BOLT - 6X50

Note: S/N 001001 - 102488

$0.99

$

In Stock, Qty 5

0

23

Echo 90001708064

BOLT - 1/4-20 X 2"

Note: S/N 102489 & UP

$0.99

$

In Stock, Qty 18

0

24

Echo 99944200240

KNIFE, TRIMMER LINE

Note: ACCESSORIES. INCLUDES ITEMS 25-31

$33.99

$

In Stock, only 4 left!

0

25

Echo 69621052730

HOUSING

Note: ACCESSORIES

$15.99

$

Usually ships in 2-4 days

0

26

Echo 69621252730

EYELET
(Superseded to 215703)

Note: ACCESSORIES

$1.99

$

In Stock, Qty 10

0

27

Echo 69621152730

BOLT

Note: ACCESSORIES

$9.49

$

In Stock, only 3 left!

0

28

Echo 69621652730

SPRING
(Superseded to 215405)

Note: ACCESSORIES

$1.99

$

In Stock, Qty 5

0

29

Echo 69621452730

SPOOL ASSY

Note: ACCESSORIES

$8.49

$

In Stock, Qty 13

0

30

Echo 69621952730

BUTTON
(Superseded to 215407)

Note: ACCESSORIES

$5.49

$

In Stock, only 1 left!

0

31

Echo 69621752730

COVER

Note: ACCESSORIES

$12.99

$

In Stock, Qty 8

0

Echo 99944200201

GT SHOULDER STRAP KIT

Note: ACCESSORIES

$23.99

$

Usually ships in 2-4 days

0

Echo 99944200020

GT MANUAL HEAD

Note: ACCESSORIES

$

$

Currently unavailable

Echo 215111

MAXI-CUT

Note: ACCESSORIES

$

$

Currently unavailable
