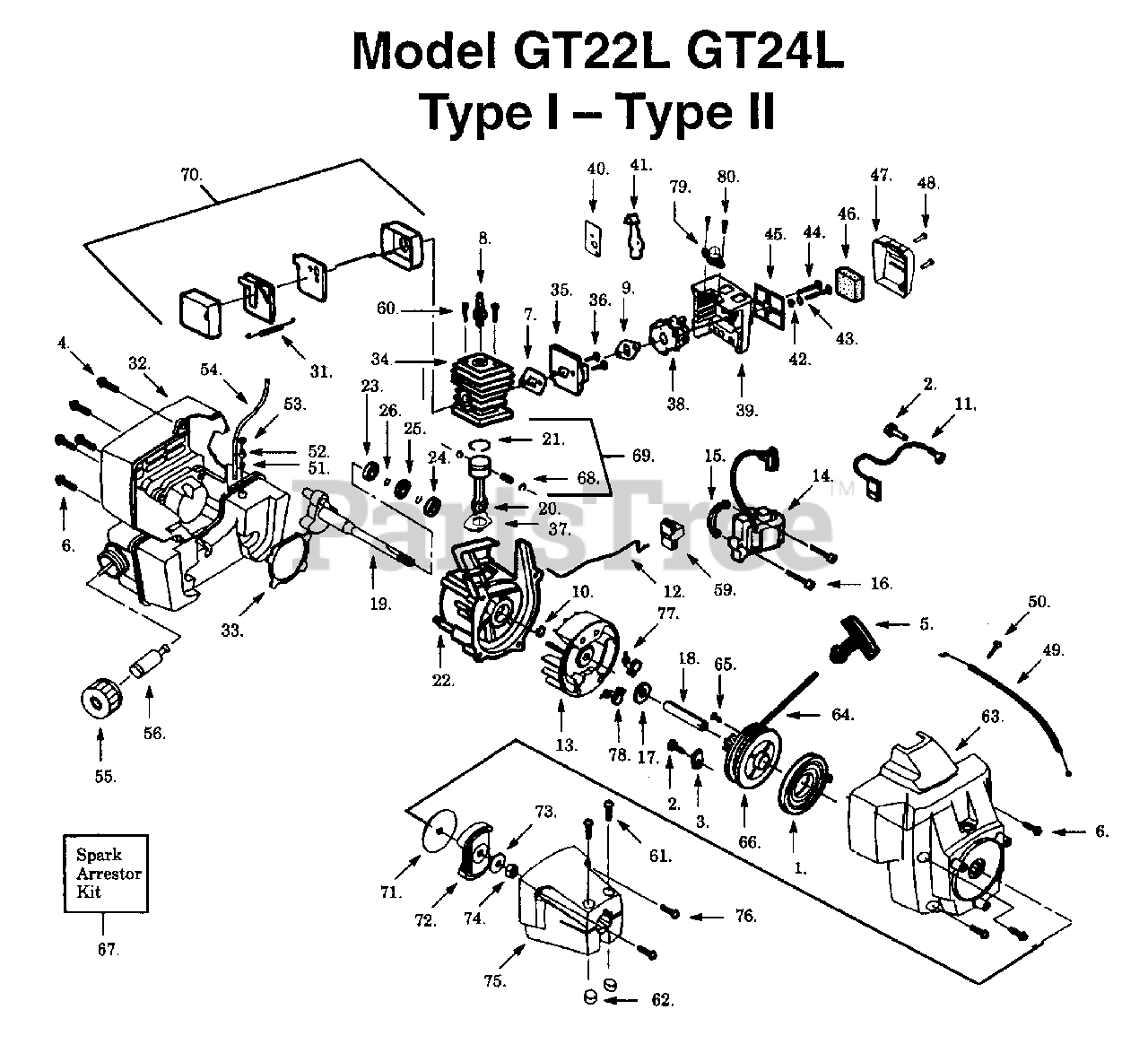

GT 24 L - Jonsered String Trimmer,TYPE I, TYPE II (1994-01) ENGINE Parts Diagram

String Trimmer,TYPE I, TYPE II

ENGINE Parts Diagram

  • Title
1

Jonsered 530029395

SPRING-STARTER
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

2

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

3

$7.49

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 1 left!

0

5

Jonsered 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

7

Jonsered 530019185

GASKET
(Superseded to 530019233)

$3.99

$

In Stock, only 1 left!

0

8

Jonsered 503235008

SPARK PLUG CJ8 NLA

$

$

Not available

9

Jonsered 530019183

GASKET
(Superseded to 530019194)

$6.49

$

In Stock, only 4 left!

0

10

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 530029606

LEADWIRE SWITCH

$

$

Not available

$0.99

$

Usually ships in 3-10 days

0

13

Jonsered 530039148

FLYWHEEL
(Superseded to 545221701)

$28.99

$

Usually ships in 3-10 days

0

14

Jonsered 530039163

IGNITION MODULE

$53.99

$

In Stock, only 1 left!

0

15

Jonsered 530036145

SPACER - IGNITION MODULE

$3.99

$

In Stock, only 3 left!

0

16

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

18

$0.99

$

Usually ships in 3-10 days

0

19

Jonsered 530014864

CRANKSHAFT ASSEMBLY

$21.99

$

Usually ships in 3-10 days

0

20

Jonsered 530014397

CONNECTING ROD
(Superseded to 530069615)

$24.99

$

Usually ships in 3-10 days

0

21

Jonsered 530036404

PISTON RING

$

$

Not available

22

Jonsered 530014861

CRANKCASE ASSY

$

$

Not available

23

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

24

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 530019179

SEALING RING

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

31

Jonsered 530029930

MUFFLER SPRING
(Superseded to 530016197)

$4.99

$

In Stock, Qty 5

0

5300374-87

Jonsered 530037487

TANK
(Superseded to 530047090)

$

$

Not available

5300470-90

$

$

Not available

33

Jonsered 530019181

GASKET, CRANKCASE

$6.49

$

Usually ships in 3-10 days

0

34

$

$

Not available

35

$

$

Not available

36

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

37

Jonsered 530019186

REPL BY 530 01 92-23
(Superseded to 530019223)

$4.99

$

In Stock, only 4 left!

0

5300353-29

Jonsered 530035329

CARBURETOR

$

$

Not available

5300353-50

Jonsered 530035350

CARBURETOR

$

$

Not available

5300373-11

$5.99

$

Usually ships in 3-10 days

0

5300379-66

$3.99

$

Usually ships in 3-10 days

0

40

Jonsered 530037326

CHOKE PLATE

$

$

Not available

41

Jonsered 530037325

CHOKE FLAP

$

$

Not available

42

$3.99

$

In Stock, only 2 left!

0

43

Jonsered 530015852

CHOKE SPACER

$3.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

45

Jonsered 530037413

FILTER PLATE

$

$

Not available

46

Jonsered 530037331

AIR FILTER FOAM

$3.99

$

In Stock, only 1 left!

0

47

Jonsered 530037292

AIR FILTER COVER

$

$

Not available

48

Jonsered 530015966

SCREW - THROTTLE HOUSING

$2.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 16

0

51

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 10

0

52

$

$

Not available

53

$

$

Not available

54

$7.99

$

In Stock, Qty 20+

0

55

Jonsered 530036874

REPL BY 530 01 43-47
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

56

Jonsered 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

59

Jonsered 530027958

No Description Available
(Superseded to 530038309)

$4.99

$

In Stock, Qty 8

0

$6.49

$

In Stock, Qty 7

0

61

Jonsered 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

62

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

63

Jonsered 530014922

REPL BY 530 04 74-93
(Superseded to 530047493)

$14.99

$

Usually ships in 3-10 days

0

64

$7.49

$

In Stock, Qty 20+

0

65

Jonsered 530015823

SCREW-6-19X9/32 PAN/SEM
(Superseded to 530016080)

$6.49

$

In Stock, only 1 left!

0

66

Jonsered 530069400

STARTER PULLEY KIT
(Superseded to 530071786)

$11.99

$

In Stock, Qty 7

0

67

Jonsered 530069380

KIT-SPARK ARRESTOR (OLD STYLE)

$6.49

$

Usually ships in 3-10 days

0

68

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

69

Jonsered 530069419

PISTON
(Superseded to 530069620)

$30.99

$

Usually ships in 3-10 days

0

70

$

$

Not available

71

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, Qty 10

0

72

Jonsered 530069491

CLUTCH ASSEMBLY KIT

$

$

Not available

73

Jonsered 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

$

$

Not available

76

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, only 4 left!

0

$

$

Not available

78

Jonsered 530029940

SPRING
(Superseded to 530047570)

$3.99

$

Usually ships in 3-10 days

0

79

Jonsered 530037972

PRIMER BULB ASSEMBLY
(Superseded to 530038874)

$

$

Not available

80

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 2 left!

0
