GT 23540 (2690258) - Snapper 54" Garden Tractor, 23hp 54" Mower Deck - Belt, Idler Arm & Hitch Group Parts Diagram

54" Garden Tractor, 23hp

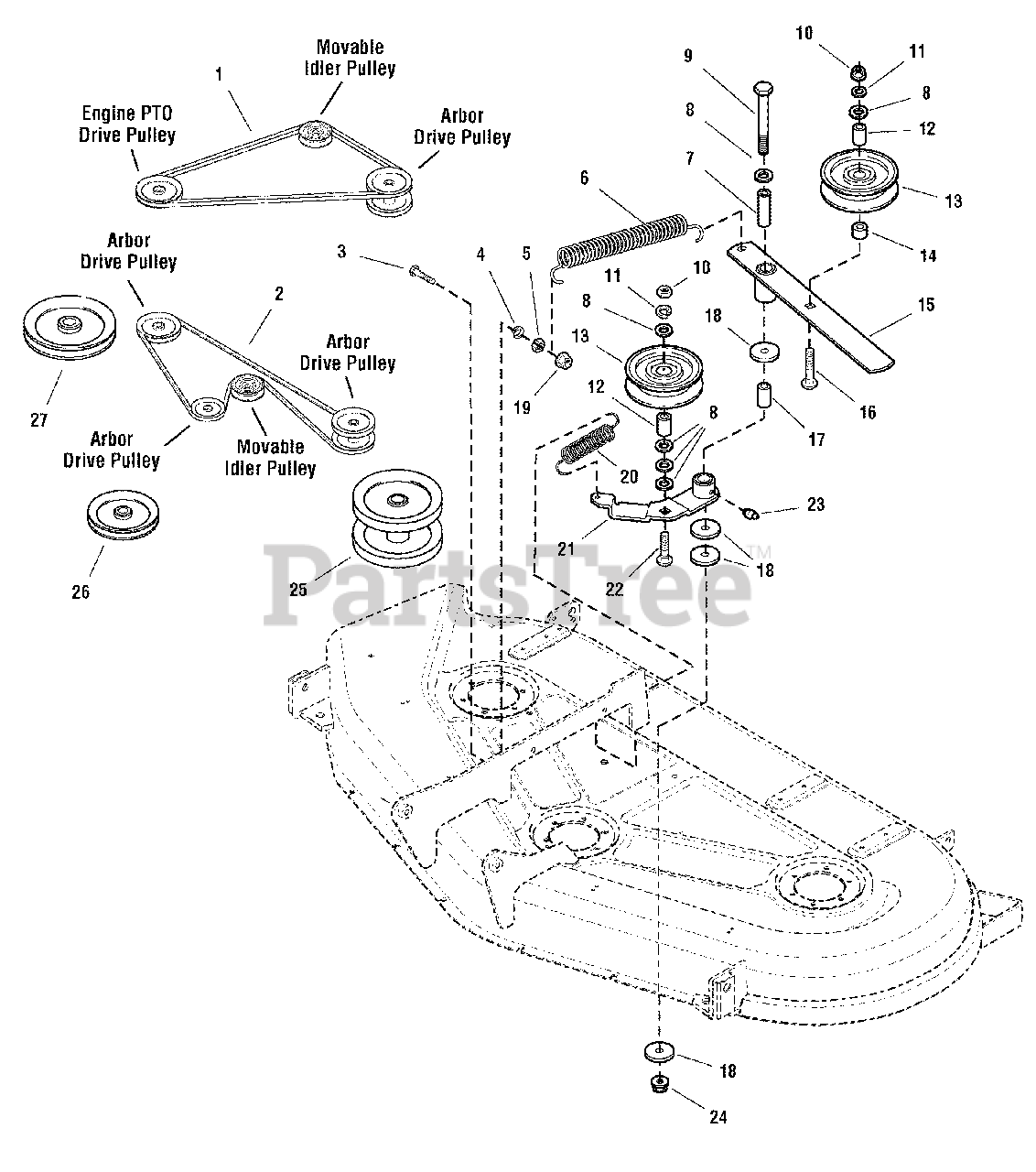

54" Mower Deck - Belt, Idler Arm & Hitch Group Parts Diagram

  • Title

1

Snapper 1722039

V-BELT, Engine PTO
(Superseded to 1722039SM)

$43.99

$

In Stock, Qty 20+

0

2

Snapper 1671076

V-BELT, 54 Mower Deck
(Superseded to 1671076SM)

$50.99

$

In Stock, Qty 20+

0

3

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

4

Snapper 1917356

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 1715435

SPRING
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

7

Snapper 1657242

SPACER, 25/64 x 5/8 x 1-55/64
(Superseded to 1657242SM)

$10.99

$

In Stock, Qty 10

0

8

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 1960246

CAPSCREW, Hex Head, 3/8-16 x 4-1/2
(Superseded to 1960246SM)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 1916950

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 1916965

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Snapper 1716553

HUB, 25/64 x 3/4 x 63/64, Powder Metal
(Superseded to 1716553SM)

$4.99

$

In Stock, Qty 10

0

13

Snapper 1685150

PULLEY, Idler (Includes Ref. No. 12)
(Superseded to 1685150SM)

$34.99

$

In Stock, Qty 20+

0

14

Snapper 2157081

SPACER
(Superseded to 2157081SM)

$8.99

$

In Stock, Qty 6

0

15

Snapper 1720379

ASSEMBLY, Lever
(Superseded to 1720379SM)

$

$

Not available

16

Snapper 1960315

CARRIAGE BOLT, 3/8-16 x 2
(Superseded to 1960315SM)

$6.49

$

In Stock, only 1 left!

0

17

Snapper 1674669

SPACER
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 20+

0

18

Snapper 1924356

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 1923362

NUT, Hex Centerlock, 5/16-18, Black
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

20

Snapper 1656936

SPRING, Extension, 4" Long
(Superseded to 1656936SM)

$9.99

$

In Stock, Qty 20+

0

21

Snapper 1718561

LEVER ASSEMBLY, (Includes Ref. No. 23)
(Superseded to 1718561SM)

$50.99

$

Usually ships in 2-12 days

0

22

Snapper 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, only 4 left!

0

23

Snapper 2912808

FITTING, Lube
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 1930645

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

25

Snapper 1720183A

PULLEYS & HUB ASSEMBLY, Double, LH
(Superseded to 1720183ASM)

$87.99

$

In Stock, only 4 left!

0

26

Snapper 1679161A

PULLEY & HUB ASSEMBLY, Center
(Superseded to 1679161SM)

$70.99

$

In Stock, Qty 6

0

27

Snapper 1720182A

PULLEY & HUB ASSEMBLY, RH
(Superseded to 1720182ASM)

$54.99

$

In Stock, only 2 left!

0
