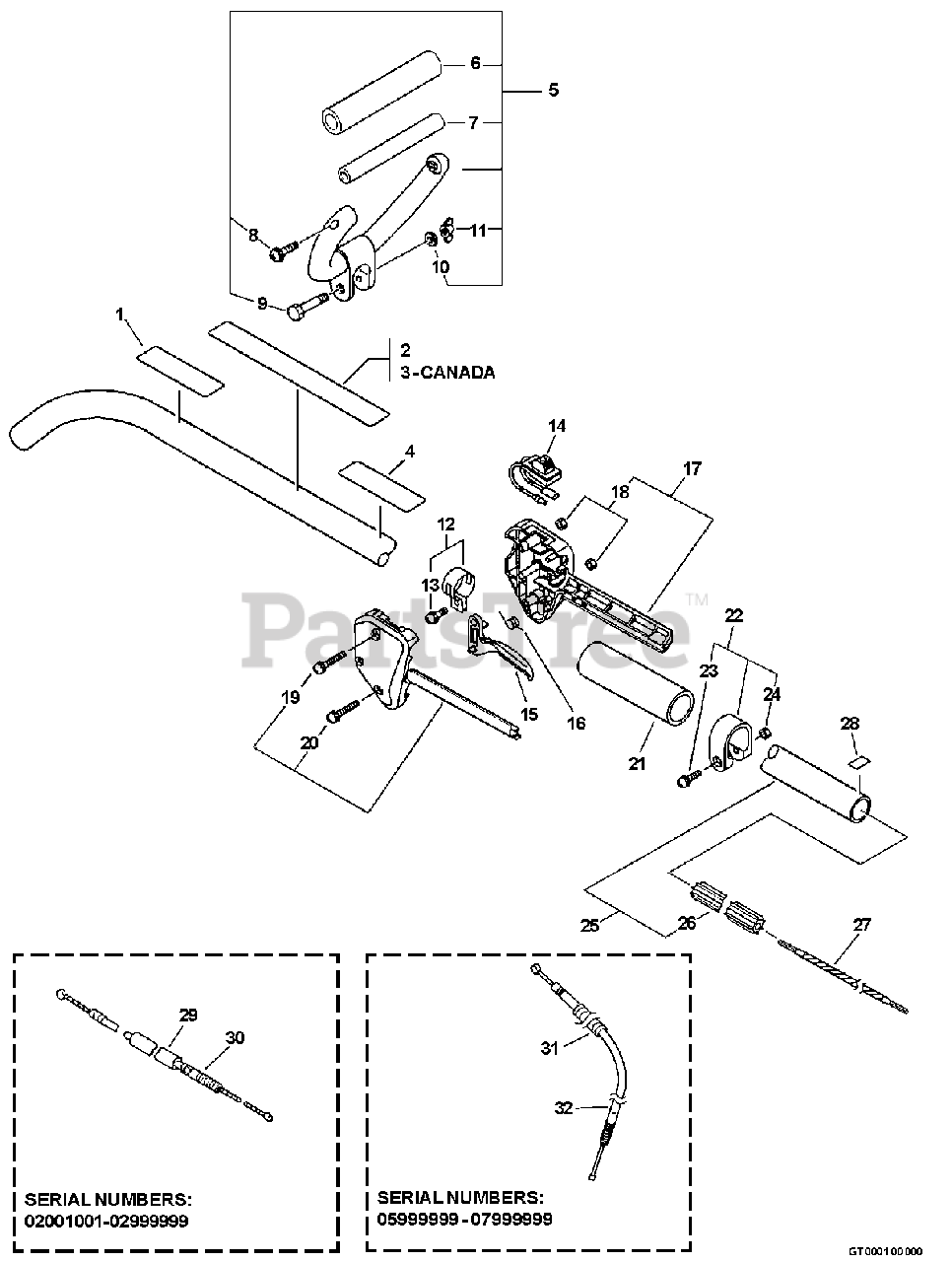

GT-231 - Echo String Trimmer (SN: 06001001 - 06999999) Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

String Trimmer

Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

  • Title
1

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

2

Echo 89031744530

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

3

Echo 89031748731

LABEL - CAUTION
(Superseded to X505002500)

$5.99

$

In Stock, Qty 20+

0

4

Echo X505001930

LABEL - HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

5

Echo 35120150630

LOOP HANDLE ASSY

Note: Includes ITEMS 6-11

$30.99

$

Usually ships in 2-4 days

0

6

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0

7

$4.49

$

Usually ships in 2-4 days

0

8

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

9

Echo 90010006040

BOLT - 6X40

$0.99

$

In Stock, Qty 9

0

10

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

11

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

12

Echo 30120152730

CLAMP KIT

Note: Includes ITEM 13

$9.49

$

Usually ships in 2-4 days

0

13

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

14

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 12

0

15

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

16

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

17

Echo 17800352730

CONTROL HANDLE ASSY
(Superseded to 17800352731)

Note: INCLUDES ITEMS 18-20

$10.99

$

Usually ships in 2-4 days

0

18

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

20

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

21

Echo 35121352730

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

22

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 23-24

$9.99

$

In Stock, only 1 left!

0

23

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

24

$0.99

$

In Stock, Qty 20+

0

25

Echo 61060944530

MAIN PIPE ASSY

Note: Includes ITEM 26

$52.99

$

Usually ships in 2-4 days

0

26

Echo 61021744530

LINER - FLEXIBLE

$16.99

$

In Stock, Qty 14

0

27

Echo 61001323330

DRIVESHAFT - FLEXIBLE
(Superseded to C506000090)

$23.99

$

In Stock, only 1 left!

0

28

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

29

Echo V475000850

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

In Stock, only 4 left!

0

30

Echo 17800156530

CABLE, THROTTLE

$19.99

$

In Stock, Qty 17

0

31

Echo V475000850

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

In Stock, only 4 left!

0

32

Echo V430000730

CABLE, THROTTLE

$7.49

$

In Stock, only 1 left!

0
