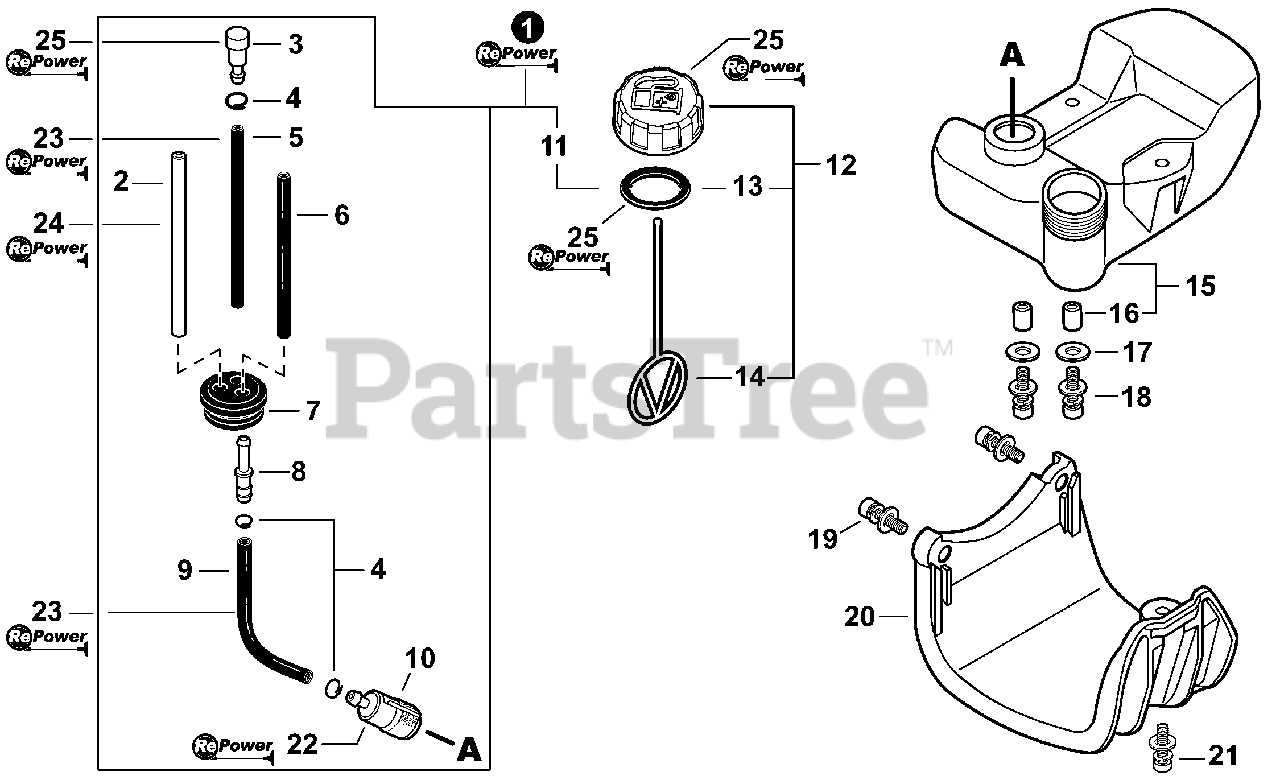

GT-230 - Echo String Trimmer (SN: T49414001001 - T49414999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title
1

Echo 90142BP

FUEL SYSTEM KIT - REPOWER
(Superseded to 90142Y)

Note: Includes ITEMS 2-11

$

$

Not available

2

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

3

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471000110

PIPE, FUEL 3×6×115 BLACK
(Superseded to V471000111)

$2.49

$

In Stock, Qty 20+

0

6

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.49

$

In Stock, only 1 left!

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo 43721720760

PIPE, FUEL 3×6×100
(Superseded to 43721720761)

$5.49

$

In Stock, only 1 left!

0

10

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

$9.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 13-14

$5.99

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

15

Echo A350000660

TANK, FUEL
(Superseded to A350002320)

Note: Includes ITEM 16

$

$

Not available

16

Echo 13104528230

SPACER 6.2×7.8×6

$1.49

$

In Stock, Qty 20+

0

17

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

19

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

20

Echo 30511057733

GUARD, FUEL TANK

$14.99

$

In Stock, only 2 left!

0

21

Echo 90024405020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

0

22

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0

23

Echo 90015

PIPE, BULK - 3×6mm BLACK

$40.99

$

In Stock, only 4 left!

0

24

Echo 90017

PIPE, BULK - 3×6mm CLEAR

$58.99

$

In Stock, Qty 9

0

25

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available
