GT 2254 (960250002-01) - Husqvarna 54" Garden Tractor (2005-06) CHASSIS & ENCLOSURES Parts Diagram

54" Garden Tractor

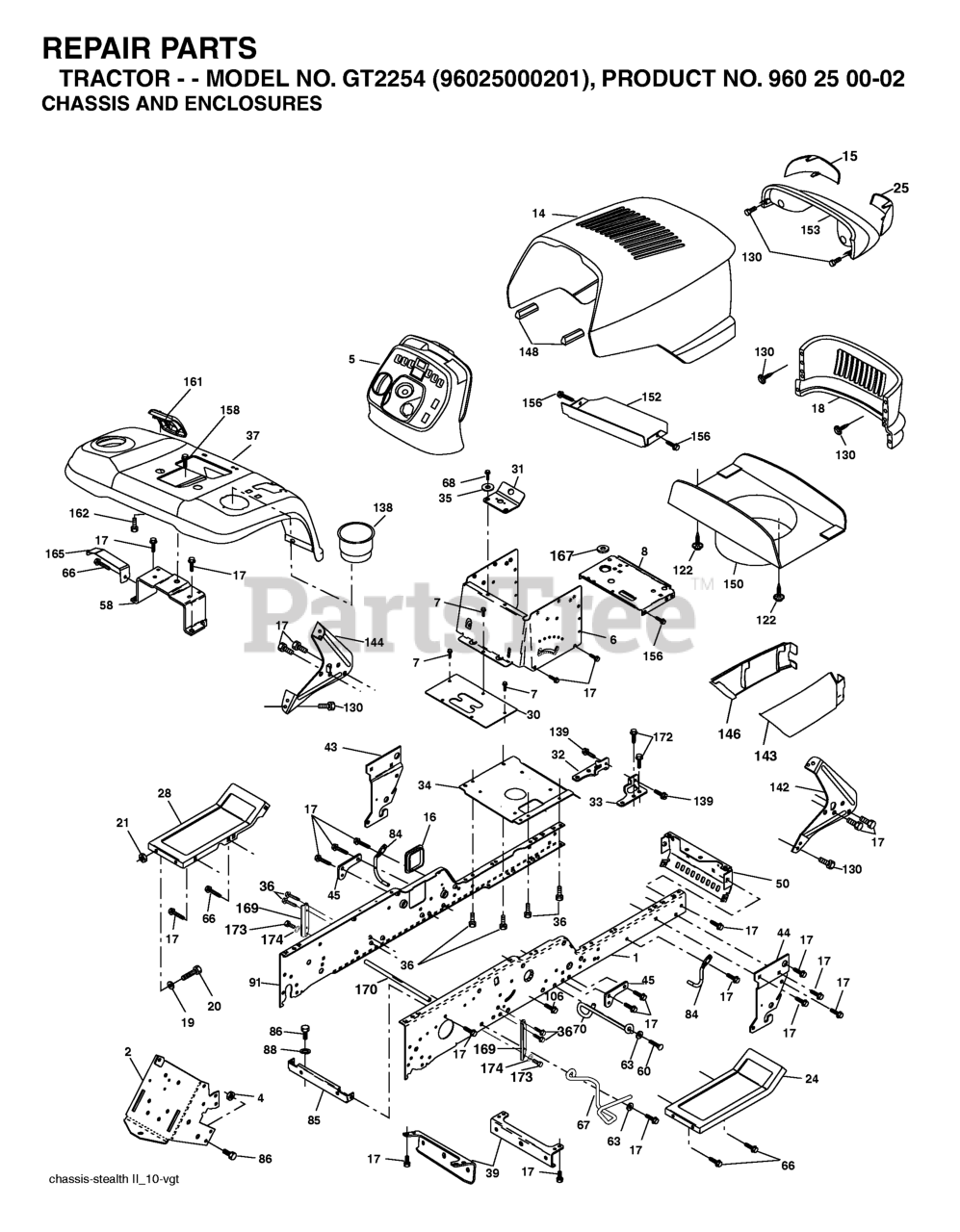

CHASSIS & ENCLOSURES Parts Diagram

  • Title

14

Husqvarna 532190055

HOOD
(Superseded to 532188208)

$

$

Not available

150

Husqvarna 532190309

DUCT.HEAT.HOOD.STEALTH.GT

$45.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532175278

BRACKET AXLE, FRONT

$

$

Not available

84

Husqvarna 532188164

UPSTOP 54"

$

$

Not available

18

Husqvarna 532182873

GRILLE.STEALTH P/L.YTGT.GREY

$193.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532177956

BROWNING SHIELD

$

$

Not available

5

Husqvarna 532196137

DASH STEALTH
(Superseded to 532196094)

$80.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532121794

COVER ACCESS

$

$

Not available

169

Husqvarna 532188598

BRACKET CHASSIS SWAY

$

$

Not available

28

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

137

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532148411

SADDLE

$

$

Not available

156

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

58

Husqvarna 532183569

BRACKET ASM., FENDER

$14.99

$

Usually ships in 3-10 days

0

171

Husqvarna 532184672

BUSHING SNAP

$2.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532192512

SCREW.WSHD.HEX10-32X5/8

$5.99

$

Usually ships in 3-10 days

0

158

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

106

Husqvarna 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

25

Husqvarna 532161842

LENS RH
(Superseded to 583125201)

$

$

Not available

130

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

24

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532442579)

$

$

Not available

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532184668

SUPPORT, BATTERY
(Superseded to 532185518)

$

$

Not available

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532194868

FENDER.PNT.YTGT.WO/SHF.ORANGE
(Superseded to 583700501)

$169.99

$

Usually ships in 3-10 days

0

60

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

153

Husqvarna 532188212

LIGHTBOX.ASM.STV.DL.INC.HUSQ

$109.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532187270

BRACKET ARM SUSPENSION

$8.99

$

In Stock, only 2 left!

0

86

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532183554

BRACKET SUPPORT TANK

$85.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532177586

SKIRT GRILLE RH

$43.99

$

In Stock, only 2 left!

0

31

Husqvarna 532161419

BRACKET SUPT 1-PC VGT STEERING

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

170

Husqvarna 532194667

ROD.BRKT.SWAY

$18.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532161327

BRACKET

$7.49

$

In Stock, only 4 left!

0

1

Husqvarna 532180375

KIT.RAIL.CHASS.RH.GT

$56.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532171873

BOLT, SHOULDER 5/16-18

$5.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532175282

DRAWBAR, GT

$

$

Not available

33

Husqvarna 532161326

BRACKET.

$6.49

$

In Stock, only 1 left!

0

66

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

173

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

88

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

44

Husqvarna 532136940

FRONT SUSPENSION BRKT RH

$

$

Not available

142

Husqvarna 532161897

BRACKET DASH STEALTH(R)

$7.49

$

Usually ships in 3-10 days

0

172

Husqvarna 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

148

Husqvarna 532164655

EXTRUSION BUMPER (3 2) (2 2)

$8.99

$

Usually ships in 3-10 days

0

174

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532161900

BRACKET DASH STEALTH LH

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532175476

BRACKET, CHASSIS FRONT

$

$

Not available

6

Husqvarna 532157882

DASH VGT, LOWER

$

$

Not available

21

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532161841

LENS LH
(Superseded to 583125201)

$

$

Not available

146

Husqvarna 532177587

SKIRT GRILLE LH

$

$

Not available

85

Husqvarna 532193923

BRKT.SUPPT

$

$

Not available

161

Husqvarna 532181787

CONSOL.FUEL.WINDOW.BLACK

$34.99

$

Usually ships in 3-10 days

0

138

Husqvarna 532194869

CUPHOLDER.YTGT
(Superseded to 583710501)

$12.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532180374

KIT.RAIL.CHASS.LH.GT

$56.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532136939

FRONT SUSPENSION BRKT LH

$

$

Not available

70

Husqvarna 532188578

GUIDE.BELT.MID.SPAN.54"

$

$

Not available

4

Husqvarna 873680700

Nut, Crownlock Hex 7/16-14 unc

$2.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532177018

PLATE ASM ENG CHASSIS

$37.99

$

Usually ships in 3-10 days

0
