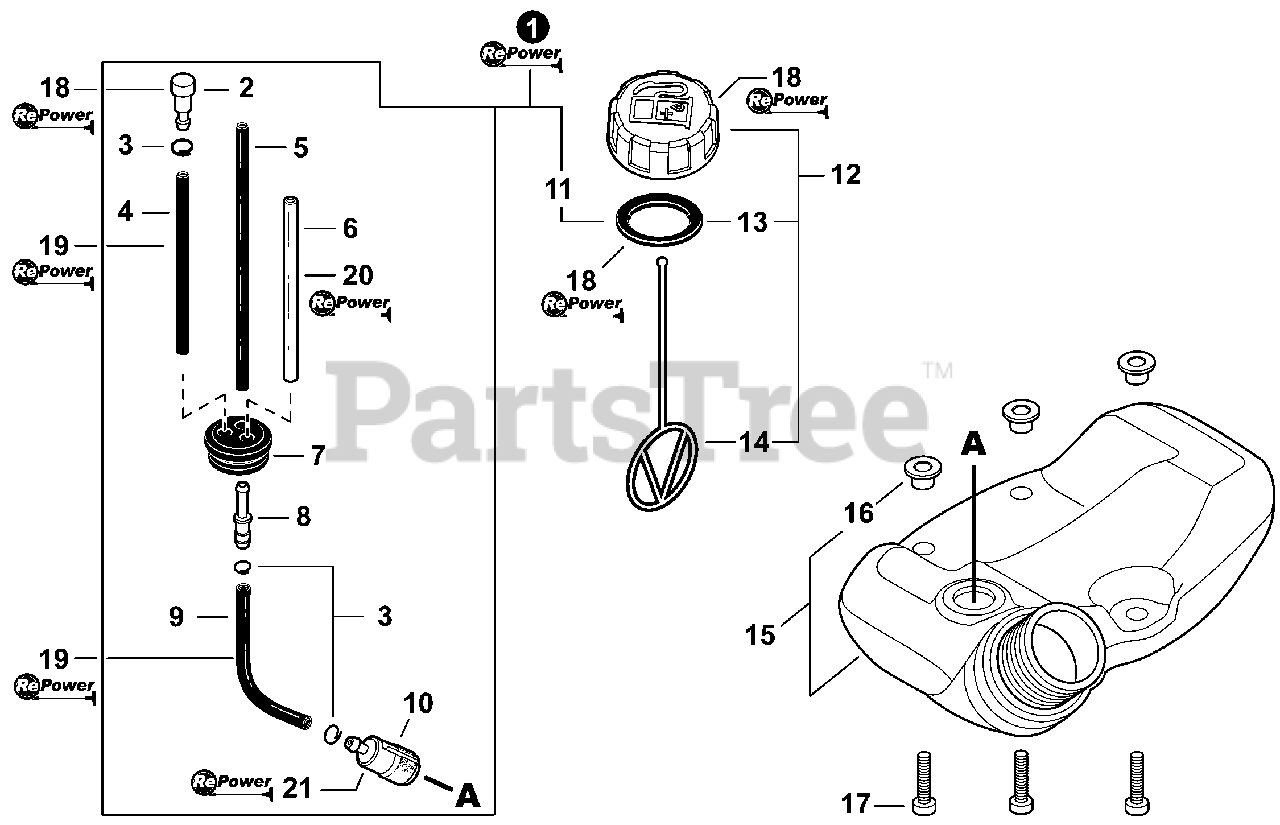

GT-225 SF - Echo String Trimmer (SN: S96013001001 - S96013999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 90127BP

FUEL SYSTEM KIT - REPOWER
(Superseded to 90127)

Note: Includes Items 2-11

$30.99

$

Usually ships in 2-4 days

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

4

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

5

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.49

$

In Stock, only 1 left!

0

6

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

7

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 19

0

8

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003700

PIPE, FUEL 3×5×130 BLACK

$1.49

$

In Stock, only 2 left!

0

10

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 13-14

$5.99

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

15

Echo A350000780

TANK ASSY, FUEL

Note: Includes Item 16

$21.99

$

In Stock, only 3 left!

0

16

Echo V353000231

COLLAR 5

$3.99

$

Usually ships in 2-4 days

0

17

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

18

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$42.99

$

In Stock, Qty 13

0

20

Echo 90017

PIPE, BULK - REPOWER 3×6mm CLEAR

$58.99

$

In Stock, Qty 7

0

21

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 7

0
