GT-225 - Echo String Trimmer (SN: U05912001001 - U05912999999) Starter Parts Diagram

String Trimmer

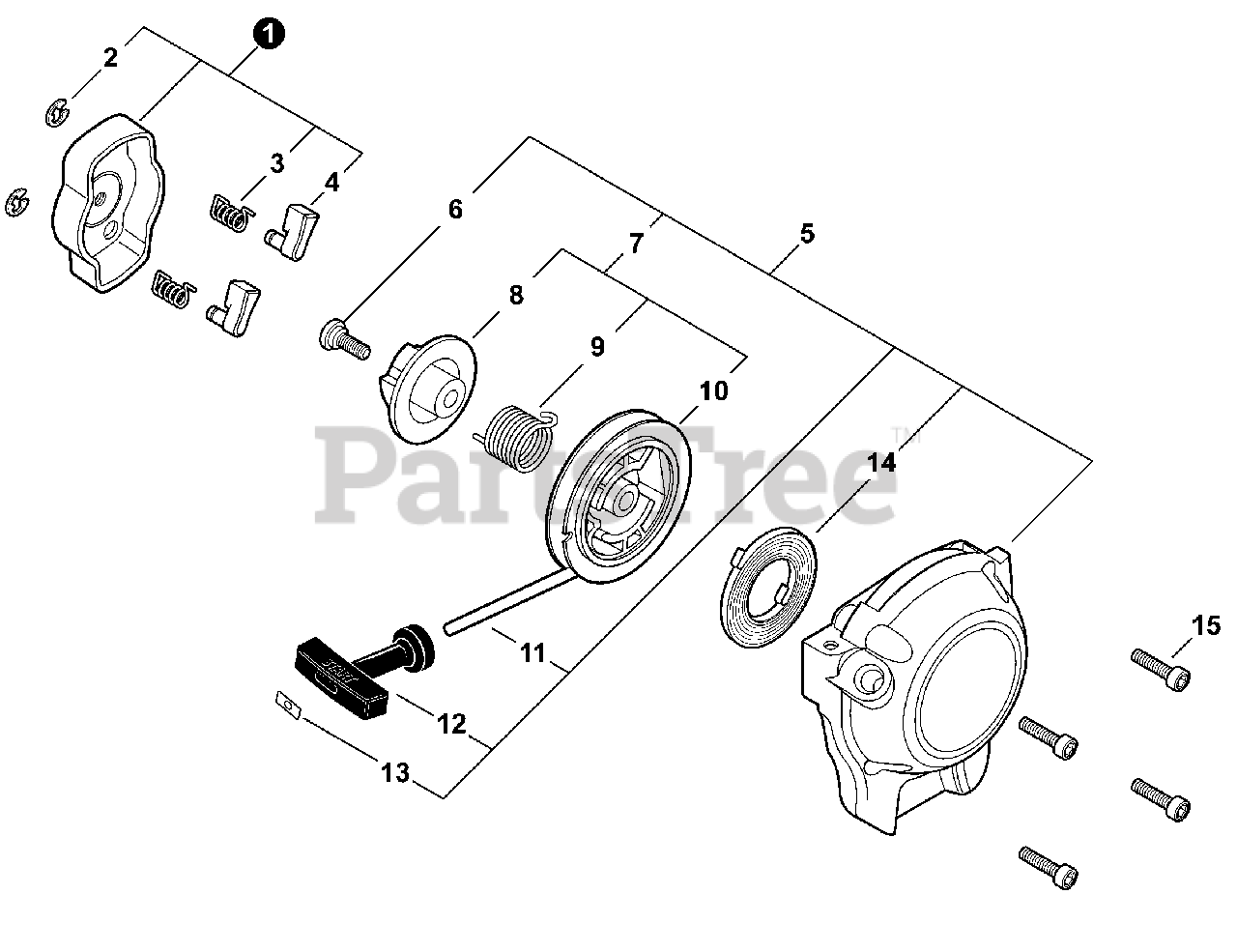

Starter Parts Diagram

  • Title

1

Echo A052000180

PAWL ASSY, STARTER

Note: Includes Items 2-4

$8.99

$

In Stock, Qty 16

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

3

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 8

0

4

Echo P022006850

PAWL, STARTER

$3.49

$

In Stock, only 2 left!

0

5

Echo A051001322

STARTER ASSY, RECOIL

Note: Includes Items 6-14

$24.99

$

In Stock, only 2 left!

0

6

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

7

Echo P050009920

REEL/CAM PLATE SET

Note: Includes Items 8-10

$20.99

$

In Stock, only 3 left!

0

8

Echo A525000020

PLATE, CAM

$7.99

$

In Stock, only 4 left!

0

9

Echo P022008270

SPRING, TORSION

$8.99

$

In Stock, Qty 20+

0

10

Echo A506000500

REEL, ROPE

$8.49

$

In Stock, Qty 11

0

11

Echo P022008260

ROPE, STARTER 3x700

$

$

Not available

12

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

13

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

14

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$9.99

$

In Stock, Qty 13

0

15

Echo V804000060

BOLT, TORX 4x16

$0.99

$

In Stock, Qty 20+

0
