GT-225 - Echo String Trimmer (SN: U05912001001 - U05912999999) Intake Parts Diagram

String Trimmer

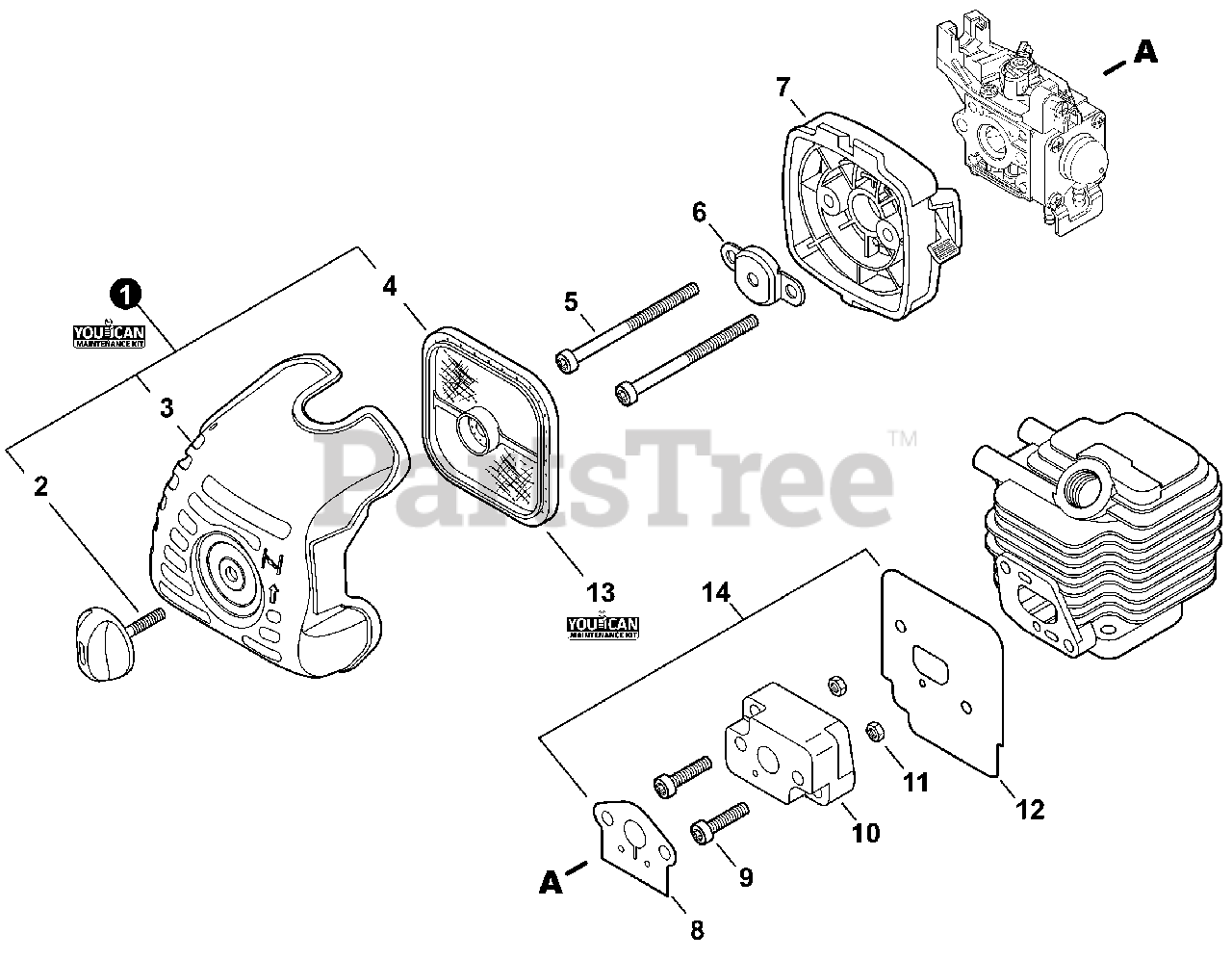

Intake Parts Diagram

  • Title

1

Echo 90116Y

FILTER KIT, AIR - YOUCANT

Note: Includes Items 2-4

$15.99

$

In Stock, Qty 10

0

2

Echo V299000250

THUMBSCREW

$3.99

$

In Stock, Qty 20+

0

3

Echo A232001850

COVER, AIR FILTER

Note: Included in Tune-Up Kit

$5.49

$

In Stock, Qty 20+

0

4

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

5

Echo V805000100

BOLT, TORX 5x65

$1.99

$

In Stock, Qty 5

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo P021012870

CASE ASSY, AIR FILTER

Note: Included in Gasket Kit

$11.99

$

In Stock, Qty 20+

0

8

Echo V103001500

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

9

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

10

Echo 13001744331

INSULATOR, INTAKE

$9.99

$

In Stock, only 2 left!

0

11

Echo 90050000005

NUT M5

Note: Included in Gasket Kit

$0.99

$

In Stock, Qty 20+

0

12

Echo V103001360

HEAT SHIELD, INTAKE

Note: See Maintenance Kits

$2.49

$

In Stock, only 2 left!

0

13

Echo 90152Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$20.99

$

In Stock, Qty 20+

0

14

Echo P021015981

GASKET KIT: ENGINE, INTAKE, EXHAUST

Note: See Maintenance Kits

$22.99

$

Usually ships in 2-4 days

0
