GT-225 - Echo String Trimmer (SN: U05912001001 - U05912999999) Exhaust Parts Diagram

String Trimmer

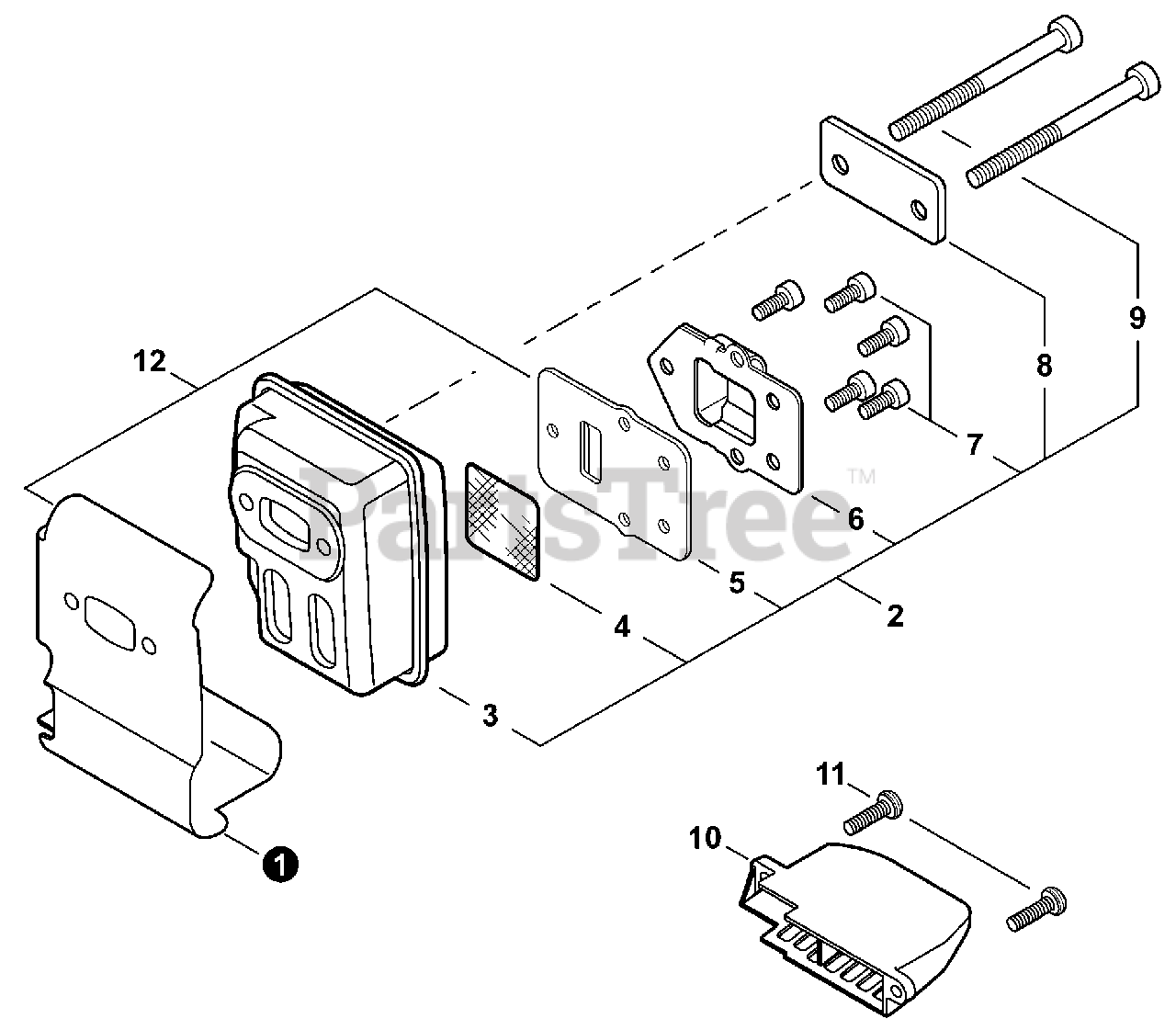

Exhaust Parts Diagram

  • Title
1

Echo V104000850

HEAT SHIELD, EXHAUST

Note: Included in Gasket Kit

$13.99

$

Usually ships in 2-4 days

0

2

Echo P021036111

MUFFLER ASSY

Note: Includes Items 3-9

$87.99

$

Usually ships in 2-4 days

0

3

Echo A300000811

MUFFLER

$73.99

$

In Stock, Qty 5

0

4

Echo 14586240630

SCREEN, SPARK ARRESTER

$1.99

$

In Stock, Qty 6

0

5

Echo V104001761

GASKET, EXHAUST

Note: Included in Gasket Kit

$6.99

$

In Stock, Qty 20+

0

6

Echo A313000600

GUIDE, EXHAUST

$9.49

$

In Stock, Qty 6

0

7

Echo V804000030

BOLT, TORX 4x8

$0.99

$

In Stock, Qty 20+

0

8

Echo V150000371

PLATE, EYE

$1.49

$

In Stock, Qty 9

0

9

Echo V805000190

BOLT, TORX 5x55

$1.49

$

In Stock, Qty 20+

0

10

Echo A320000480

COVER, MUFFLER

$1.99

$

In Stock, only 4 left!

0

11

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

12

Echo P021015981

GASKET KIT: ENGINE, INTAKE, EXHAUST

Note: See Repower Maintenance Kits

$22.99

$

Usually ships in 2-4 days

0
