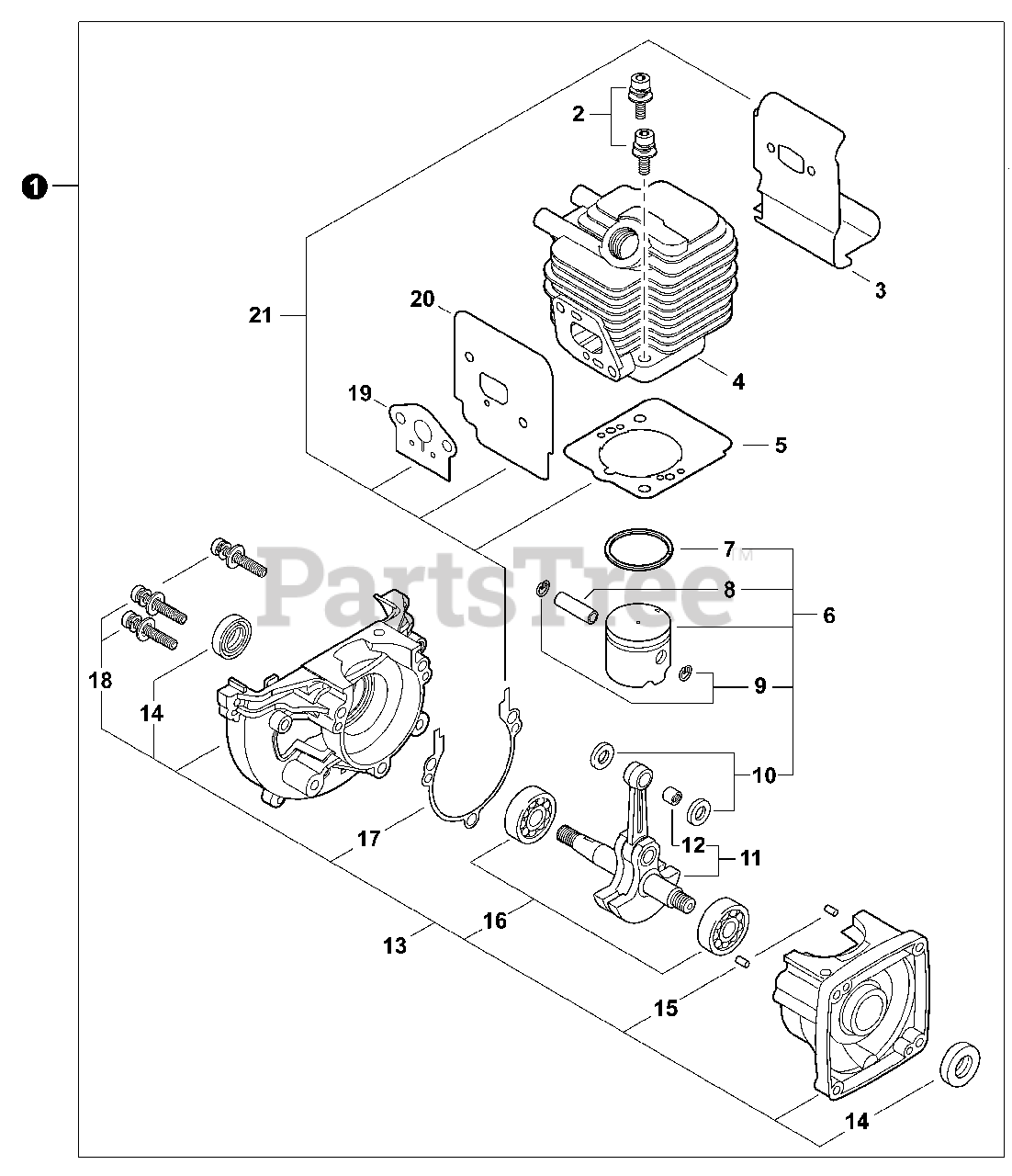

GT-225 - Echo String Trimmer (SN: U05912001001 - U05912999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1096

SHORT BLOCK

Note: Includes Items 2-20

$157.99

$

In Stock, only 2 left!

0

2

Echo 90016205022

BOLT 5x22

$0.99

$

In Stock, Qty 20+

0

3

Echo V104000850

HEAT SHIELD, EXHAUST

Note: Included in Gasket Kit

$13.99

$

In Stock, only 1 left!

0

4

Echo A130000540

CYLINDER

$77.99

$

In Stock, only 1 left!

0

5

Echo V100000160

GASKET, CYLINDER

Note: Included in Gasket Kit

$6.49

$

In Stock, Qty 20+

0

6

Echo P021007712

PISTON KIT

Note: Includes Items 7-10

$50.99

$

In Stock, only 3 left!

0

7

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 10001311520

PIN, PISTON 8

$7.49

$

In Stock, only 1 left!

0

9

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

10

Echo 10001411520

WASHER, THRUST

$3.49

$

In Stock, only 3 left!

0

11

Echo A011001410

CRANKSHAFT ASSY

Note: Includes Item 12

$155.99

$

In Stock, only 1 left!

0

12

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

Usually ships in 2-4 days

0

13

Echo 10020452133

CRANKCASE KIT

Note: Includes Items 14-18

$140.99

$

Usually ships in 2-4 days

0

14

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 11

0

15

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

16

Echo 9409536201

BEARING, BALL
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

17

Echo 10024242030

GASKET, CRANKCASE

Note: Included in Gasket Kit

$1.49

$

In Stock, Qty 20+

0

18

Echo 90016205028

BOLT 5x28

$1.99

$

In Stock, Qty 20+

0

19

Echo V103001500

GASKET, INTAKE

Note: Included in Gasket Kit

$0.99

$

In Stock, Qty 20+

0

20

Echo V103001360

HEAT SHIELD, INTAKE

Note: Included in Gasket Kit

$2.49

$

In Stock, only 1 left!

0

21

Echo P021015981

GASKET KIT: ENGINE, INTAKE, EXHAUST

Note: See Maintenance Kits

$22.99

$

Usually ships in 2-4 days

0
