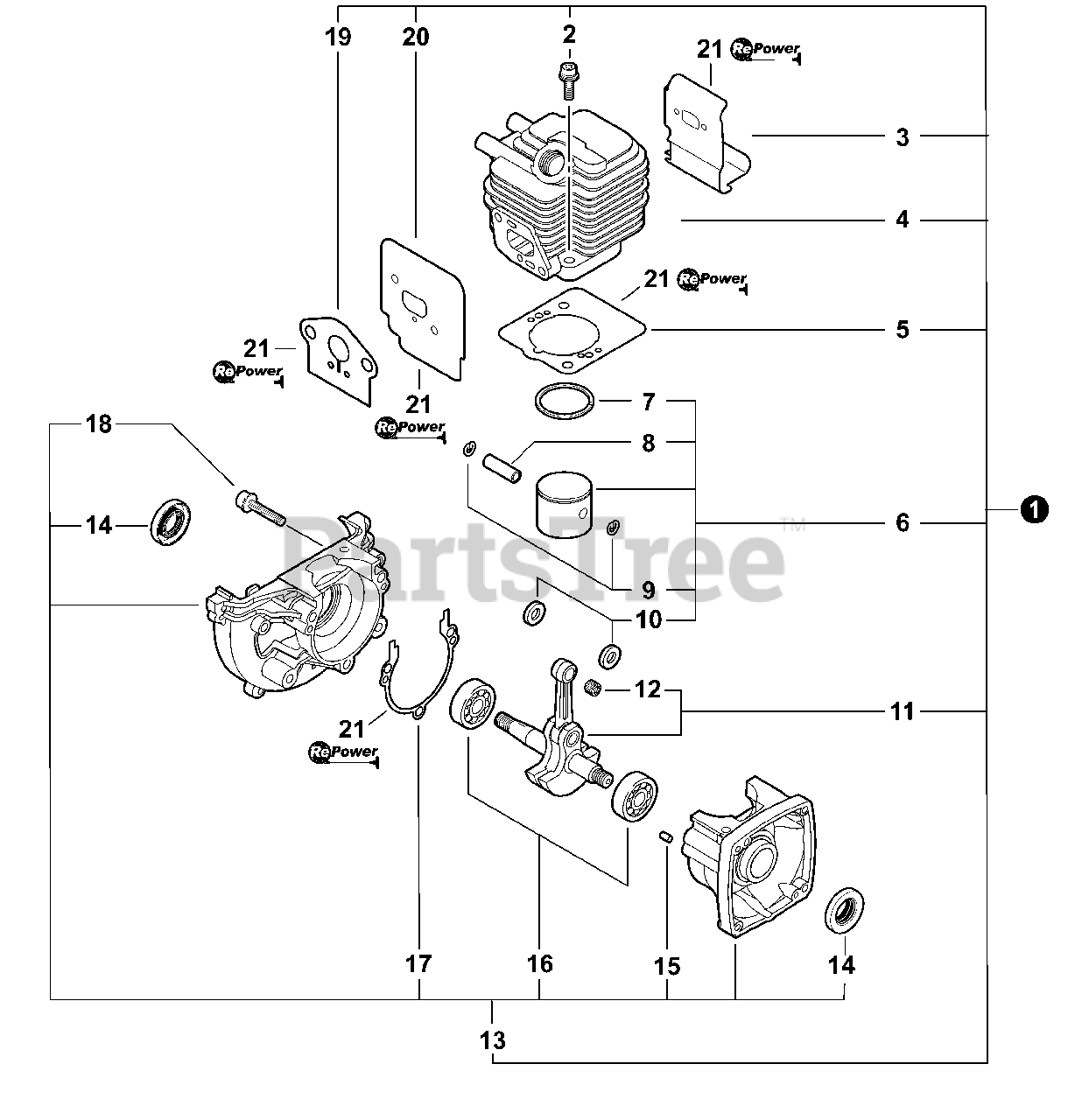

GT-225 - Echo String Trimmer (SN: T75614001001 - T75614999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1096

SHORT BLOCK -- SB1096

Note: Includes Items 2-20

$157.99

$

In Stock, only 2 left!

0

2

Echo 90016205022

SCREW - 5×22

$0.99

$

In Stock, Qty 20+

0

3

Echo V104000850

SHIELD, EXHAUST

$13.99

$

In Stock, only 1 left!

0

4

Echo A130000540

CYLINDER

$77.99

$

In Stock, only 1 left!

0

5

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

6

Echo P021007712

PISTON KIT

Note: Includes Items 7-10

$50.99

$

In Stock, only 3 left!

0

7

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

10

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

11

Echo A011001290

CRANKSHAFT ASSY

Note: Includes Item 12

$155.99

$

Usually ships in 2-4 days

0

12

Echo V553000060

BEARING, NEEDLE - 8

$10.99

$

Usually ships in 2-4 days

0

13

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes Items 14-18

$140.99

$

Usually ships in 2-4 days

0

14

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

15

Echo 90033040080

PIN, LOCATING - 4×8

$0.99

$

In Stock, Qty 20+

0

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

18

Echo 90016205028

SCREW - 5×28

$1.99

$

In Stock, Qty 20+

0

19

Echo V103001500

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

20

Echo V103001360

SHIELD, INTAKE

$2.49

$

In Stock, only 2 left!

0

21

Echo P021015980

GASKET KIT
(Superseded to P021015981)

$22.99

$

Usually ships in 2-4 days

0
