GT-225 - Echo String Trimmer (SN: S94626001001 - S94626999999) Fuel System S/N: S94626001001 - S94626011644 Parts Diagram

String Trimmer

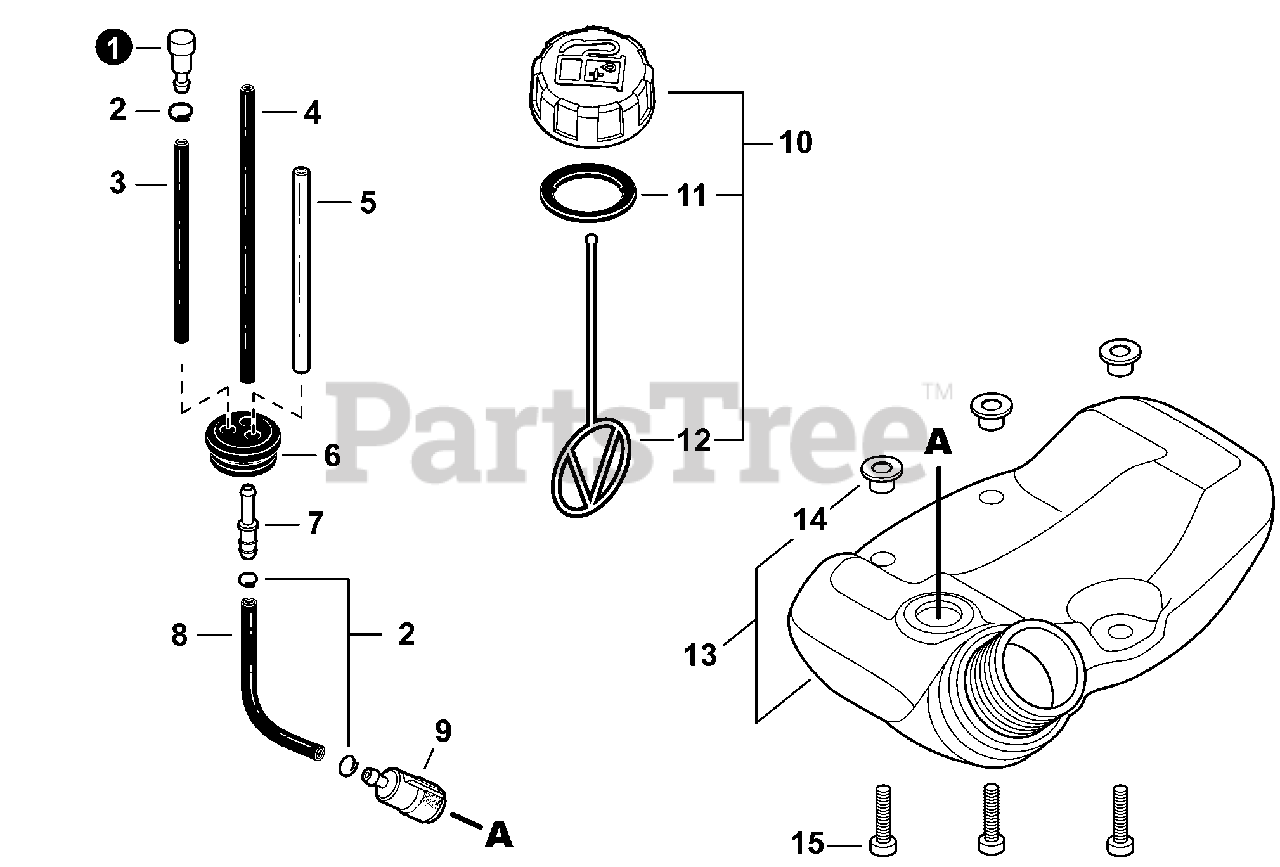

Fuel System S/N: S94626001001 - S94626011644 Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

3

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

4

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.49

$

In Stock, only 1 left!

0

5

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

6

Echo 13211546730

GROMMET, FUEL Ø5

$1.99

$

In Stock, Qty 19

0

7

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V471003700

PIPE, FUEL 3×5×130 BLACK

$1.49

$

In Stock, only 2 left!

0

9

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

$5.49

$

In Stock, Qty 20+

0

10

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 11-12

$5.99

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

13

Echo A350000780

TANK ASSY, FUEL

Note: Includes Item 14

$21.99

$

In Stock, only 3 left!

0

14

Echo V353000231

COLLAR 5

$3.99

$

Usually ships in 2-4 days

0

15

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0
