GT-225 - Echo String Trimmer (SN: S53912001001 - S53912999999) Fuel System S/N: S53912276001 - S53912999999 Parts Diagram

String Trimmer

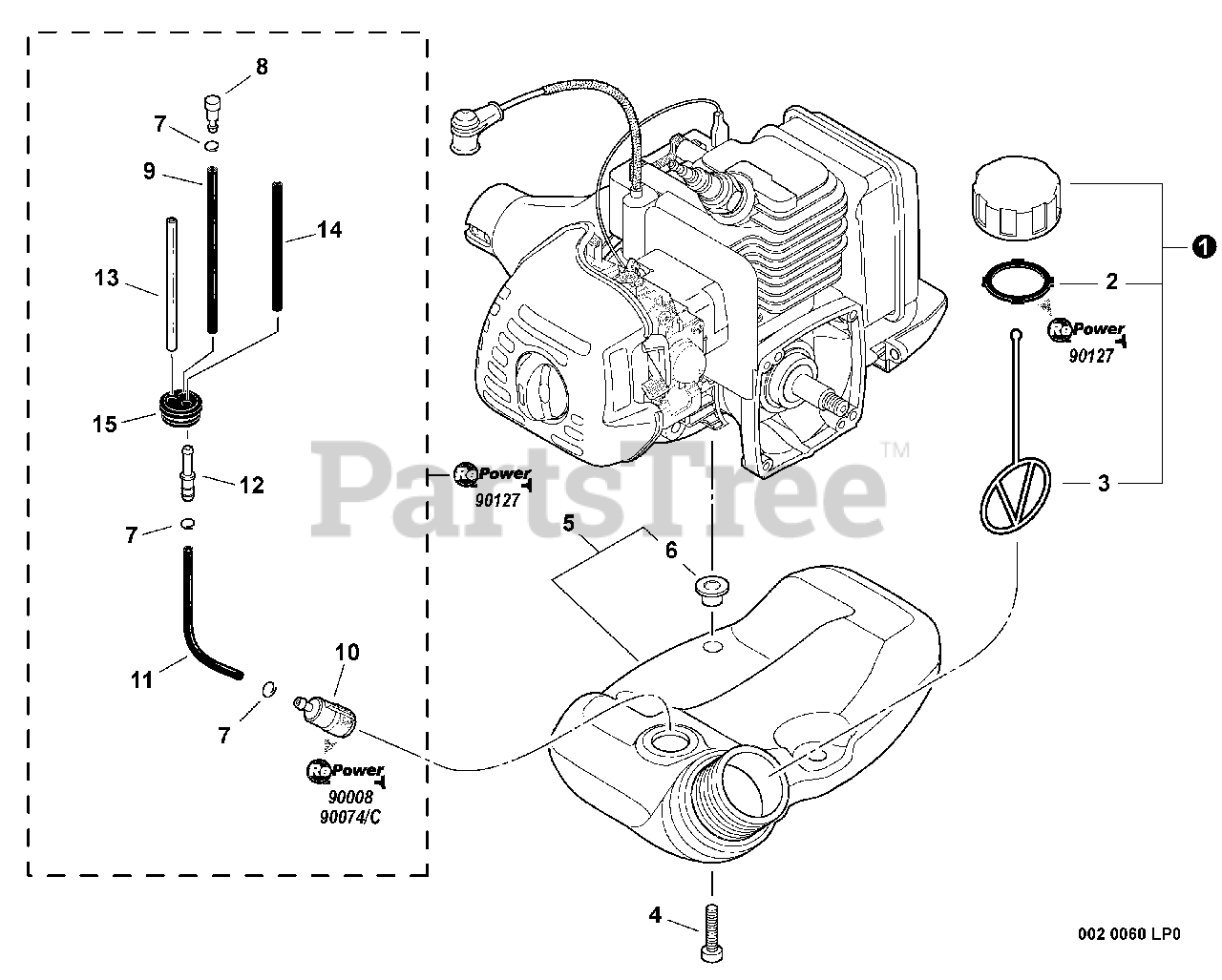

Fuel System S/N: S53912276001 - S53912999999 Parts Diagram

  • Title

1

Echo P021040430

CAP ASSY - ORANGE

Note: Includes ITEMS 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP

$1.49

$

In Stock, Qty 10

0

4

Echo V805000160

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

5

Echo A350000780

FUEL TANK ASSY

Note: Includes ITEM 6

$21.99

$

In Stock, only 3 left!

0

6

Echo V353000231

COLLAR - 5

$3.99

$

Usually ships in 2-4 days

0

7

Echo V490001240

CLIP - 6

$0.99

$

In Stock, Qty 6

0

8

Echo A356000031

VENT, FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

9

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

11

Echo V471003700

PIPE - 3X5X130 -- BLACK

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, only 3 left!

0

12

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

13

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

14

Echo V471003691

PIPE - 3X5X74 -- BLACK
(Superseded to V471005620)

Note: RePower BULK OPTION: N/A

$3.49

$

In Stock, only 1 left!

0

15

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 20+

0

16

Echo 90127

RePower FUEL SYSTEM KIT
(Superseded to 90127Y)

$30.99

$

Usually ships in 2-4 days

0

17

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

17

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

Note: CANADA MODELS

$20.99

$

In Stock, Qty 20+

0

18

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0
