GT-225 - Echo String Trimmer (SN: S09313001001 - S09313999999) Starter S/N: S09313001001-S09313051546 Parts Diagram

String Trimmer

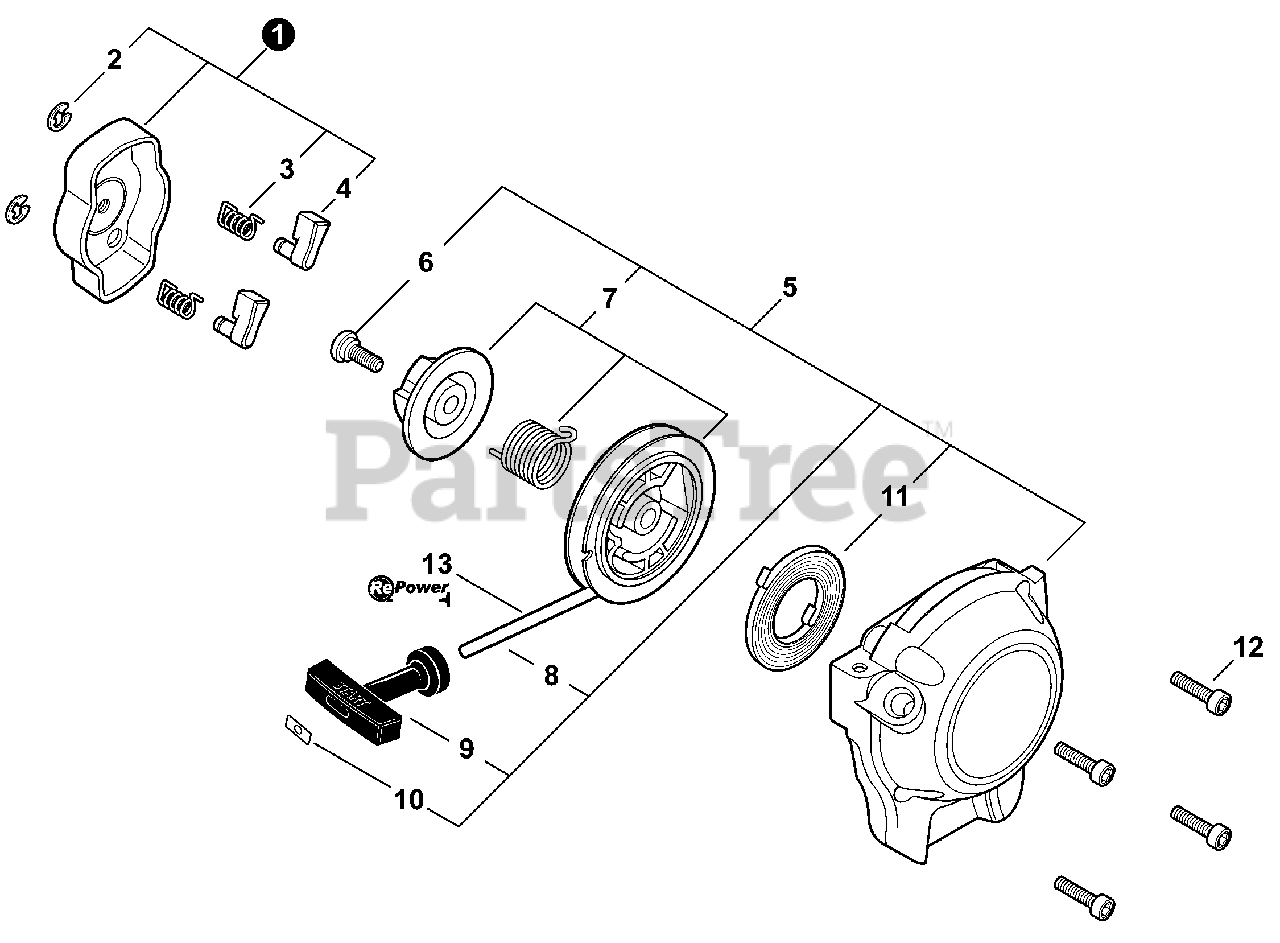

Starter S/N: S09313001001-S09313051546 Parts Diagram

  • Title
1

Echo A052000180

STARTER PAWL ASY

Note: Includes Items 2-4

$8.99

$

In Stock, Qty 19

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 8

0

3

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 11

0

$3.49

$

In Stock, only 2 left!

0

5

Echo A051001321

STARTER ASY
(Superseded to A051001322)

Note: Includes Items 6-13

$24.99

$

Usually ships in 2-4 days

0

6

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

7

Echo P050009920

REEL/CAM PLATE SET

$20.99

$

In Stock, only 3 left!

0

8

Echo P022019990

ROPE, STARTER - 3X700
(Superseded to P022008260)

$

$

Not available

9

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

10

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

11

Echo P022019680

SPRING, RECOIL

$9.99

$

In Stock, Qty 14

0

12

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

13

Echo 99944440000

ROPE, STARTER - REPOWER BULK Ø3

$29.99

$

In Stock, Qty 9

0
