GT-225 (14AV836P190) - White Outdoor 50" Garden Tractor (1999) Seat, Fuel Tank, Rear Wheel, Lift Parts Diagram

50" Garden Tractor

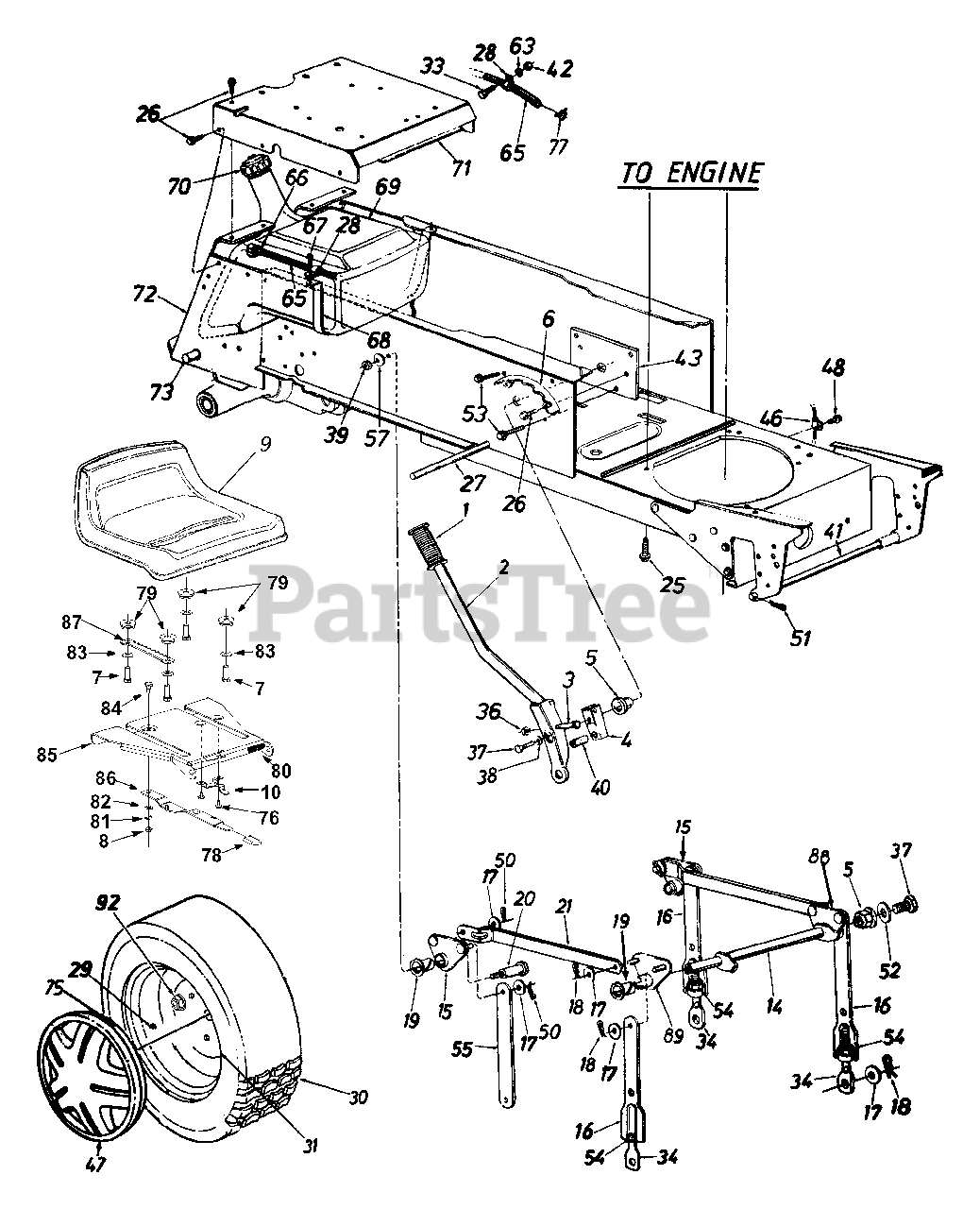

Seat, Fuel Tank, Rear Wheel, Lift Parts Diagram

  • Title

1

White Outdoor 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

White Outdoor 17282

Lift Handle Ass'y.

$

$

Not available

3

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 748-0274A

Lift Shaft Drive

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

6

White Outdoor 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

White Outdoor 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 738-1007

Shoulder Screw 3/8-16 x .50

$

$

Not available

8

White Outdoor 712-3027

Hex Flanged L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 757-0370A

Seat
(Superseded to 957-0370A)

$

$

Not available

10

White Outdoor 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

14

White Outdoor 983-0101

Lift Shaft Ass'y.

$

$

Not available

15

White Outdoor 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

White Outdoor 17303

Adj. Deck Lift Link
(Superseded to 17303-0637)

Variations

White Outdoor 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$16.99

$

In Stock, only 2 left!

0

17

White Outdoor 736-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090"

$4.49

$

In Stock, Qty 16

0

18

White Outdoor 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 1 left!

0

19

White Outdoor 741-0591

Flanged Brg. 5/8" I.D.

$4.49

$

In Stock, Qty 9

0

20

White Outdoor 738-0445

Shld. Bolt 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

White Outdoor 13790

Connecting Link
(Superseded to 13790-0637)

Variations

White Outdoor 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 738-0435

Running Board Rod

$

$

Not available

28

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

29

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 634-0133

Rear Wheel Ass'y. Comp.

Variations

White Outdoor 634-0133-0911

No Longer Available WHEEL ASSY-COMP RN - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0133-0981

No Longer Available WHEEL ASSY-COMP RN - Carlisle Green (0981)

$

$

Not available

$

$

White Outdoor 734-0322

Tire Only

Variations

White Outdoor 734-0322-0901

No Longer Available TIRE-TUBELESS-23 X - Carlisle (0901)

$

$

Not available

White Outdoor 734-0322-0902

No Longer Available TIRE-TUBELESS-23 X - Dico (0902)

$

$

Not available

$

$

31

White Outdoor 634-3178

Rear Wheel Rim Only
(Superseded to 634-04238)

Variations

White Outdoor 634-3178-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

White Outdoor 634-3178-0662

RIM GREY 12 X 7 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

White Outdoor 634-3178-0674

RIM-WHEEL 12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

White Outdoor 634-3178-0688

RIM GREY 12 X 7 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

36

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 15

0

38

UNKNOWN

$

$

Not available

39

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

White Outdoor 738-0777A

Deck Connecting Rod

$37.99

$

Usually ships in 3-6 days

0

42

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

43

White Outdoor 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

White Outdoor 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 726-0273

Mounting Clamp

$7.49

$

In Stock, only 1 left!

0

47

White Outdoor 734-1785A

Hub Cap

$

$

Not available

48

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

White Outdoor 714-0149B

Int. Cotter Pin

$4.49

$

In Stock, Qty 18

0

52

White Outdoor 736-0231

Flat Wash. .34" I.D. x 1.12" O.D.

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0607

Hex Wash. Hd. AB-Tap Scr.

$6.99

$

In Stock, Qty 9

0

54

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 14399

Deck Link
(Superseded to 14399-0637)

Variations

White Outdoor 14399-0637

LINK-DECK - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

57

White Outdoor 736-0219

Bell-Wash. .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

63

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

65

White Outdoor 751-0535-46

Fuel Line 46" Lg.
(Superseded to 751-10349-54)

$53.99

$

Usually ships in 3-6 days

0

66

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 17424

Fuel Tank Strap

$

$

Not available

69

White Outdoor 751-0566

Gas Tank

$

$

Not available

70

White Outdoor 751-0531B

Gas Gauge

$83.99

$

In Stock, only 4 left!

0

71

White Outdoor 683-0108A

Seat Plate
(Superseded to 983-0108A-0637)

$

$

Not available

72

White Outdoor 783-0631

Hitch Plate

Variations

White Outdoor 783-0631-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0631-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0631-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

73

White Outdoor 738-0482

Hitch Rod

$

$

Not available

75

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

76

White Outdoor 710-1268

Hex Wash. Hd. Tap Scr.

$4.49

$

In Stock, Qty 20+

0

77

White Outdoor 726-0272

Hose Clamp

$7.49

$

Usually ships in 3-6 days

0

78

White Outdoor 720-0309A

Seat Adjustable Grip

$9.49

$

Usually ships in 3-6 days

0

79

White Outdoor 731-1989

Spacer

$

$

Not available

80

White Outdoor 732-0499

Compression Spring

$9.49

$

In Stock, only 1 left!

0

81

White Outdoor 736-0175

Spring Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

82

White Outdoor 736-0204

Flat Washer .344" ID

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 736-0192

Flat Washer .531 x .93

$4.49

$

In Stock, Qty 16

0

84

White Outdoor 738-0137A

Shld. Bolt .34" x 1/4-20 Thd.

$10.99

$

In Stock, Qty 10

0

85

White Outdoor 783-0607A

Seat Pivot Brkt.

Variations

White Outdoor 783-0607A-0637

BRACKET SEAT PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

86

White Outdoor 783-0609

Seat Lever

$

$

Not available

87

White Outdoor 783-0753

Seat Selector

$15.99

$

In Stock, only 1 left!

0

88

White Outdoor 683-0097

Lift Pivot Brkt. - L.H.

$

$

Not available

89

White Outdoor 683-0098

Lift Pivot Brkt. - R.H.

$

$

Not available

92

White Outdoor 712-3050

Lug Nut 7/16-14 Thd.

$9.99

$

In Stock, only 2 left!

0
