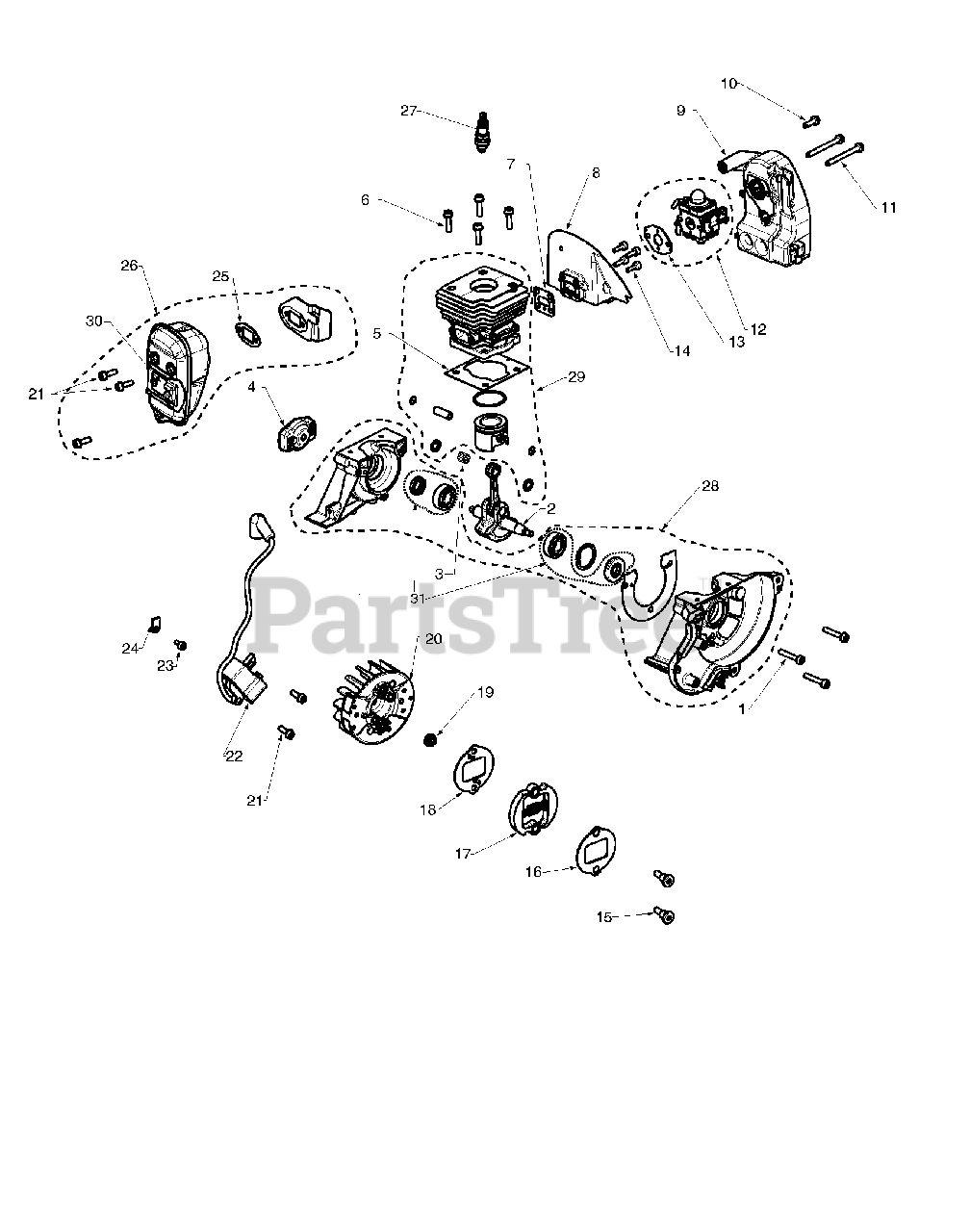

GT 2228 (967302102) - Jonsered String Trimmer (2015-11) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

1

Jonsered 525755103

SCREW

$6.49

$

In Stock, only 4 left!

0

2

Jonsered 522928902

Crankshaft Assembly

$113.99

$

Usually ships in 3-10 days

0

3

Jonsered 578194801

BEARING NEEDLE
(Superseded to 589568901)

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 525845601

Starter Pawl Bridge
(Superseded to 503873305)

$26.99

$

Usually ships in 3-10 days

0

5

Jonsered 579522901

Cylinder Base Gasket

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 525755102

SCREW

$6.49

$

In Stock, only 2 left!

0

7

Jonsered 579622601

GASKET INSULATION WALL

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 579622501

ASSY INSULATION WALL
(Superseded to 579622402)

$10.99

$

Usually ships in 3-10 days

0

9

Jonsered 580985501

ASSY FILTER HOLDER

$9.49

$

Usually ships in 3-10 days

0

10

Jonsered 573925801

SCREW

$6.49

$

In Stock, Qty 6

0

11

Jonsered 573925802

SCREW

$6.49

$

In Stock, only 2 left!

0

12

Jonsered 545008097

Carburetor Kit

$45.99

$

Usually ships in 3-10 days

0

13

Jonsered 530019194

GASKET - CARBURETOR

$6.49

$

In Stock, only 4 left!

0

14

Jonsered 525760906

Screw, ITXSCM

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 525615401

Clutch Screw

$3.99

$

Usually ships in 3-10 days

0

16

Jonsered 525613001

WASHER CLUTCH UPPER

$3.99

$

Usually ships in 3-10 days

0

17

Jonsered 575762202

(Superseded to 575762203)

$28.99

$

Usually ships in 3-10 days

0

18

Jonsered 525612901

WASHER CLUTCH LOWER

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 731711651

FLANGE NUT

$7.49

$

In Stock, only 2 left!

0

20

Jonsered 510088202

Flywheel

$28.99

$

Usually ships in 3-10 days

0

21

Jonsered 525755101

SCREW

$4.99

$

In Stock, Qty 13

0

22

Jonsered 579525402

Ignition Module
(Superseded to 597383401)

$28.99

$

In Stock, only 2 left!

0

23

Jonsered 574182101

SCREW 10-24 TAPTITE

$

$

Not available

24

Jonsered 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

25

Jonsered 580985801

Gasket

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 545008098

Muffler Kit

$51.99

$

Usually ships in 3-10 days

0

27

501522701

$

$

Not available

28

Jonsered 580446632

KIT CRANKCASE ASSY

$102.99

$

Usually ships in 3-10 days

0

29

Jonsered 545008091

Piston and Cylinder Kit

$96.99

$

Usually ships in 3-10 days

0

30

Jonsered 580446603

KIT SPARK ARRESTOR

$4.99

$

Usually ships in 3-10 days

0

31

Jonsered 501856201

Bearing and Seal Kit

$14.99

$

Usually ships in 3-10 days

0
