GT 22 (UT-26052) - Green Machine String Trimmer Ignition - Rotor - Clutch - Isolator Parts Diagram

String Trimmer

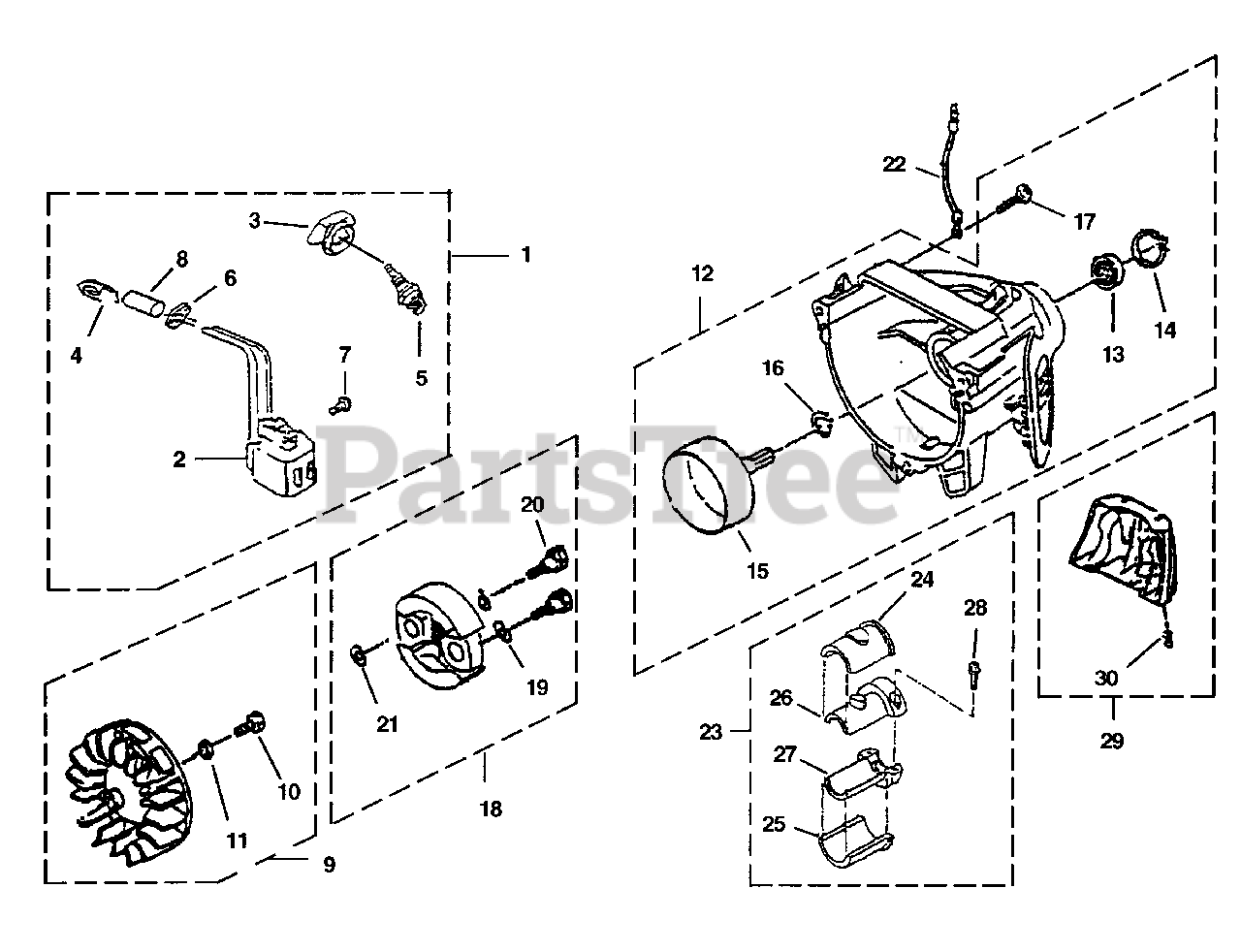

Ignition - Rotor - Clutch - Isolator Parts Diagram

  • Title

1

Homelite UP05117

IGNITION KIT

$

$

Not available

2

Homelite PS00593

MODULE-Ignition

$

$

Not available

3

Homelite PS00856

CAP-Plug

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite PS02691

SPARK PLUG

Note: (Torque Specs 105 - 155 In/Lbs, 11.9 - 17.5 Nm)

$

$

Currently unavailable

6

Homelite PS00595

GROMMET

$

$

Not available

7

Homelite PS00857

SCREW ASSEMBLY (M4 x 20)

Note: (Torque Specs 18 - 26 In/Lbs, 2.0 - 2.9 Nm)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite PS00597

SLEEVE

$

$

Not available

9

Homelite UP00476

ROTOR ASSEMBLY

$

$

Not available

10

Homelite PS00817

BOLT ASSEMBLY (M6 x 16)

Note: (Torque Specs 79 - 95 In/Lbs, 8.9 - 10.7 Nm)

$

$

Not available

11

Homelite PS00816

WASHER

$

$

Not available

12

Homelite UP00477

CLUTCH HOUSING

$

$

Not available

13

Homelite PS00505

BEARING-Ball

$

$

Not available

14

Homelite PS00506

SNAP RING-Inner

$

$

Not available

15

Homelite PS01100

CLUTCH DRUM

$

$

Not available

16

Homelite PS00508

SNAP RING-Outer

$

$

Not available

17

Homelite PS00592

SCREW-Socket Hd (M5 x 20)

Note: (Torque Specs 38 - 42 In/Lbs, 4.3 - 4.7 Nm)

$

$

Not available

18

Homelite UP00475

CLUTCH ASSEMBLY

$

$

Not available

19

Homelite PS00586

WASHER

$

$

Not available

20

Homelite PS00826

BOLT-Clutch (M6 x 25)

Note: (Torque Specs 65 - 87 In/Lbs, 7.3 - 9.8 Nm)

$

$

Not available

21

Homelite PS00588

WASHER

$

$

Not available

22

Homelite PS00608

WIRE

$

$

Currently unavailable

23

Homelite UP00479

DRIVESHAFT ISOLATOR ASSEMBLY

$

$

Not available

24

Homelite PS00598

BRACKET

$

$

Currently unavailable

25

Homelite PS00599

BRACKET

$

$

Currently unavailable

26

Homelite PS00600

ISOLATOR

$

$

Not available

27

Homelite PS00601

ISOLATOR

$

$

Not available

28

Homelite PS00518

SCREW-Socket Hd (M5 x 18 SW)

Note: (Torque Specs 36 - 44 In/Lbs, 4.1 - 5.0 Nm)

$

$

Not available

29

Homelite UP00483

ENGINE STAND

$

$

Not available

30

Homelite PS00802

SCREW ASSEMBLY (M5 X 14)

Note: (Torque Specs 36 - 44 In/Lbs, 4.1 - 5.0 Nm)

$

$

Not available
