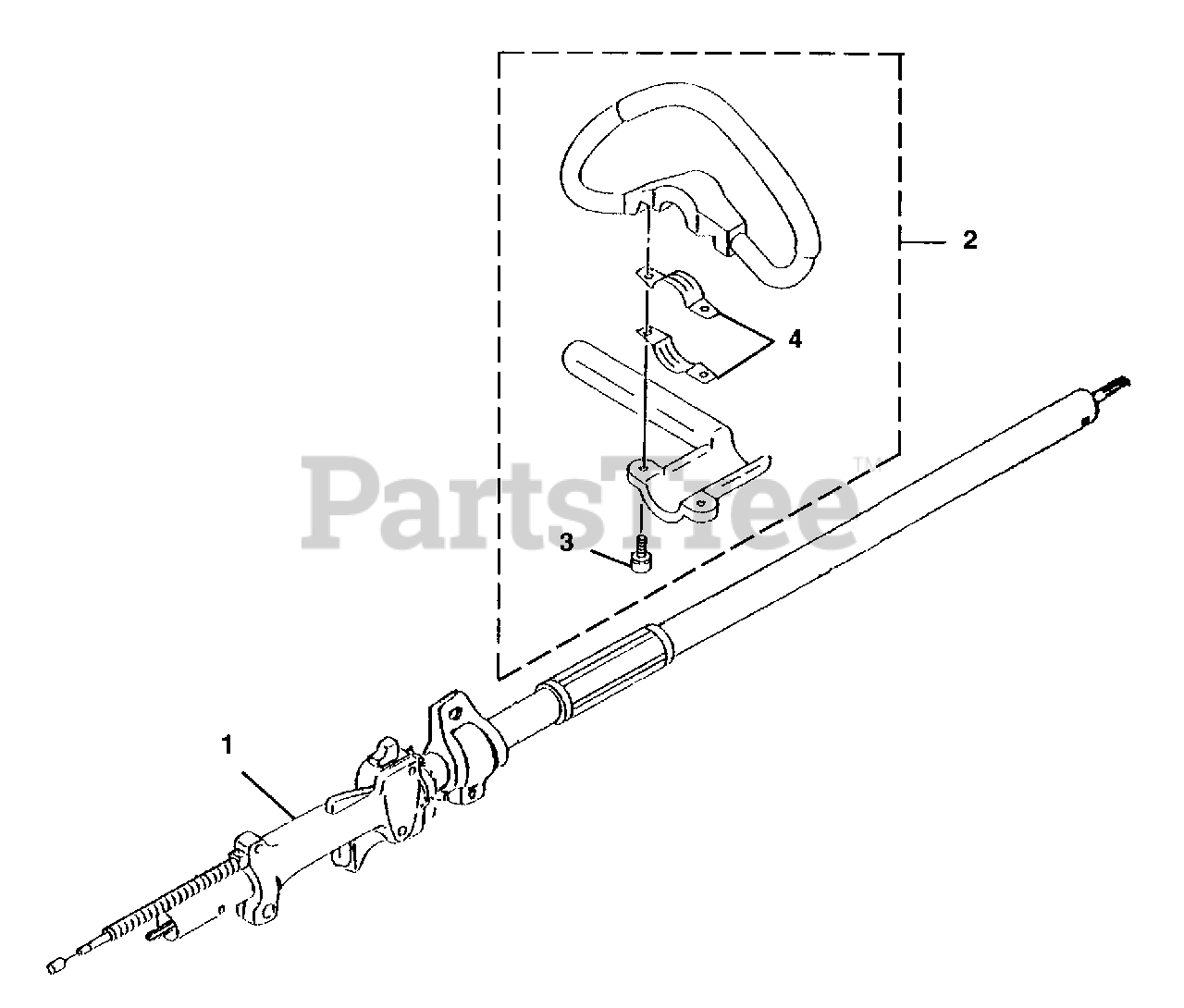

GT 22 (UT-26052) - Green Machine String Trimmer Handle - Throttle Parts Diagram

String Trimmer

Handle - Throttle Parts Diagram

  • Title

1

Homelite UP05120

CONTROL LEVER ASSEMBLY

$

$

Not available

2

Homelite UP00575

HANDLE ASSEMBLY

$

$

Not available

3

Homelite PS00944

BOLT-Socket Head

Note: (Torque Specs 9 -17 In/Lbs, 1.0 - 1.9 Nm)

$

$

Not available

4

Homelite PS00943

CLAMP - Handle Bar

$

$

Not available
