GT 22 (UT-26039) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

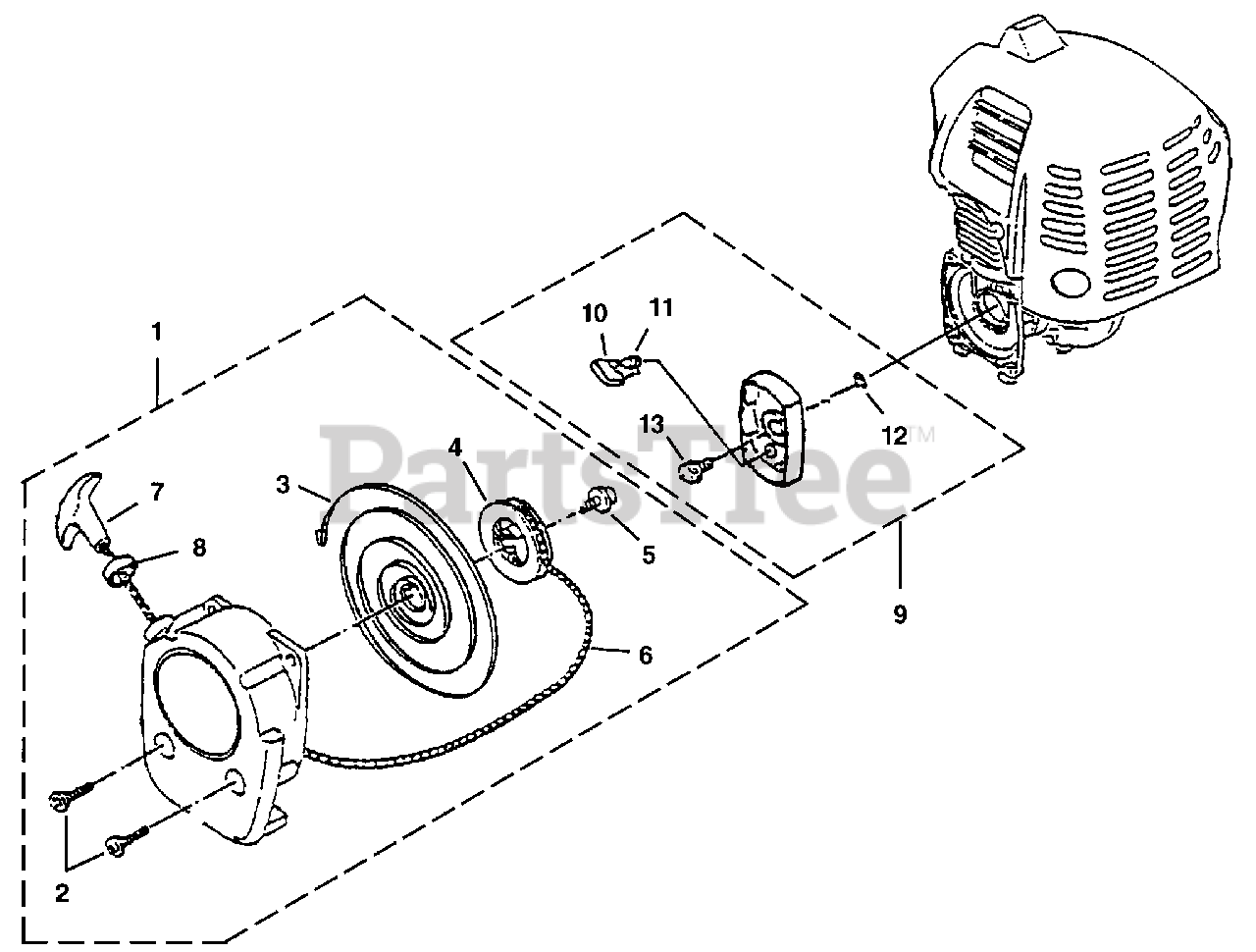

Starter Parts Diagram

  • Title

1

Homelite UP00468

STARTER COMPLETE

$

$

Not available

2

Homelite PS00820

SCREW-Socket Hd (M5 x 30)

Note: (Torque Specs: 26-34 In/Lbs, 2.9-3.8 Nm)

$

$

Not available

3

Homelite PS00565

SPRING

$

$

Not available

4

Homelite PS00566

PULLEY

$

$

Not available

5

Homelite PS00567

SCREW-Set (M5 x 30)

Note: (Torque Specs: 26-34 In/Lbs, 2.9-3.8 Nm)

$

$

Not available

6

Homelite PS00475

ROPE-Starter

$

$

Not available

7

Homelite PS00568

GRIP

$

$

Not available

8

Homelite PS00812

DAMPER-Grip

$

$

Not available

9

Homelite UP00469

STARTER CUP ASSEMBLY

$

$

Not available

10

Homelite PS00712

RATCHET

$

$

Not available

11

Homelite PS00478

SPRING-Return

$

$

Not available

12

Homelite PS00479

E-CLIP

$8.49

$

Usually ships in 3-7 days

0

13

Homelite PS00569

BOLT ASSEMBLY (M6 x 16)

Note: (Torque Specs: 62-78 In/Lbs, 7.0-8.8 Nm)

$2.49

$

Usually ships in 3-7 days

0
