GT 22 (UT-26039) - Green Machine String Trimmer Engine Internal Parts Diagram

String Trimmer

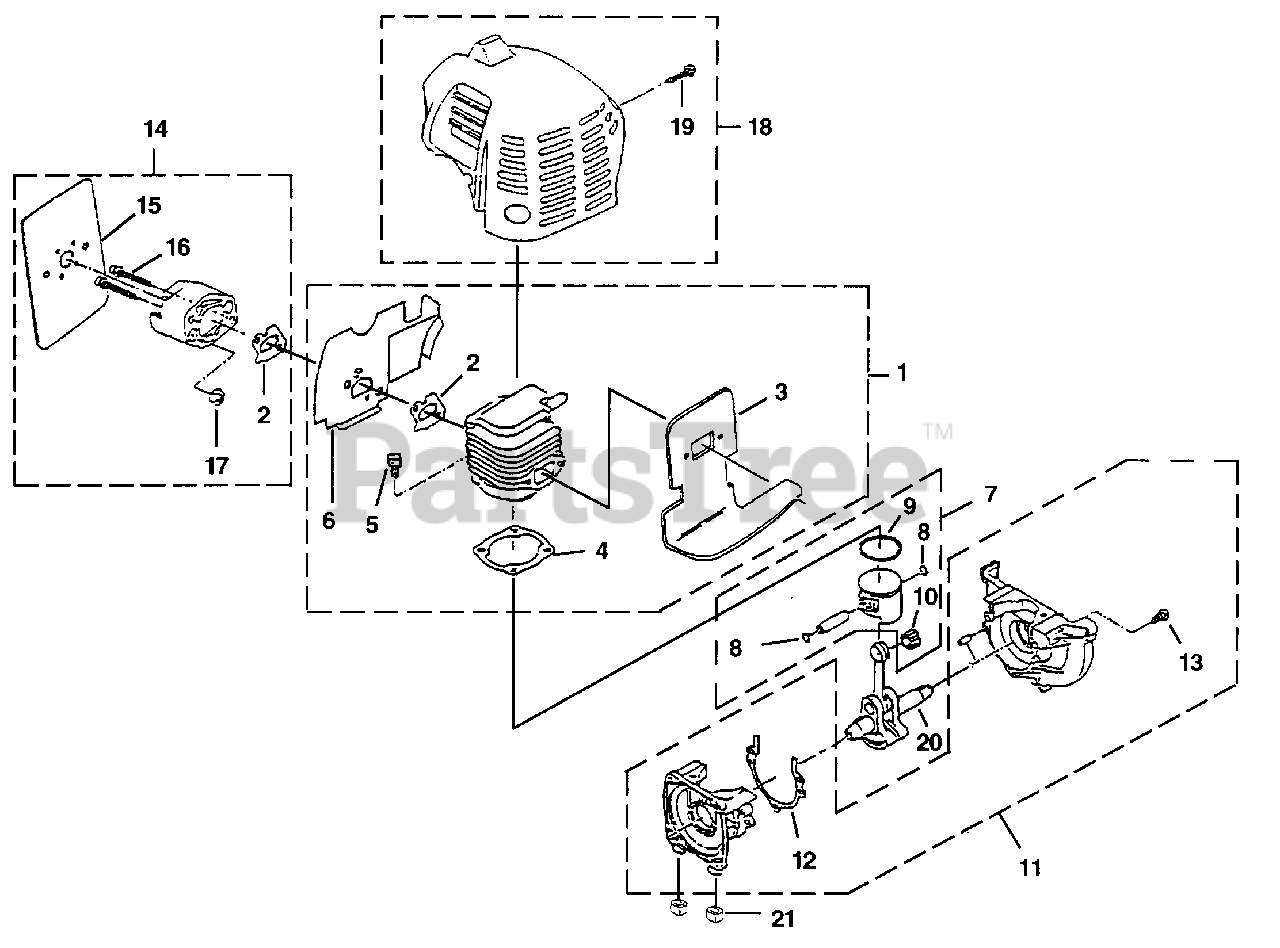

Engine Internal Parts Diagram

  • Title

1

Homelite UP00470

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

3

Homelite PS00572

GASKET-Muffler

$

$

Not available

4

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

5

Homelite PS00840

SCREW-Socket HD (M5 x 20 SW)

Note: (Torque Specs: 61-69 In/Lbs, 6.9-7.8 Nm)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite PS00576

INSULATOR-Carburetor

$

$

Not available

7

Homelite UP00471

PISTON ASSEMBLY

$

$

Not available

8

Homelite PS00843

RING-Retaining

$

$

Not available

9

Homelite PS00842

RING-Piston

$

$

Not available

10

Homelite PS00488

BEARING-Wrist Pin

$

$

Not available

11

Homelite UP00472

CRANKCASE ASSEMBLY

$

$

Currently unavailable

12

Homelite PS00823

GASKET-Crankcase

$

$

Not available

13

Homelite PS00824

SCREW (M5 x 25)

Note: (Torque Specs: 33-37 In/Lbs, 3.7-4.2 Nm)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite UP00473

HEAT DAM ASSEMBLY W/Nuts

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

15

Homelite PS00582

GASKET-Carburetor

$

$

Not available

16

Homelite PS00583

SCREW-Socket Hd (M5 x 20)

Note: (Torque Specs: 33-37 In/Lbs, 3.7-4.2 Nm; Red 262 Loctite Required)

$

$

Not available

17

Homelite PS00494

NUT

$

$

Not available

18

Homelite UP00482

CYLINDER COVER

$

$

Not available

19

Homelite PS00802

SCREW (M5 x 14)

Note: (Torque Specs: 11-15 In/Lbs, 1.2-1.7 Nm)

$

$

Not available

20

Homelite PS00606

CRANKSHAFT

$

$

Not available

21

Homelite UP00481

RUBBER BUMPER KIT

$

$

Not available
