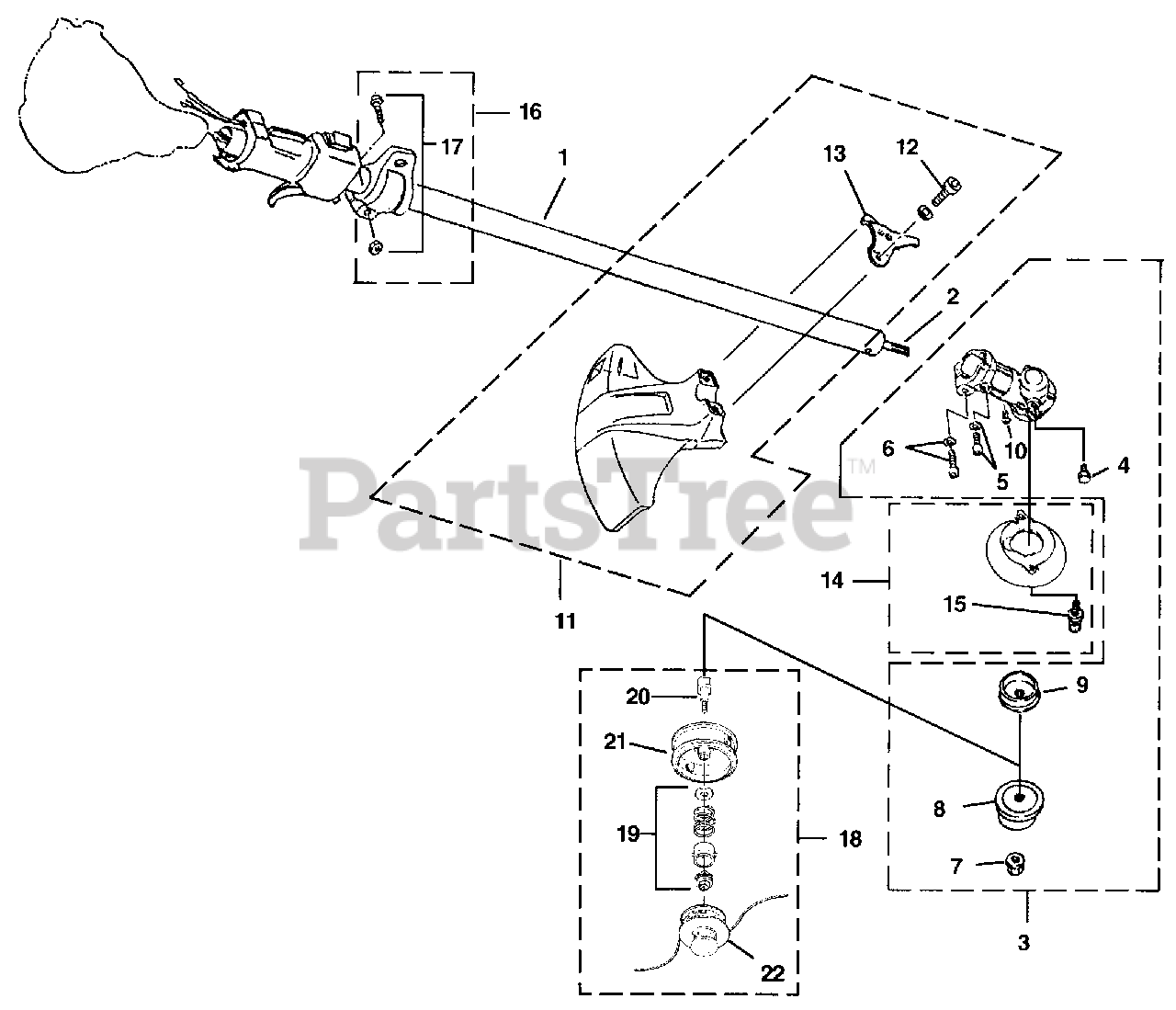

GT 22 (UT-26039) - Green Machine String Trimmer Deflector, Guard, Driveshaft & Stringhead Parts Diagram

String Trimmer

Deflector, Guard, Driveshaft & Stringhead Parts Diagram

  • Title

1

Homelite UP00464

DRIVESHAFT HOUSING

$

$

Not available

2

Homelite PS00551

DRIVESHAFT

$

$

Not available

3

Homelite UP00465

GEAR HEAD

$

$

Not available

4

Homelite PS00552

BOLT-Grease (M8)

Note: (Torque Specs: 39-47 In/Lbs, 4.4-5.3 Nm)

$

$

Not available

5

Homelite PS00554

BOLT (M5 x 12 SW)

Note: (Torque Specs: 44-60 In/Lbs, 5.0-6.8 Nm)

$

$

Not available

6

Homelite PS00553

BOLT (M5 x 25 SW)

Note: (Torque Specs: 44-60 In/Lbs, 5.0-6.8 Nm)

$

$

Not available

7

Homelite PS00452

NUT (M8)

Note: (Torque Specs: 149-165 In/Lbs, 16.8-18.6 Nm)

$

$

Not available

8

Homelite PS00556

WASHER-Cupped

$

$

Not available

9

Homelite PS00555

WASHER-Flange

$

$

Not available

10

Homelite PS00557

SCREW (M5 x 6)

$

$

Not available

11

Homelite UP00438

DEFLECTOR ASSEMBLY (Grass)

$236.99

$

Usually ships in 3-7 days

0

12

Homelite PS00455

BOLT (M6 x 30)

Note: (Torque Specs: 52-68 In/Lbs, 5.9-7.7 Nm)

$

$

Not available

13

Homelite PS00456

CLAMP

$

$

Not available

14

Homelite UP00624

GRASS GUARD

$

$

Not available

15

Homelite PS00559

SCREW-Socket Hd (M5 x 12 W SW)

Note: (Torque Specs: 48-56 In/Lbs, 5.4-6.3 Nm)

$

$

Not available

16

Homelite UP00466

HANGER ASSEMBLY

$

$

Not available

17

Homelite PS00460

SCREW and NUT (M5 x 20)

Note: (Torque Specs: 13-21 In/Lbs, 1.5-2.4 Nm)

$

$

Not available

18

Homelite UP00625

STRINGHEAD ASSEMBLY (.095)

$

$

Not available

19

Homelite A02342

REPAIR KIT

$

$

Not available

20

Homelite 03709

BOLT, Shaft

$

$

Not available

21

Homelite 02341

HOUSING W/Eyelets

$

$

Not available

22

Homelite UP02941

SPOOL & STRING (.095)

$52.99

$

In Stock, only 1 left!

0
