GT-22 GES - Echo String Trimmer (Original Version) Fuel System Parts Diagram

String Trimmer

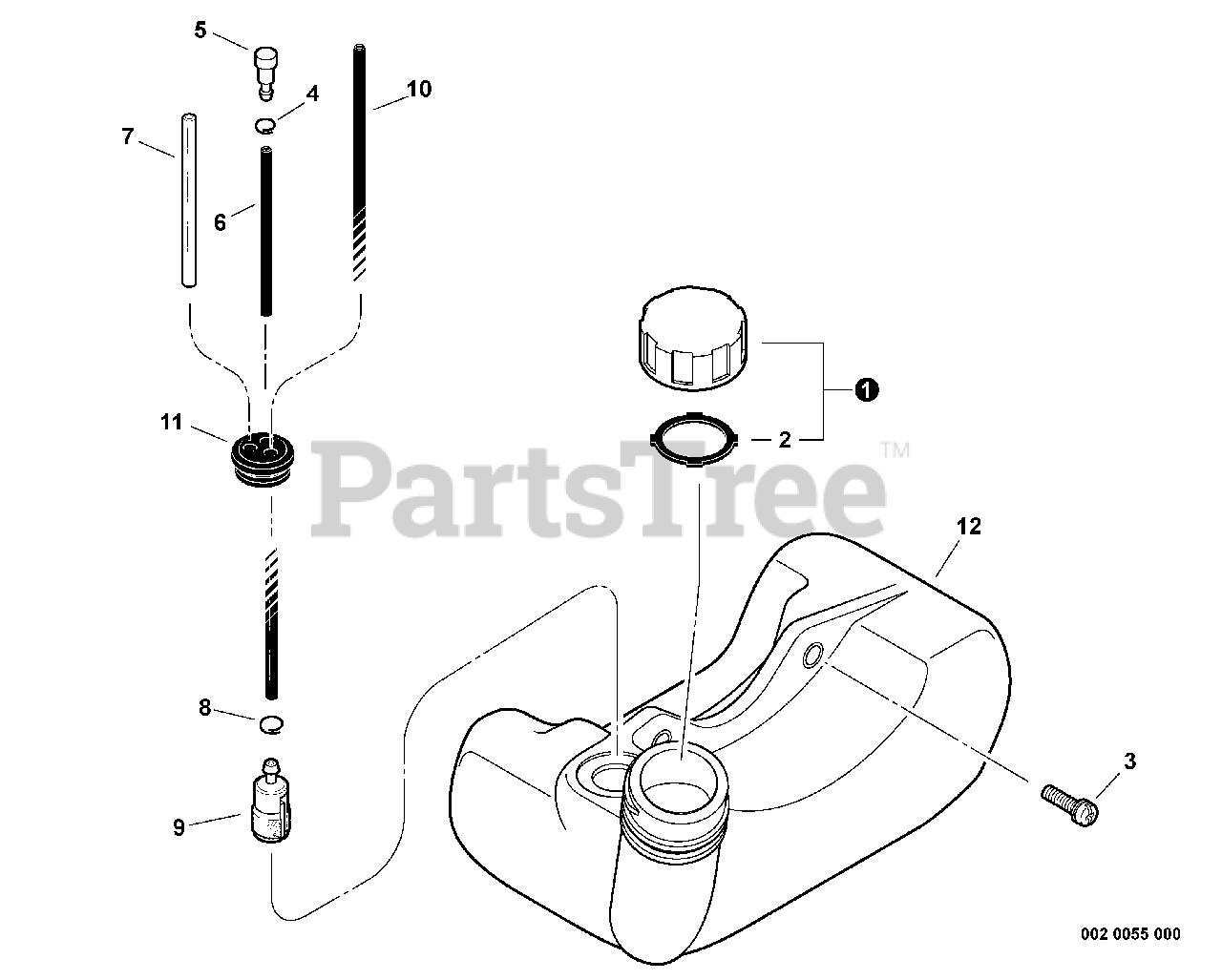

Fuel System Parts Diagram

  • Title
1

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 2

$4.49

$

In Stock, only 1 left!

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

3

Echo 90024305016

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

4

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

5

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 10

0

6

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

7

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

8

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

10

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

11

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

12

Echo A350000032

TANK, FUEL

$25.99

$

Usually ships in 2-4 days

0
