GT 2186-48 (13A-298M712) - Cub Cadet 48" Garden Tractor Hydro Transmission (P/N 618-3231) Parts Diagram

48" Garden Tractor

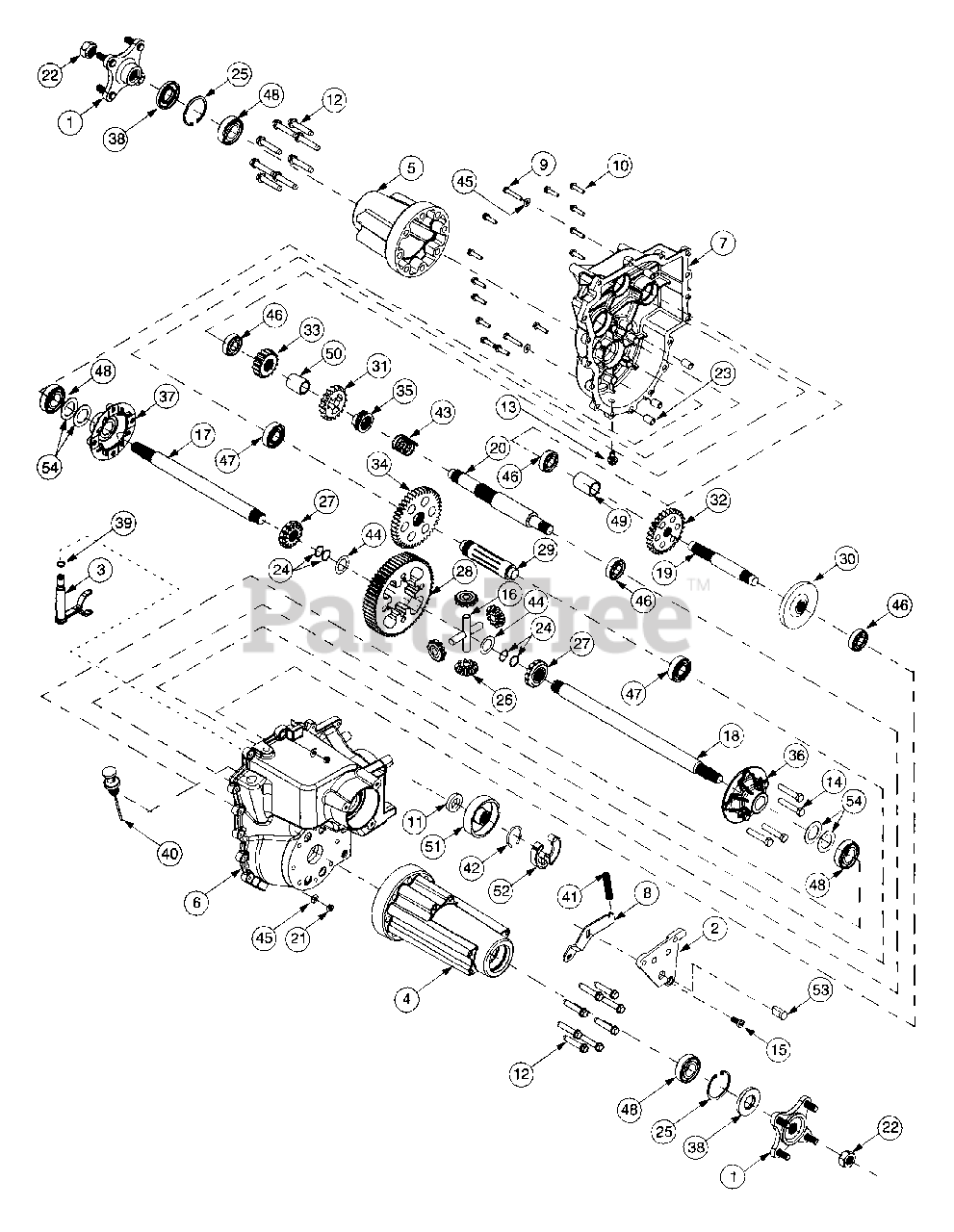

Hydro Transmission (P/N 618-3231) Parts Diagram

  • Title

1

Cub Cadet 618-0579A

Hub Assembly, Wheel
(Superseded to 618P0579B)

$77.99

$

In Stock, only 3 left!

0

2

Cub Cadet 618-3060

Plate Assembly, Brake
(Superseded to 918-3060)

$

$

Not available

3

Cub Cadet 618-3084

Shift Yoke Assembly
(Superseded to 918-3084)

$

$

Not available

4

Cub Cadet 619-0056

Axle Housing, RH

$

$

Not available

5

Cub Cadet 619-0057

Axle Housing, LH

$

$

Not available

6

Cub Cadet 719-3171

Transmission Housing, RH

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey

$70.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 719-3170

Transmission Housing, LH

$250.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2191

Brake Arm

$

$

Not available

9

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5

$5.49

$

In Stock, Qty 10

0

10

Cub Cadet 710-0788

Screw, Hex Wash Hd Tap, 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

11

Cub Cadet 721-3029

Seal, Shift Shaft
(Superseded to 921-3029)

$9.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1008

Screw, TT, 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

13

Cub Cadet 710-1346

Screw, Plug, M14 x 1.5 x .827

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-1670

Screw, Hex Hd Cap, 3/8-24 x 2.0 GR5

$

$

Not available

15

Cub Cadet 710-3262

Screw, Cap, 3/8-16 x .750

$

$

Not available

16

Cub Cadet 711-1052A

Shaft, Cross, .500 x 3.005

$33.99

$

In Stock, only 1 left!

0

17

Cub Cadet 711-1320

Shaft, Axle, 1.00 x 12.90

$

$

Not available

18

Cub Cadet 711-1566

Shaft, Axle, 1.00 x 16.62

$

$

Not available

19

Cub Cadet 711-3374

Shaft, Drive

$

$

Not available

20

Cub Cadet 711-3379A

Shaft, Shifter

$

$

Not available

21

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

22

Cub Cadet 712-1329

Nut, Hex, 3/4-16

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 715-3045

Dowel Bushing
(Superseded to 915-3045)

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 716-0172

Ring, Retaining, .750
(Superseded to 916-0172)

$8.49

$

In Stock, only 3 left!

0

25

Cub Cadet 716-0204

Ring, Retaining,

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 717-1446

Gear, Miter, 10T
(Superseded to 917-1446B)

$16.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 717-1447

Gear, Miter, 14T

$

$

Not available

28

Cub Cadet 717-1568

Gear, Differential Spur, 60T
(Superseded to 917-1568)

$153.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 717-3346

Shaft Output, 9T

$

$

Not available

30

Cub Cadet 717-3347

Gear, Bevel, 36T

$

$

Not available

31

Cub Cadet 717-3387

Gear, Spur, 18T

$

$

Not available

32

Cub Cadet 717-3388

Gear, Spur, 27T

$

$

Not available

33

Cub Cadet 717-3391

Gear, Spur, 16T

$

$

Not available

34

Cub Cadet 717-3392

Gear, Spur, 42T

$

$

Not available

35

Cub Cadet 718-3039

Collar, Drive

$

$

Not available

36

Cub Cadet 719-0375

Housing, Differential, RH

$

$

Not available

37

Cub Cadet 719-0378

Housing, Differential, LH

$

$

Not available

38

Cub Cadet 721-0520

Seal, Oil, 25.4mm x 54mm x 7mm

$

$

Not available

39

Cub Cadet 721-3008

O-Ring, 3/8 1 D x 1/2 OD x 1/16 Thk

$

$

Not available

40

Cub Cadet 727-3085

Dipsick, Oil
(Superseded to 927-3085)

$

$

Not available

41

Cub Cadet 732-0152

Spring, Compression

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 732-3077

Spring, Brake Shoe

$2.99

$

In Stock, only 1 left!

0

43

Cub Cadet 732-3113

Spring, Compression, 1.015 ID x 1.6

$

$

Not available

44

Cub Cadet 736-0423

Washer, Flat, 1.0 x 1.56 x .010 Thk

$

$

Not available

Cub Cadet 736-0431

Washer, Flat, 1.0 x 1.56 x .015 Thk
(Superseded to 936-0431)

$

$

Not available

Cub Cadet 736-0424

Washer, Flat, 1.0 x 1.56 x .020 Thk
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

Cub Cadet 736-0420

Washer, Flat, 1.0 x 1.56 x .040 Thk
(Superseded to 936-0420)

$

$

Not available

Cub Cadet 736-0600

Washer, Flat, .558 x .866 x .078 Thk

$

$

Not available

45

Cub Cadet 736-0463

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, Qty 12

0

46

Cub Cadet 741-0361

Bearing, Ball, 17 ID x 40 OD x 12
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

47

Cub Cadet 741-3057

Bearing, Ball, 6204
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

48

Cub Cadet 741-3114

Bearing, Ball, 6205-1

$26.99

$

In Stock, Qty 20+

0

49

Cub Cadet 750-3133

Spacer, .757 x 1.0 x 1.460

$

$

Not available

50

Cub Cadet 750-3134

Spacer, .885 x 1.125 x 1.40

$

$

Not available

51

Cub Cadet 761-3019

Drum, Brake

$24.99

$

In Stock, only 1 left!

0

52

Cub Cadet 761-3020

Brake, Shoe
(Superseded to 961-3020)

$

$

Not available

53

Cub Cadet 761-3028

Brake, Actuator

$

$

Not available

54

Cub Cadet 736-0745

Washer, Flat, 1.010 x .56 x .060

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 618-3231

Hydro Transmission
(Superseded to 918-3231)

Note: (Transmission Serial Number Begins with the Number 2, 3, or 4)

$

$

Not available
