GT 2186-48 (13A-298M710) - Cub Cadet 48" Garden Tractor Steering Parts Diagram

48" Garden Tractor

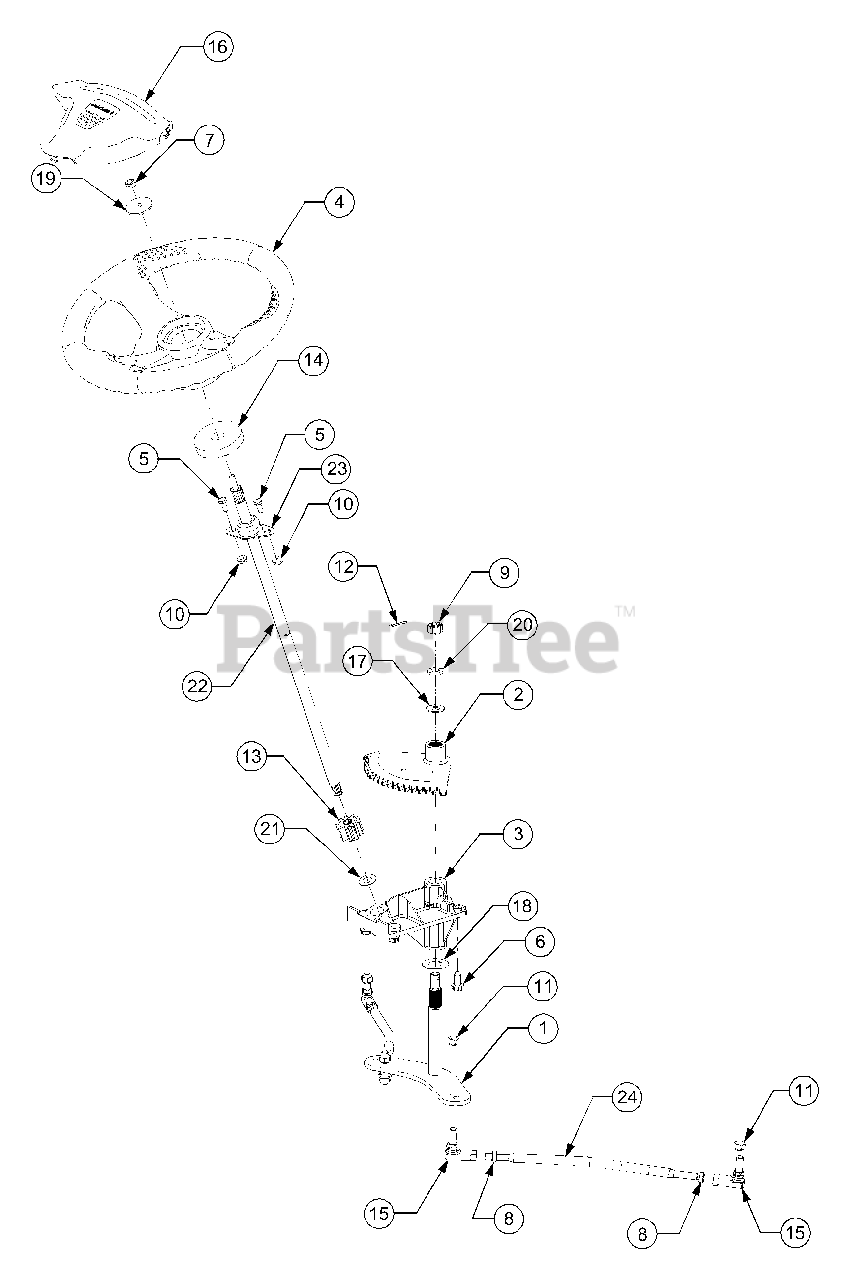

Steering Parts Diagram

  • Title
1

Cub Cadet 603-0064

Arm Assy, Lower Steering

$

$

Not available

2

Cub Cadet 603-0250

Segment Assy, 18T Steering

$131.99

$

In Stock, only 3 left!

0

3

Cub Cadet 619-04079

Housing Assy,
(Superseded to 919-04079)

$

$

Not available

Cub Cadet 737-3000

Fitting, Grease, 3/16 Drive Type
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 748-0108

Bearing, Flange, .503 ID
(Superseded to 948-0108)

$8.99

$

In Stock, Qty 20+

0

Cub Cadet 748-3007A

Bearing, Bronze Flange, .75 ID
(Superseded to 948-3007A)

$15.99

$

In Stock, Qty 10

0

4

Cub Cadet 631-04008

Wheel, Steering, Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-3008

Screw, Hex Cap, 1/4 - 5/16 - 18 x .75, GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16 - 18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-18

$4.99

$

In Stock, only 4 left!

0

8

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24 GR2

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3012

Nut, Hex Slotted, 1/2-20 GR5
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16 - 18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-3004

Pin, Cotter, 3/32 Dia x 1.25

$4.99

$

In Stock, Qty 9

0

13

Cub Cadet 717-04086

Pinion, Steering
(Superseded to 917-04086)

$

$

Not available

14

Cub Cadet 722-3019

Gasket, Steering

$10.99

$

In Stock, only 4 left!

0

15

Cub Cadet 723-0156

Joint, Ball, 3/8-24
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-04532

Cover, Steering Wheel
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0

17

Cub Cadet 736-0272

Washer, Flat, .510 x 1 x .06 Thk

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0351

Washer, Flat, .760 x 1.5 x .03 Thk

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0242

Washer, Flat, Bell

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 736-3013

Washer, Flat, .531 x 1 x .027 Thk

Note: (use if required)

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet 738-04064

Shaft, Steering
(Superseded to 938-04064)

$88.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 741-3025

Bearing, Flange

$

$

Not available

25

$31.99

$

In Stock, only 3 left!

0
