GT 2186-48 (13A-298M710) - Cub Cadet 48" Garden Tractor Fuel System Parts Diagram

48" Garden Tractor

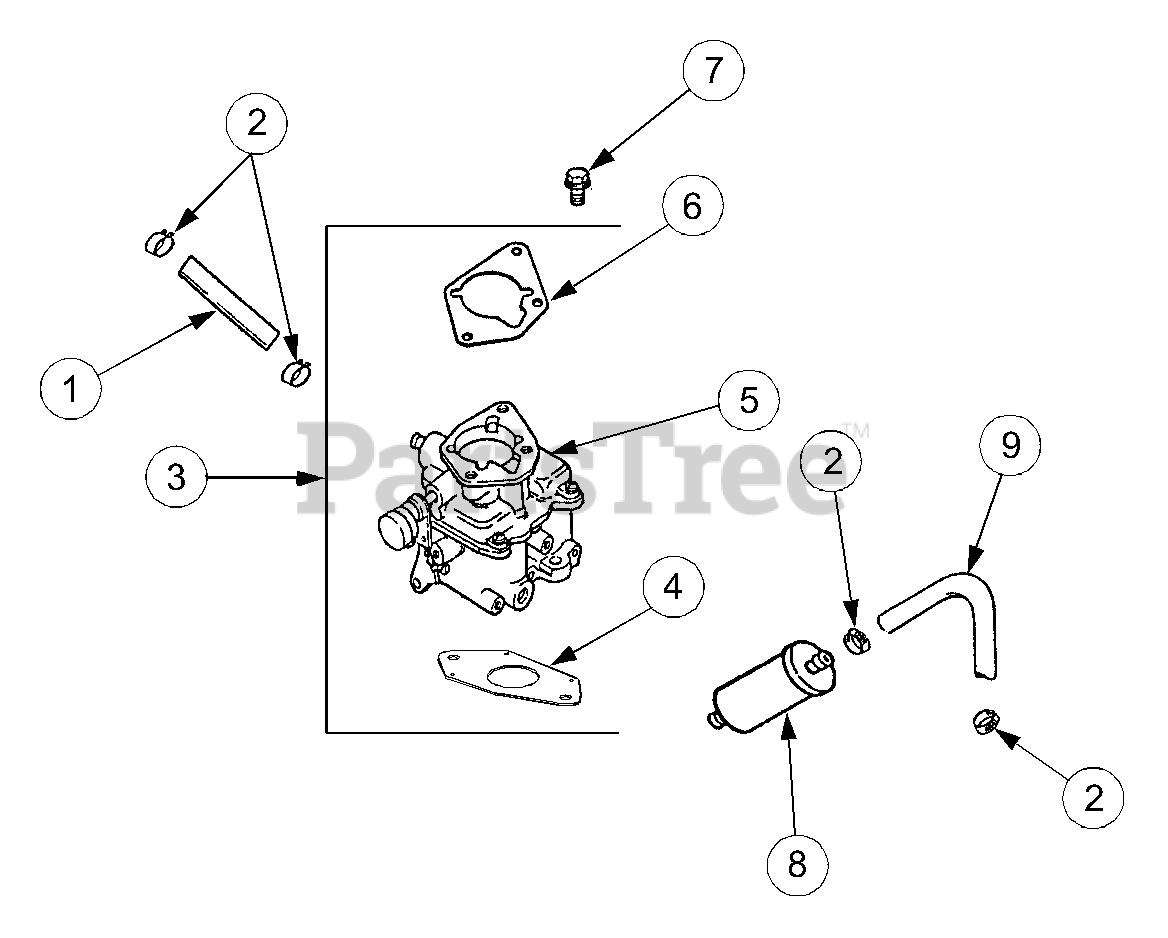

Fuel System Parts Diagram

  • Title
1

Cub Cadet KH-52-353-20

Line, Fuel 10"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-35-S

Kit, Carburetor w/Gasket

Note: (Includes 4-6)

$

$

Currently unavailable

4

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 7

0

5

Carburetor Assembly

Note: Not available separately

$

$

Not available

6

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-M-651025-S

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-25-086-124-S)

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-353-12

Line, Fuel 11"

$

$

Not available

Cub Cadet 723-3066-14

Insulator, Foam Fuel LIne
(Superseded to 723-3066-24)

Note: Not Illustrated

$16.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: Not Illustrated

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: Not Illustrated; Includes Solenoid Screw [qty. 2], O-Ring, O-Ring, O-Ring, Solenoid Assembly & Solenoid Seat.

$

$

Not available

Cub Cadet KH-24-757-02

Kit, Float Repair
(Superseded to KH-24-757-02-S)

Note: Not Illustrated; Includes Carburetor Body Gasket, Float Screw, Float Assembly and Float Shaft.

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03

Kit, Carburetor Repair
(Superseded to KH-24-757-03-S)

Note: Not Illustrated; Includes Carburetor Gasket; Carburetor Body Screw; Idle Needle Spring; U-Ring; Slow Jet O-Ring; Main Jet Screw O-Ring; Solenoid O-Rings; Inlet Needle Valve Clip; Idle Needle and Inlet Needle Valve.

$111.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: Not Illustrated; Includes Choke Plate Screws; Choke Spring; Choke Lever; Choke Shaft; Choke Plate; Choke Bushings; and Choke Lever Cap.

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, High Altitude

Note: Not Illustrated

$55.99

$

Usually ships in 2-5 days

0
