GT 2186-44 (13A-298L712) - Cub Cadet 44" Garden Tractor Drive Line Parts Diagram

44" Garden Tractor

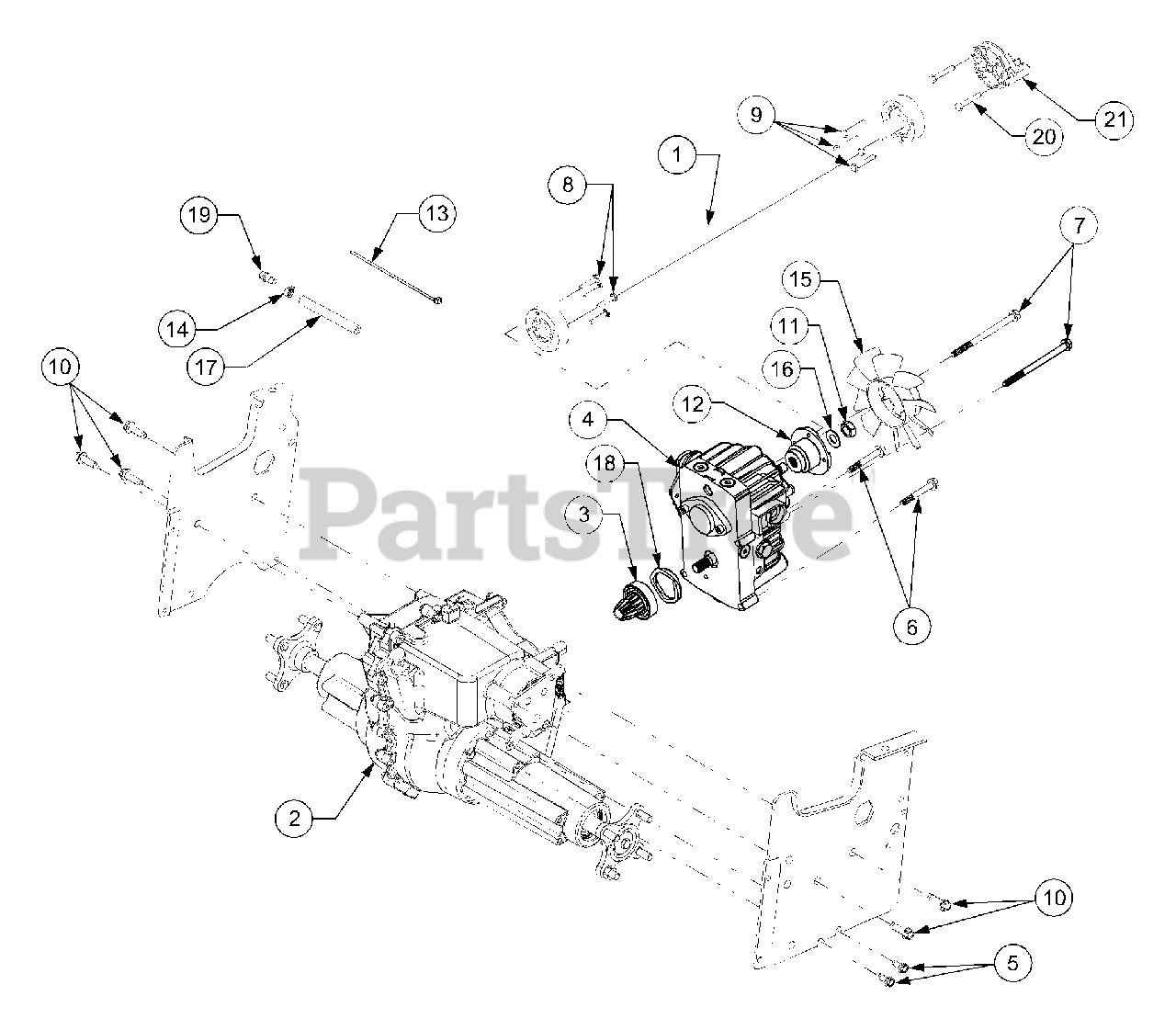

Drive Line Parts Diagram

  • Title
1

Cub Cadet 718-3147

Shaft Assembly, Drive, 28.25 Lg

$

$

Not available

Cub Cadet 759-3764

Kit, Drive Barrel

$27.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-04110

Transmission Assembly,
(Superseded to 918-04110)

Note: Does NOT include wheel hub assemblies and brake spring

$

$

Not available

3

Cub Cadet 618-3088

Pinion Assembly, Input

$189.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-04093

Pump Gasket
(Superseded to 921-04093)

Note: (Not Shown)

$

$

Not available

4

Cub Cadet 618-3243

Pump, Hydrostatic
(Superseded to 918-3243)

$1508.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1260A

Screw, Hex Wsh Tap, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3195

Screw, Hex Cap, 5/16-18 x 4.5 GR5

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1062

Screw, Hex Patch, 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3288

Screw, Hex Patch, 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 710-3290

Screw, Hex Wsh Tap, 3/8-16 x 1.25

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 712-3059

Nut, Hex Top Lock Jam GR5, 1/2-20

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 748-3093

Adapter, Pump

$140.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-3297

Fan, 10 Blade Cooling

$37.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0253

Washer, Bell, 1/2 ID

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 759-3330

Line, Fuel, 7in (10ft Bulk)

$63.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-3099

Washer, Wave, 1.96 x 2.44 x .06
(Superseded to 936-3099)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet KH-24-086-16

Screw, Hex Patch, M10-1.50x 90mm
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 5

0

21

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 1 left!

0
