GT 2186-44 (13A-298L710) - Cub Cadet 44" Garden Tractor Implement Lift Handle Parts Diagram

44" Garden Tractor

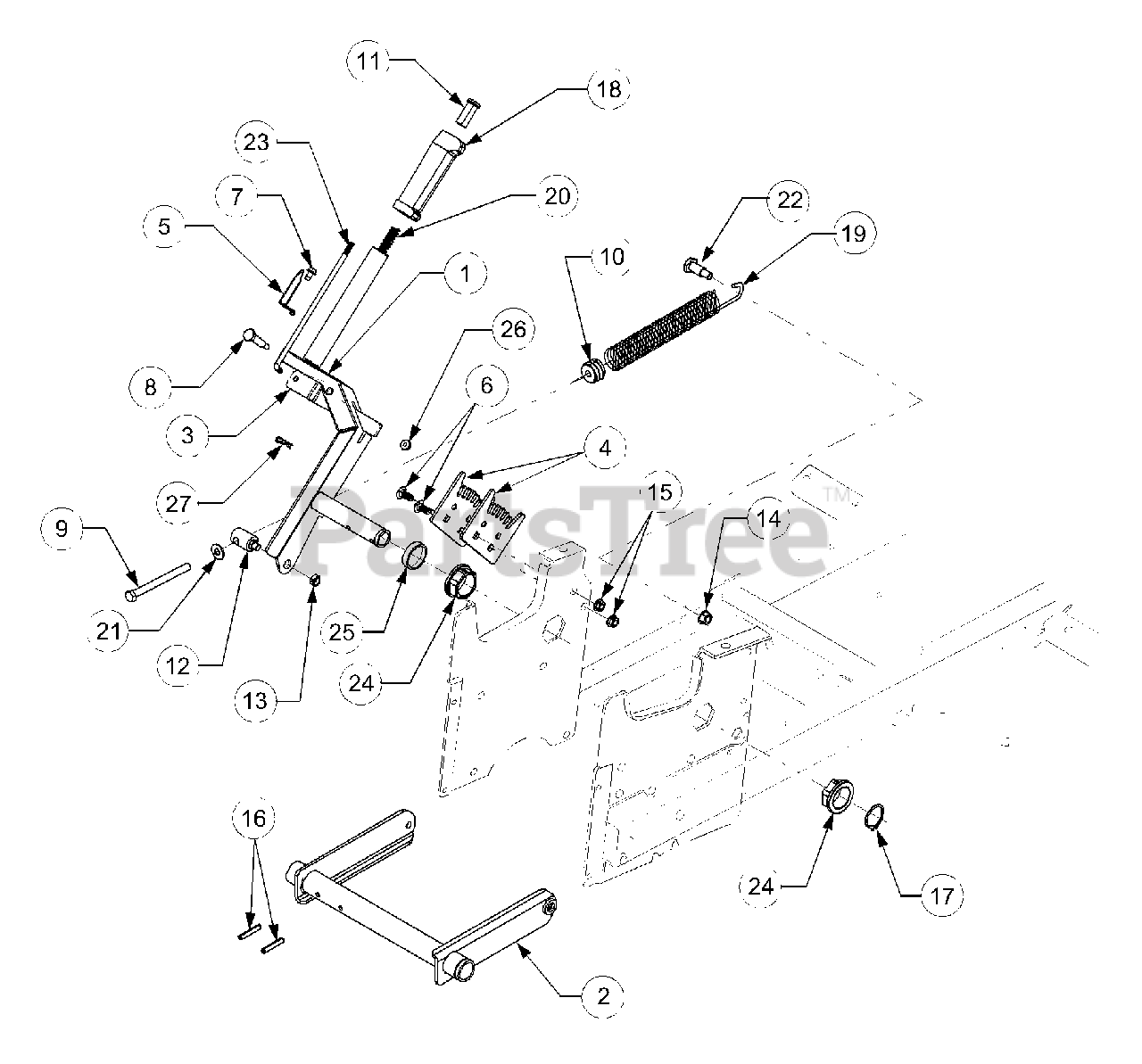

Implement Lift Handle Parts Diagram

  • Title

1

Cub Cadet 603-04141-0637

Handle Assembly, Lift

$171.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-04140A-0637

Shaft Assembly, Lift

$149.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05247-0637

Fork, Lift

$

$

Not available

4

Cub Cadet 703-2239A-0637

Bracket, Lift Index

$12.99

$

In Stock, Qty 9

0

5

Cub Cadet 703-2558

Indicator, Lift Height

$

$

Not available

6

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0599

Screw, Hex Wash Tapp, 1/4 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 938-0560

Screw, Shoulder, .374 x 1.375

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-3279

Screw, Hex Cap, 3/8-16 x 4.25 GR5

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-0635

Insert, Spring

$44.99

$

In Stock, only 1 left!

0

11

Cub Cadet 711-0642A

Button, Handle

$7.99

$

In Stock, Qty 12

0

12

Cub Cadet 711-3350

Ferrule, Adjustment

$

$

Not available

13

Cub Cadet 712-0262

Nut, Hex Center Lock, Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-0431

Nut, Hex Flanged Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3004A

Nut, Hex Flanged Top Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 915-0114

Pin, Spiral Spring, 1/4 Dia x 1.5
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

17

Cub Cadet 716-0116

Ring, Snap, 1.25 Dia Shaft

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-3158

Grip, Lift Handle

$17.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-3093

Spring, Extension

$61.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-3097

Spring, Compression

$14.99

$

In Stock, only 4 left!

0

21

Cub Cadet 936-0267

Washer, Flat, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 938-0145

Bolt, Shoulder

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-3175A

Rod, Index

$

$

Not available

24

Cub Cadet 948-3051

Bearing, Hex Flange, 1.25 ID
(Superseded to 948-3051A)

$26.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-3131

Spacer, 1.28 ID x 1.5 OD x .335 Lg

$

$

Not available

26

Cub Cadet 912-3027

Nut, Hex Flange Lock, 1/4-20

$4.49

$

In Stock, Qty 17

0

27

Cub Cadet 914-0104

Pin, Internal Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0
