GT-2150 (14AJ816H190) - White Outdoor 46" Garden Tractor (2000) 46 Cutting Deck Parts Diagram

46" Garden Tractor

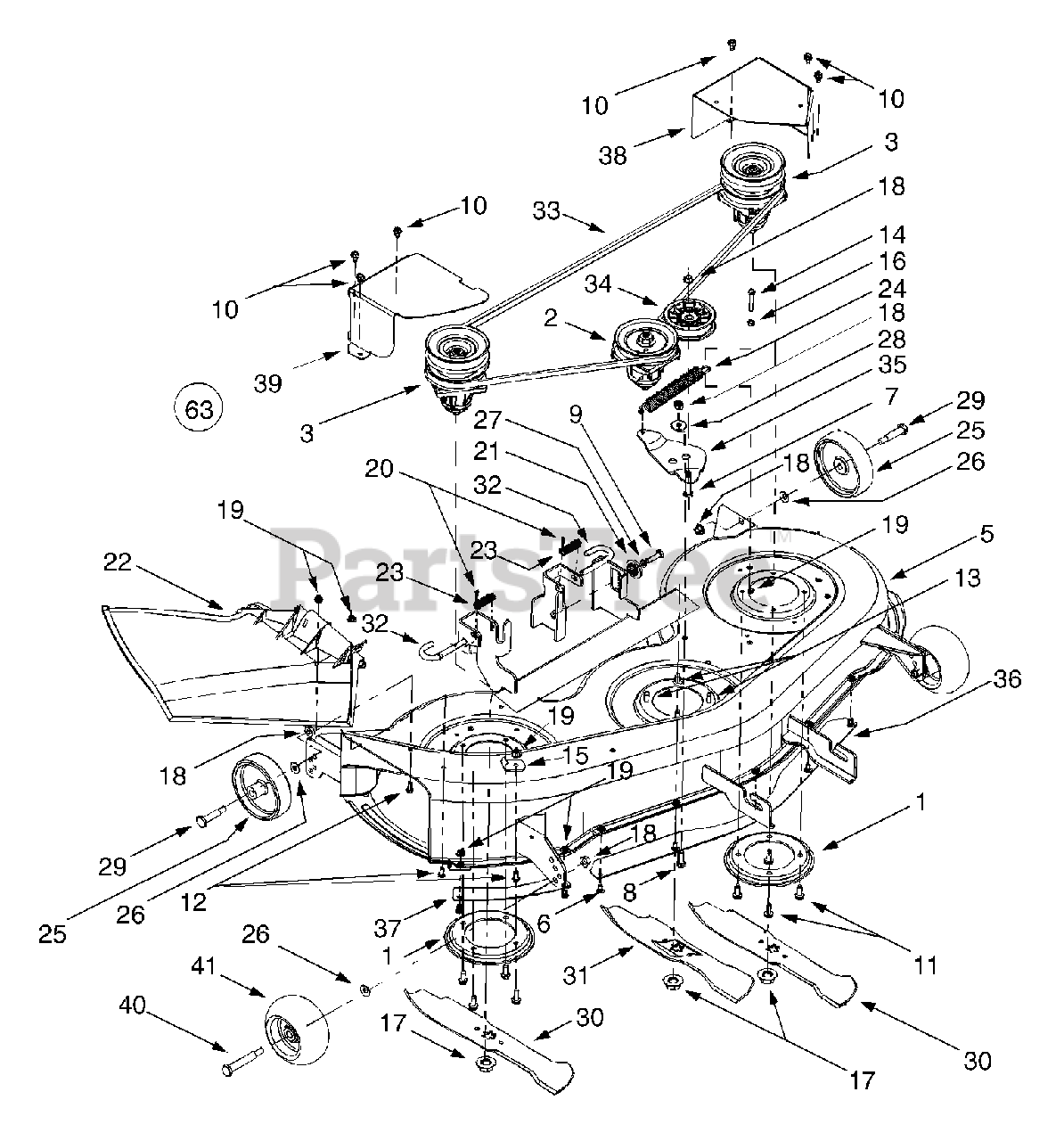

46 Cutting Deck Parts Diagram

  • Title

1

White Outdoor 17982

Reinforcement Spindle Plate
(Superseded to 17982-0637)

Variations

White Outdoor 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

2

White Outdoor 618-0430

Center Spindle Ass'y, 5 Dia. w/ Fitting
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 5

0

3

White Outdoor 618-0431

Double Pulley Spindle Ass'y w/ Fitting
(Superseded to 918-0241B)

$183.99

$

In Stock, only 1 left!

0

5

White Outdoor 683-0199C

46-inch Deck Shell

Variations

White Outdoor 683-0199C-0637

DECK SHELL 46" POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0199C-0650

DECK SHELL-46" - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0199C-0606

DECK SHELL 46" POWDER BLACK - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-0199C-0665

DECK SHELL-46" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0199C-0716

DECK SHELL-46" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

White Outdoor 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0599

Self Tapping Screw,1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0650

Self Tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0106

Hex Cap Screw, 1/4-20 x 1.25
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

16

White Outdoor 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

17

White Outdoor 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

20

White Outdoor 714-0104

Internal Cotter Pin, .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

22

White Outdoor 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

23

White Outdoor 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

24

White Outdoor 732-0594A

Extension Spring, .91 x 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

25

White Outdoor 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

29

White Outdoor 738-0373

Shoulder Spacer, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

30

White Outdoor 742-0611

Three-in-one Blade, Star Center, 16.28
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

31

White Outdoor 742-0612

Three-in-one Blade, Star Center, 14.88
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 15

0

32

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

33

White Outdoor 754-0349

Deck Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

34

White Outdoor 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

35

White Outdoor 783-0139

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

White Outdoor 783-0139-0637

Idler Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

36

White Outdoor 783-0141

Center Deck Skirt

Variations

White Outdoor 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

37

White Outdoor 783-0142

RH Deck Skirt
(Superseded to 783-0142-0637)

Variations

White Outdoor 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

38

White Outdoor 783-0747

LH Belt Cover
(Superseded to 783-0747B)

Variations

White Outdoor 783-0747-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

White Outdoor 783-0747-0691

Belt Cover, LH 46" Black - BLACK JACK (0691)

$58.99

$

In Stock, only 1 left!

0

White Outdoor 783-0747-0650

Belt Cover, LH 46" Red - RED METALLIC (0650)

$58.99

$

In Stock, only 1 left!

0

White Outdoor 783-0747-0665

COVER-BELT LH 46" - YARDMAN GREEN (0665)

$58.99

$

In Stock, only 1 left!

0

$54.99

$

Usually ships in 3-6 days

0

39

White Outdoor 783-0805A

RH Belt Cover
(Superseded to 783-0805C)

Variations

White Outdoor 783-0805A-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0805A-0650

COVER-BELT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0805A-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0805A-0691

COVER-BELT RH - BLACK JACK (0691)

$

$

Not available

$

$

40

White Outdoor 738-3056

Shoulder Screw, .5 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

41

White Outdoor 734-3058B

Deck Wheel, 5
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

63

White Outdoor 753-0875

46-inch Deck Assembly Complete

Variations

White Outdoor 753-0875-0637

KIT-DECK ASSY COMP4 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 753-0875-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 753-0875-0665

KIT-DECK ASSY COMP4 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 753-0875-0691

USE 953-0875-0691 KIT-DECK AS - BLACK JACK (0691)

$

$

Not available

White Outdoor 753-0875-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$
