GT-2150 (14A6816H190) - White Outdoor 46" Garden Tractor (2003) Steering, Front Wheel & Axle Parts Diagram

46" Garden Tractor

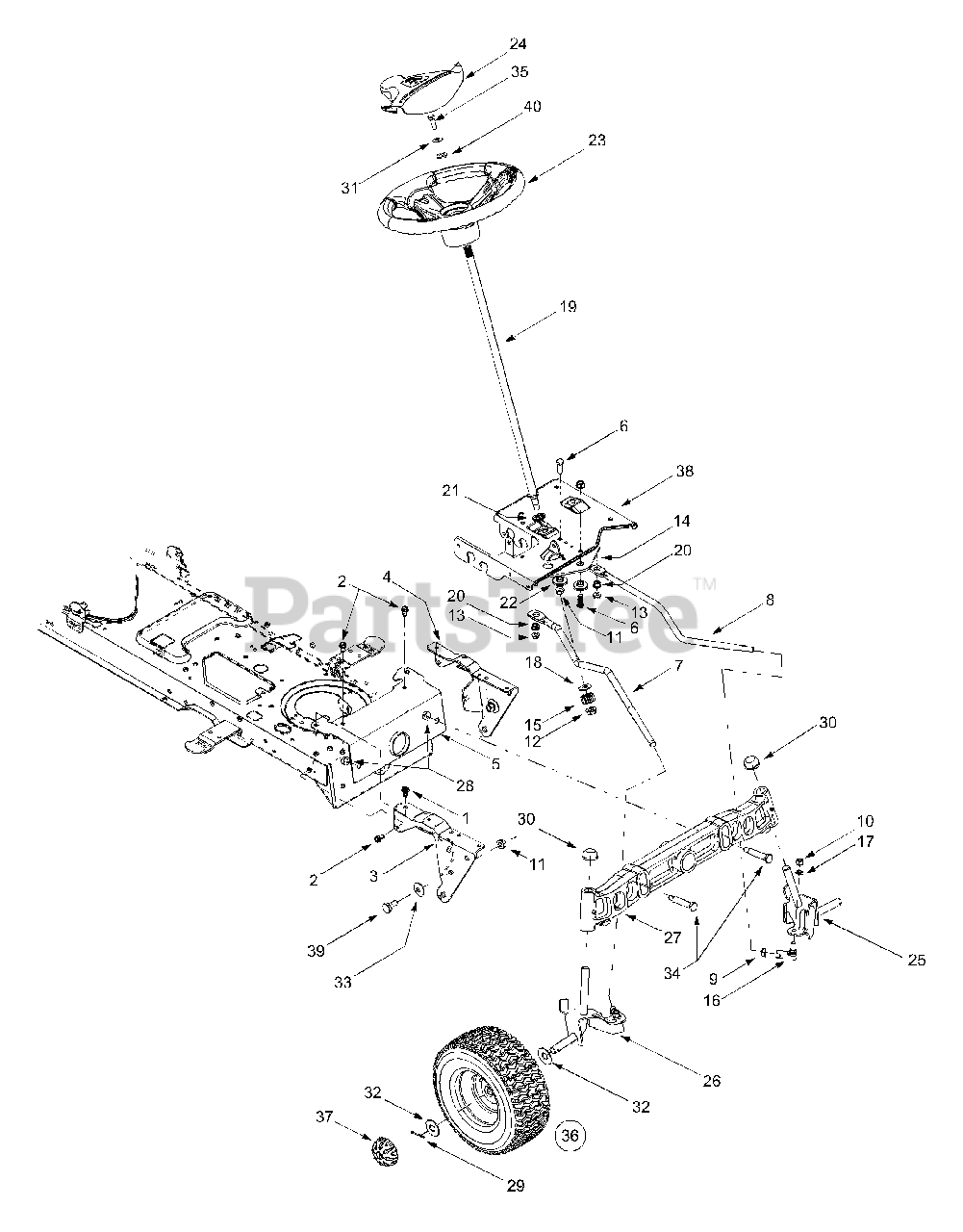

Steering, Front Wheel & Axle Parts Diagram

  • Title

1

White Outdoor 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

White Outdoor 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0726B-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726B-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726B-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0726B-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

White Outdoor 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

White Outdoor 783-0727A-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727A-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727A-0637

USE 783-0727C BRKT:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727A-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

White Outdoor 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

White Outdoor 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-1408

RH Drag Link

$

$

Not available

8

White Outdoor 711-1409A

LH Drag Link

$

$

Not available

9

White Outdoor 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

White Outdoor 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

White Outdoor 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

White Outdoor 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

White Outdoor 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

23

White Outdoor 631-04008

Steering Wheel, Soft Grip, Three Spoke
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

24

White Outdoor 731-04065

Steering Wheel Cover

$

$

Not available

25

White Outdoor 638-0017

LH Axle Assembly, .750 Dia.
(Superseded to 938-0017)

$

$

Not available

26

White Outdoor 638-0018

RH Axle Assembly, .750 Dia.
(Superseded to 938-0018)

$

$

Not available

27

White Outdoor 719-0525B

Cast Iron Pivot Bar w/ Fittings, .750
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

28

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

35

White Outdoor 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 5

0

36

White Outdoor 634-0085

Wheel Assembly Complete, 16 x 6.5 x 8

$

$

Not available

White Outdoor 634-0071

Rim Only

Variations

White Outdoor 634-0071-0674

WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 634-0071-0499

WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0071-0629

WHEEL-RIM - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0071-0662

WHEEL-RIM - OYSTER GRAY (0662)

$

$

Not available

$

$

White Outdoor 734-0255

Air Valve (Not Shown)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 734-1727

Tire Only, Square Shoulder

$56.99

$

Usually ships in 3-6 days

0

White Outdoor 737-0280

Grease Fitting (Not Shown)

$7.99

$

In Stock, Qty 8

0

White Outdoor 741-3032

Ball Bearing (Not Shown)
(Superseded to 941-3032)

$47.99

$

In Stock, only 2 left!

0

37

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

White Outdoor 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0
